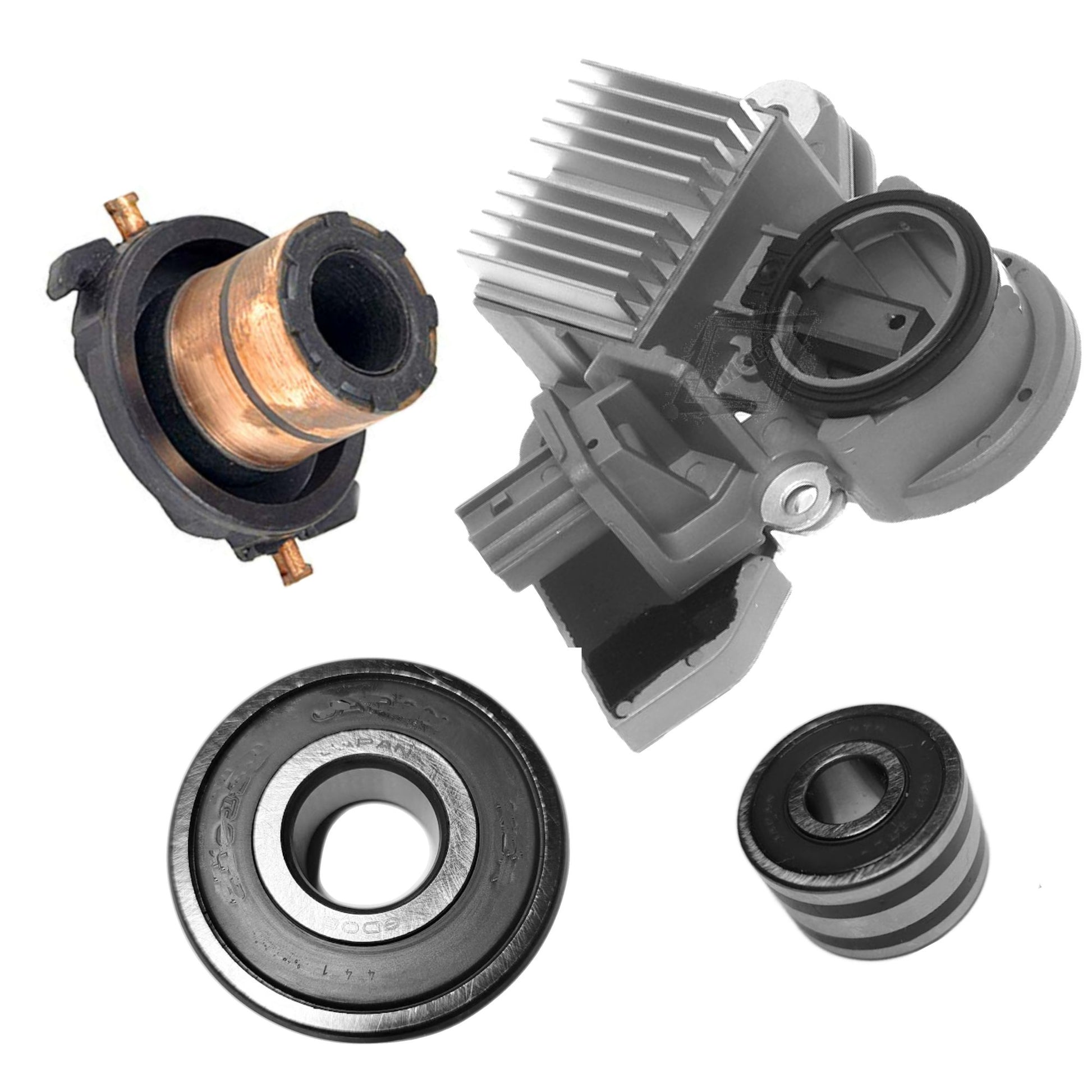

Alternator Rebuild Kit 2013-2015 Acura ILX, 2012-2015 Civic, 2016-2018 HR-V A5TJ0191 - 11537RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Acura:
  ILX (2013-2015 L4 2.0L)
• Honda:
  City (2012-2013 L4 1.5L),
  Civic (2012-2015 L4 1.8L),
  HR-V (2016-2018 L4 1.8L)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Honda OE: 31100-R1A-A01, 31100-R1A-A010, 31100-R1A-A010M2, 31100-R1A-A011-M2, 31100-R1A-A01RM, AHGA81
• Mitsubishi OE: A005TJ0191, A005TJ0191AC, A005TJ0191ZC, A005TJ0191ZE, A5TJ0191, A5TJ0191A, A5TJ0191AC, A5TJ0191AE, A5TJ0191ZC, A5TJ0191ZE (12 Volt, 95 Amp, S6 Pulley)
• Bosch Reman / Service Europe: AL1313X, 0-986-CR6-083, 0-986-UR6-083
• Lester / PIC References: Lester 11537 | PIC 203-5347
• Other Crossovers: Arrowhead AMT0278, Delco Reman Europe DRA1081, DENSO Auto Parts 210-4000, JN 400-48108, 400-48251, Lucas LRA03918, Remy Light Duty 11110, Wilson 90-27-3411, Youtech 338987

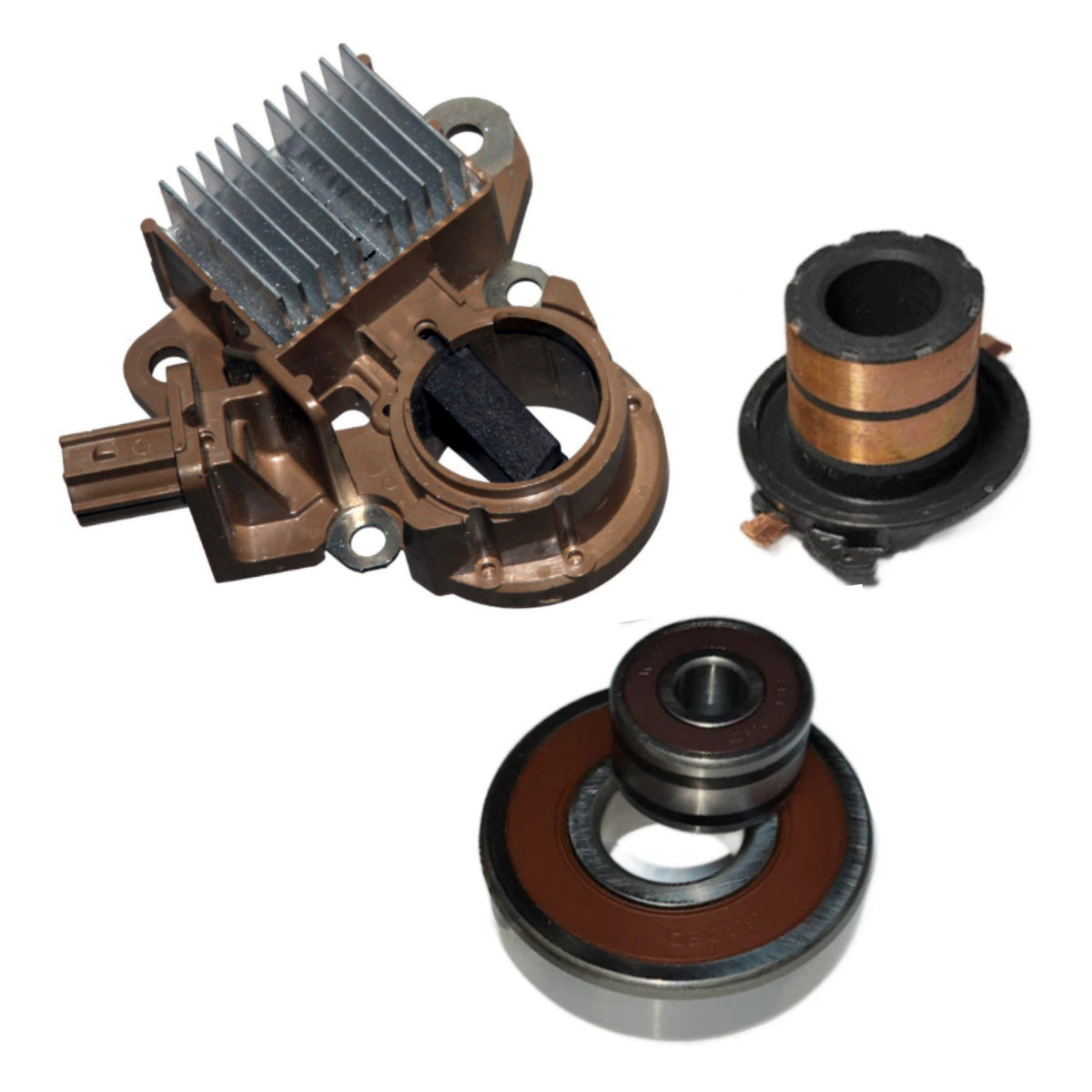

🔧 Component-Specific Technical Data

⚡ Voltage Regulator with Brushes Specs

• Technical Specifications: 12 Volt, A-Circuit, COM LIN (2400-19200 Baud Rate), 14.5V Default Setting (Final voltage determined by PCM)
• Replaces OEM: Honda 31150-R1A-A01 | Mitsubishi 667, A866X66782, 6671404J, 6673X12H, 66757Z14
• Aftermarket Crossovers: IM404, MT-1924, 28673, 196-111, W085-356A, 230-48152, VRH2009-171, 80033052

⚡ Slip Ring Specs

• Dimensions: 13.5mm ID x 22.7mm OD
• Interchange Numbers: W165-10, 193-501, 28-83852

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 6-303-4

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 52312 / SC8A05LHI
• Dimensions: 8mm ID x 23mm OD x 14mm W
• Interchange Numbers: 10-800-4
