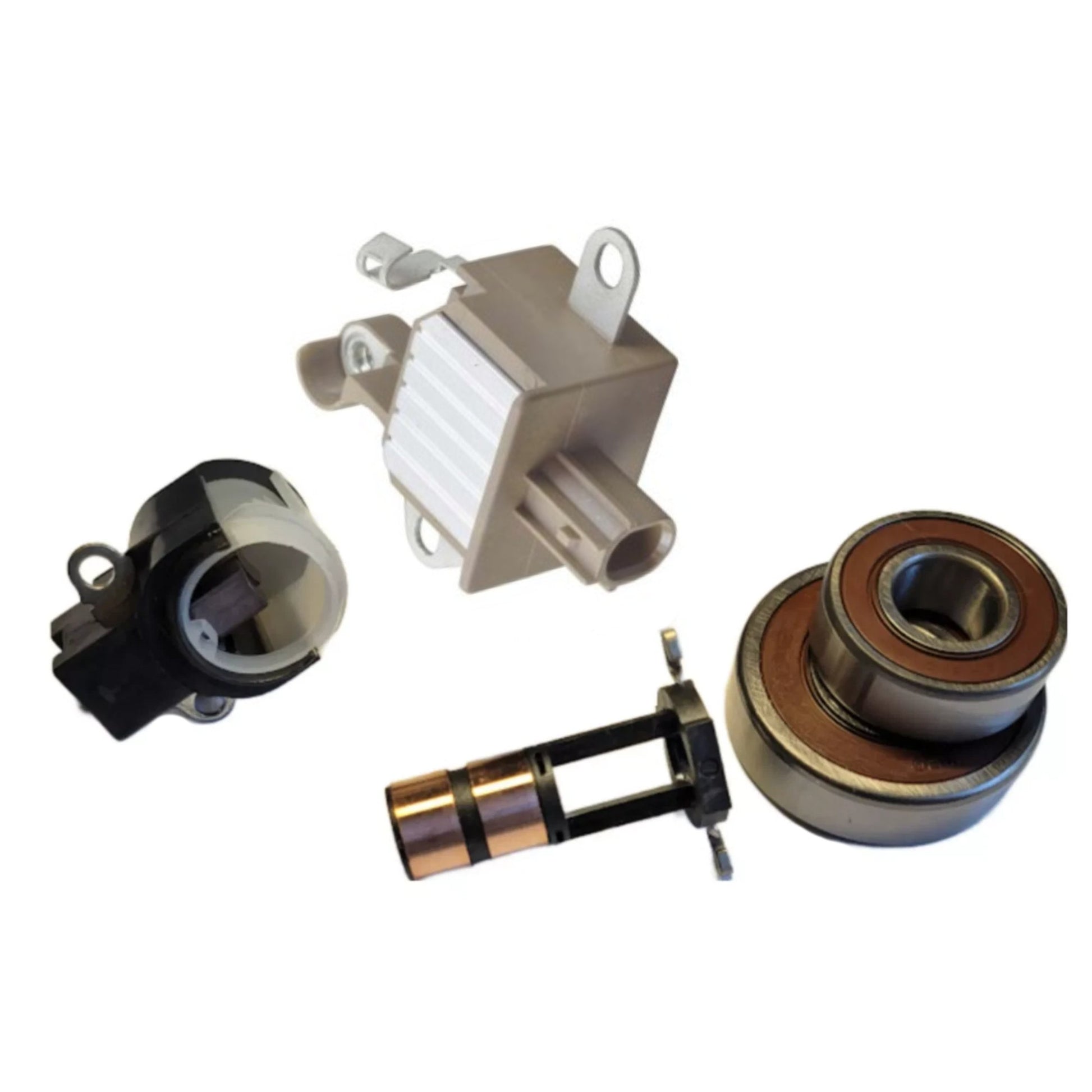

Alternator Rebuild Kit 2013-2015 ILX, 2012-2015 Civic, 2012-2014 CR-V 2.4L - 11604RK-A

Acura ILX L4 2.4L 2354cc 2013-2015
Honda Civic L4 2.4L 2354cc 2012-2015
Honda CR-V L4 2.4L 2354cc 2012-2014

Alternator Manufacturer and Factory #s
Acura 31100-RX0-A01, 31100-RX0-A01RM
Bosch Remanufactured AL1312X
Denso 104210-1530, TN104210-1530
Honda 06311-RX0-505RM, 31100-RX0-A01, 31100-RX0-A01RM, CSJ53
Lester 11604
PIC# 290-5628
J&N    400-52444, 400-52553
Remy Light Duty 11112
Wilson 90-29-5793

• Voltage Regulator - Specifications: 12 Volt, B-Circuit, Single Pin LIN Terminal, 14.5 Voltage Set Point, for Denso Hairpin IR/IF Alternators, LIN (COM) Regulator, COM ID Code: 244 // Denso 126600-3970, Other; GNR-N361, 80904595, W085-355a, 216-094, 230-52170, 1266003970, VRH2005-190 - IN6363

• Slipring 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL // s Denso ... Other  7190-904B, 313-52004, W165-11, W16511, AND3505 - 28-82854

• Bearing 54700 17x47x14mm Ref# 6303-2RS, 949100-1010, 949100-2820 - 6-303-4

• Bearing 53514 15x35x13mm Ref# 279, 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Brush Holder Assembly Ref# 021620-3020, -3030, -3040 - 39-8206
