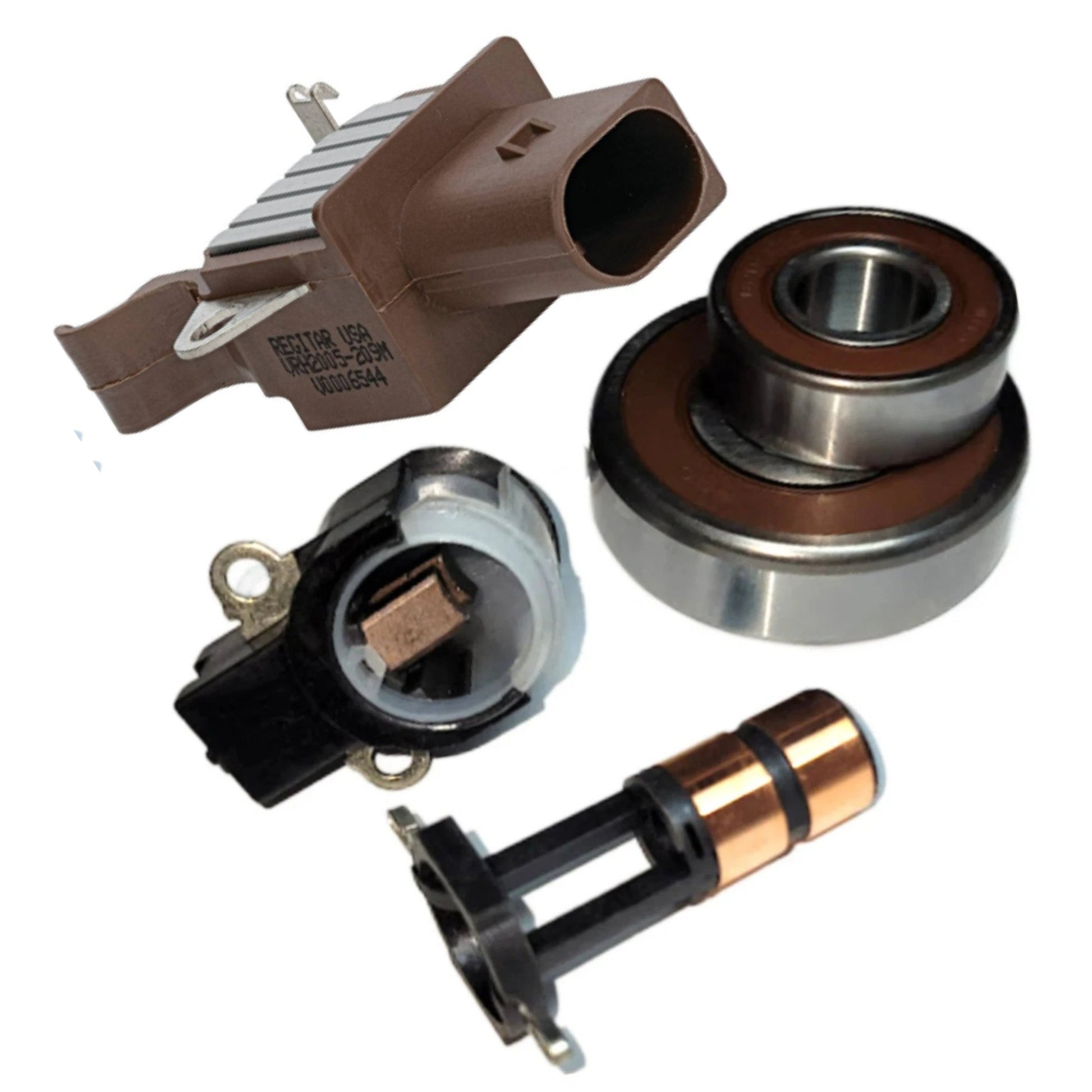

Alternator Rebuild Kit 2013-2016 Ford Escape 1.6L, 2017-2019 Escape 1.5L - 11636RK-A

Ford Escape L4 1.5L 2017-2019 150 Amp
Ford Escape L4 1.6L 2013-2016 150 Amp

Alternator Manufacturer and Factory #s
Bosch Aftermarket    AL7585X
DENSO 104210-233, 104210-2330, TN104210-2330, 210-0869, 210-1242
Ford CJ5T-10300-BB, CJ5Z-10346-D, CJ5T10300BB, CJ5Z10346D,
Lester 11636
Motorcraft GL-8672, GL8672
Pic # 290-6320
Wilson 90-29-5844
JN 400-52436R
Remy Light Duty    23025

• Voltage Regulator - Specifications: 12 Volt, B-Circuit, High Side Drive Regulator, LIN Terminals, 10.6 - 16.4 V, for Denso Hairpin IR/IF Alternators on Ford, LIN Terminal Function, Field Rating 5 Amps, Voltage Set point and Regulation Mode is controlled by Vehicle, Stator Activated // Replaces Denso 126600-4110, 4110, 126600-4310, 4310, FAPQ 4310, GC8 4110, Other W085-387, 216-098, GNR-N321, GNR-N089, VRH2005-209M, 230-52207 - IN6370

• SRE Rotor Bearing 15x35x13mm 279, Replacing 949100-2790, 949100-3980, 949100-4440, 53514 - 10-2021-4W

• Drive End Bearing 17x47x14mm 6303-2RS, Replacing 949100-1010, 949100-2820, 54700 - 6-303-4W

• Brush Holder Assembly with Brushes, Replacing 021620-3030 - 39-8206

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854
