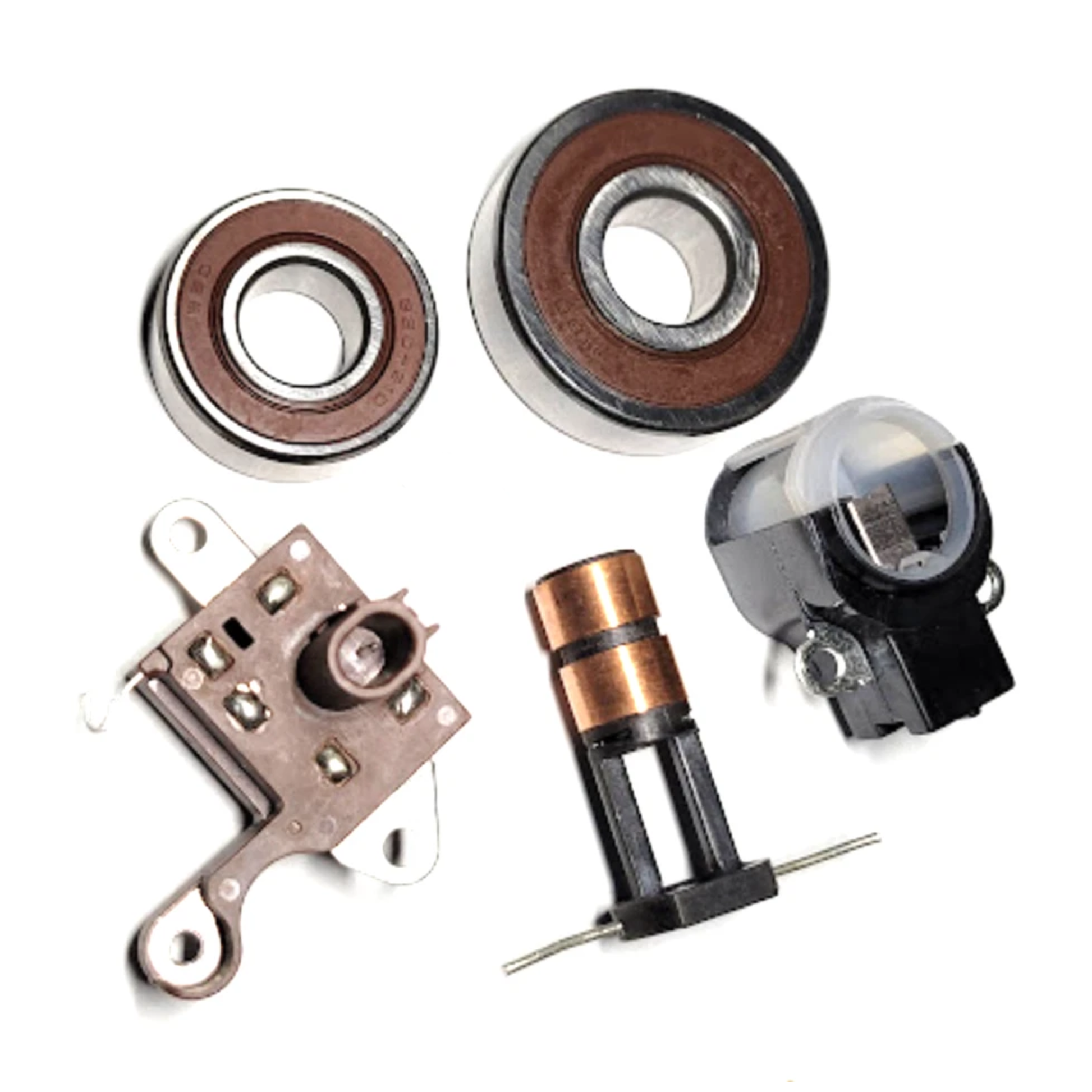

Alternator Rebuild Kit 2013-2017 Accord 3.5, 2015-2020 Acura TLX, 2016-2018 RDX - 11670RK-A

Need to rebuild your vehicle's alternator? This premium replacement rebuild kit's components are engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚙 Vehicle Application Details

• Acura RDX: V6 3.5L (2016-2018)
• Acura TLX: V6 3.5L (Engine Code: J35Y6) (2015-2020)
• Honda Crosstour: V6 3.5L 3471cc (2013-2015)
• Honda Accord: V6 3.5L (Engine Code: J35Y1) Automatic Transmission (2013-2014)
• Honda Accord: V6 3.5L (Engine Codes: J35Y1; J35Y2) Automatic Transmission (2015-2017)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Acura OE: 31100-5J2-A51, 31100-5J2-A51RM, 06311-R53-505RM, 31100-R53-A01, 31100-R53-A01RM
• Honda OE: 31100-5J2-A51, CSK76, 31100-R53-A01, 31100-R53-A01RM, CSK39, 06311-5G0-505RM, 31100-5G0-A02, 31100-5G0-A02RM, CSK30 6T
• Denso: 104211-876, 104211-8760, TN104211-8760, 104211-8390, 104211-8300, TN104211-8300
• Bosch Reman: AL1318X
• MFR Series - Family Type: HAIRPIN
• Remy Light Duty: 11160
• Wilson: 90-29-5837
• JN: 400-52522
• Lester / PIC References: 290-3598, 290-6315, 290-6314 | Old: 920-3598

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 1 PIN, B-Circuit, LIN 2.0, 13.8 Voltage Set, LIN-5 4/19200
• Replaces OEM: Denso 126600-4180, 4180, GC8 4180
• Aftermarket Crossovers: IN4180, ND-1242, W085-376, 230-52198, VRH2005-203, 80904648, GNR-N371, 216-086

⚡ Slip Ring Specs

• Design: For Denso Alternators
• Dimensions: 5.8mm ID x 14.3mm OD x 11mm LL
• Interchange Numbers: 7190-904B, 313-52004, W165-11, W16511, AND3505, 28-82854

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 949100-1010, 949100-2820, 6-303-4

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514 / 279
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 949100-2790, 949100-3980, 949100-4440, 10-2021-4W

⚡ Brush Holder Assembly Specs

• Interchange Numbers: 021620-3020, 021620-3030, 021620-3040, 39-8206

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
