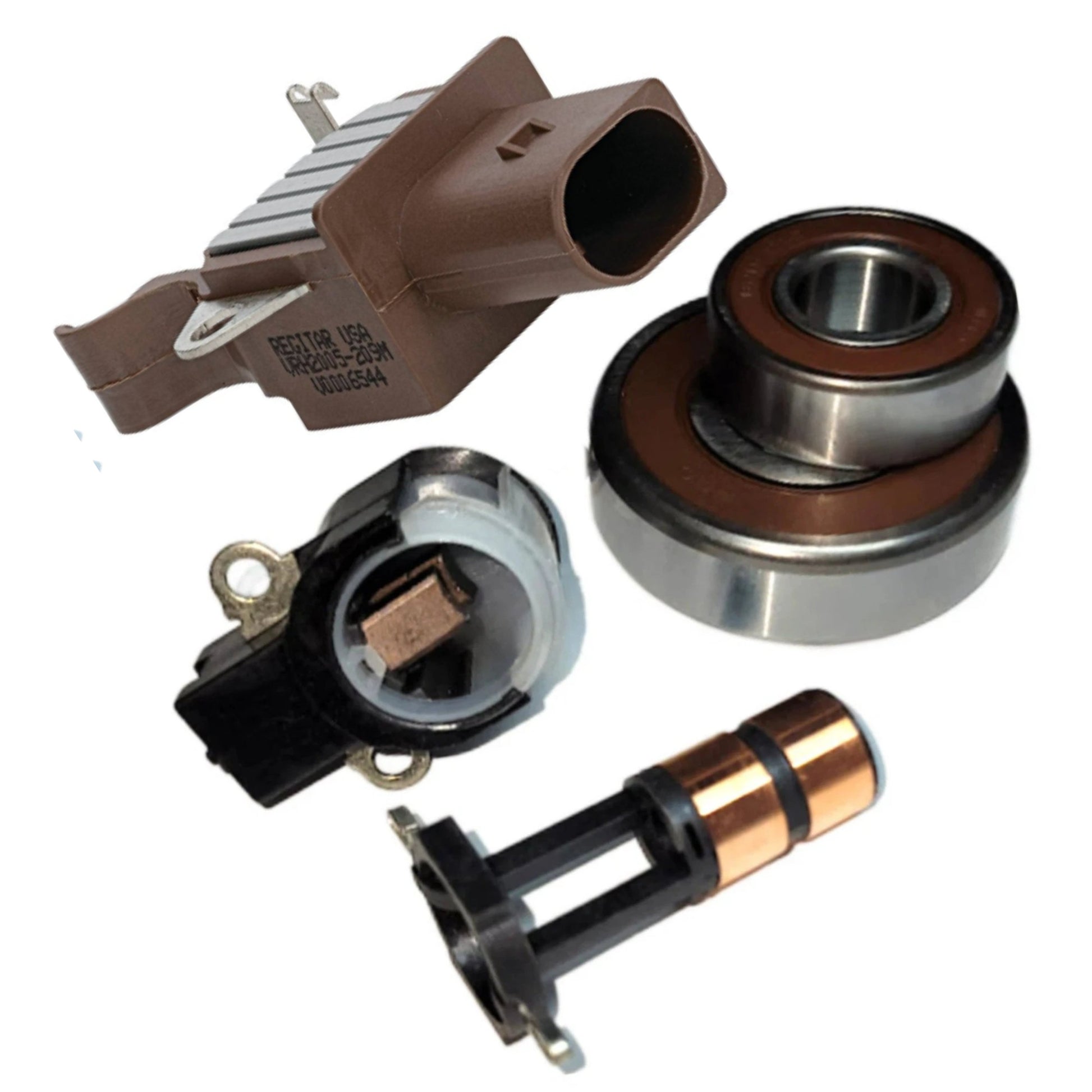

Alternator Rebuild Kit 2013-2019 Escape 1.5L 1.6L, 2014-2016 Transit Connect 1.6L - 12884RK-A

Ford Escape L4 1.5L 1499CC 2017-2019 175 Amp
Ford Escape L4 1.6L 1596CC 2013-2016 175 Amp
Ford Transit Connect L4 1.6L 1596CC 2014-2016 175 Amp

Alternator Manufacturer and Factory #s
Bosch Aftermarket AL7683X (Reman)
DENSO 104210-654, 104210-6540, 104210-6541, TN1042-106541, 210-0604, 210-1098
Ford CJ5T-10300-DB, CJ5T-10300-GA, CJ5Z-10346-A, CJ5Z-10346-F
Lester 12884
Motorcraft GL-8667, GL-8785

• Voltage Regulator - Specifications: 12 Volt, B-Circuit, High Side Drive Regulator, LIN Terminals, 10.6 - 16.4 V, for Denso Hairpin IR/IF Alternators on Ford, LIN Terminal Function, Field Rating 5 Amps, Voltage Set point and Regulation Mode is controlled by Vehicle, Stator Activated // Replaces Denso 126600-4110, 4110, 126600-4310, 4310, FAPQ 4310, GC8 4110, Other W085-387, 216-098, GNR-N321, GNR-N089, VRH2005-209M, 230-52207 - IN6370

• SRE Rotor Bearing 15x35x13mm 279, Ref# 949100-2790, 949100-3980, 949100-4440, 53514 - 10-2021-4W

• Drive End Bearing 17x52x16mm Ref# 949100-3330, 949100-4370, 949100-5010, 55222 - 10-3042-4W

• Brush Holder Assembly with Brushes, Replacing 021620-3030 - 39-8206

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854
