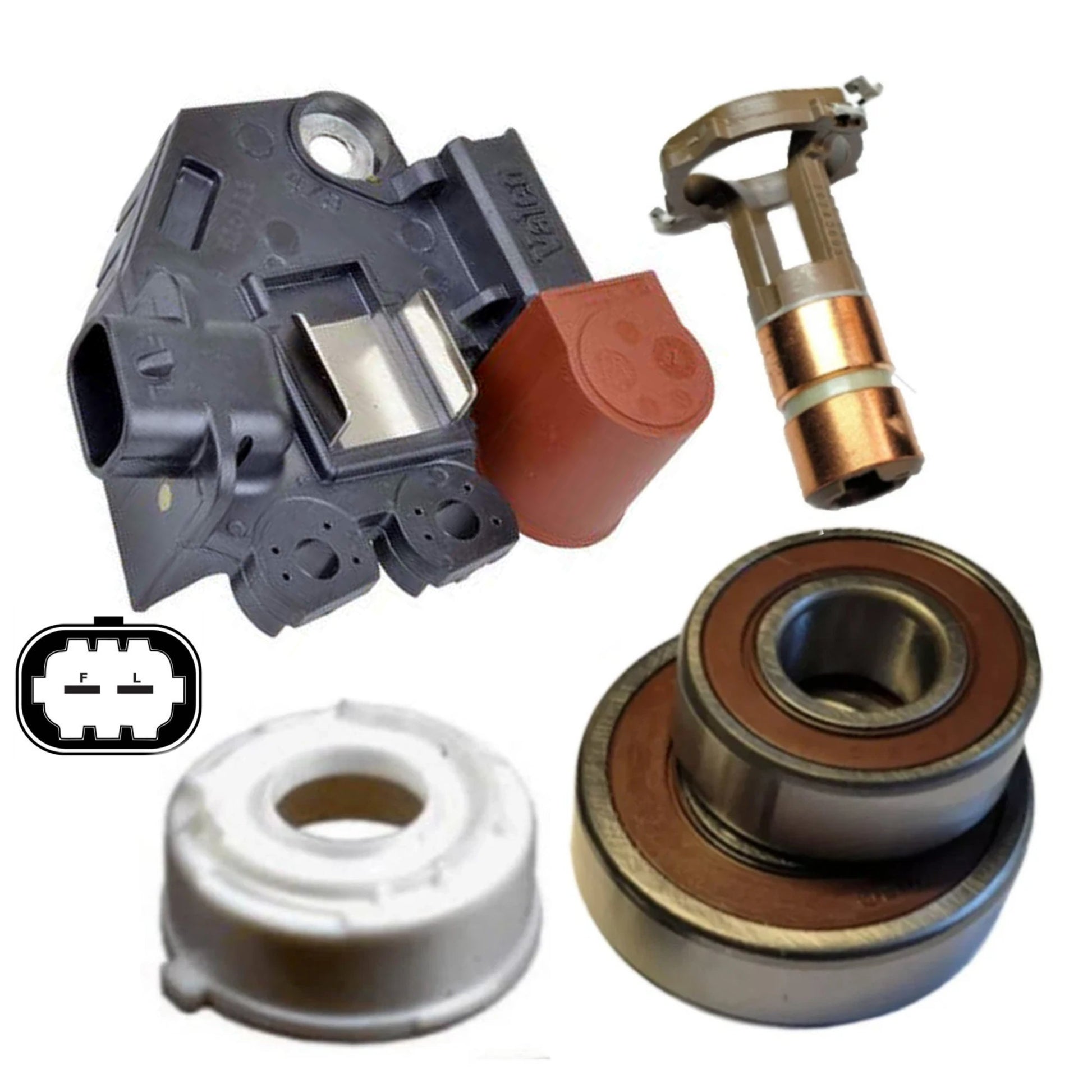

Alternator Rebuild Kit for 2013-2021 Encore Trax 1.4L w/Valeo FG12S031, FG12S064 - 11399RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Buick Truck: Encore (2013-2021 L4 1.4L 1364cc 83cid VIN B — Will not work for VIN M 1399cc with Delco 4269193 option)
• Chevrolet Car: Cruze (2010 L4 1.8L 1796cc 110cid, 2011 L4 1.4L 1364cc 83cid)
• Chevrolet Truck: Trax (2013-2021 L4 1.4L 1364cc 83cid — Will not work for 1399cc with Delco 4269193 option)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• GM / Opel OE: 13577154, 13597226, 13588289, 1202215, 1204437
• Valeo OE: 440637, FG12S031, 2611889, 2611889A, 849048, FGN12S064, 2619573B, FG12S064
• Bosch Reman: AL8874X
• Lester / PIC References: Lester 11399 | PIC 208-879, 208-1115 (Old: 290-5485)
• Other Crossovers: ERA 209244, JN 400-40119, Wilson 90-22-5630

🔧 Component-Specific Technical Data

⚡ Voltage Regulator with Brushes Specs

• Technical Specifications: 12 Volt, B-Circuit, High Side Drive Regulator, F-L Terminals, 13.8 Vset, 14mm ID Brush Ring, Field Rating 5 Amps, Field Short Circuit Protection, Stator/RVC Activated (Controlled by Vehicle RVC System)
• Design: For Valeo Alternators
• Replaces OEM: Valeo 2616783, 599386, 702152, 702153
• Aftermarket Crossovers: 1127-114RS, WG1776063, M608, 266-036, W082-69N, T8608

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: Valeo 592858, 593563 | 6-303-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53500 / 6202-2RS
• Dimensions: 15mm ID x 35mm OD x 11mm W
• Interchange Numbers: Valeo 593564, 593684 | 6-202-4W

⚡ Bearing Tolerance Ring / Cap Specs

• Dimensions: 35mm ID x 37mm OD x 19mm Overall Height
• Replaces OEM: Valeo 2545308, 591002
• Interchange Numbers: 46-94435

⚡ Slip Ring Specs

• Dimensions: 9mm ID x 14.9mm OD x 48.3mm L
• Replaces OEM: Valeo 2606286
• Interchange Numbers: 28-94867

💕 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
