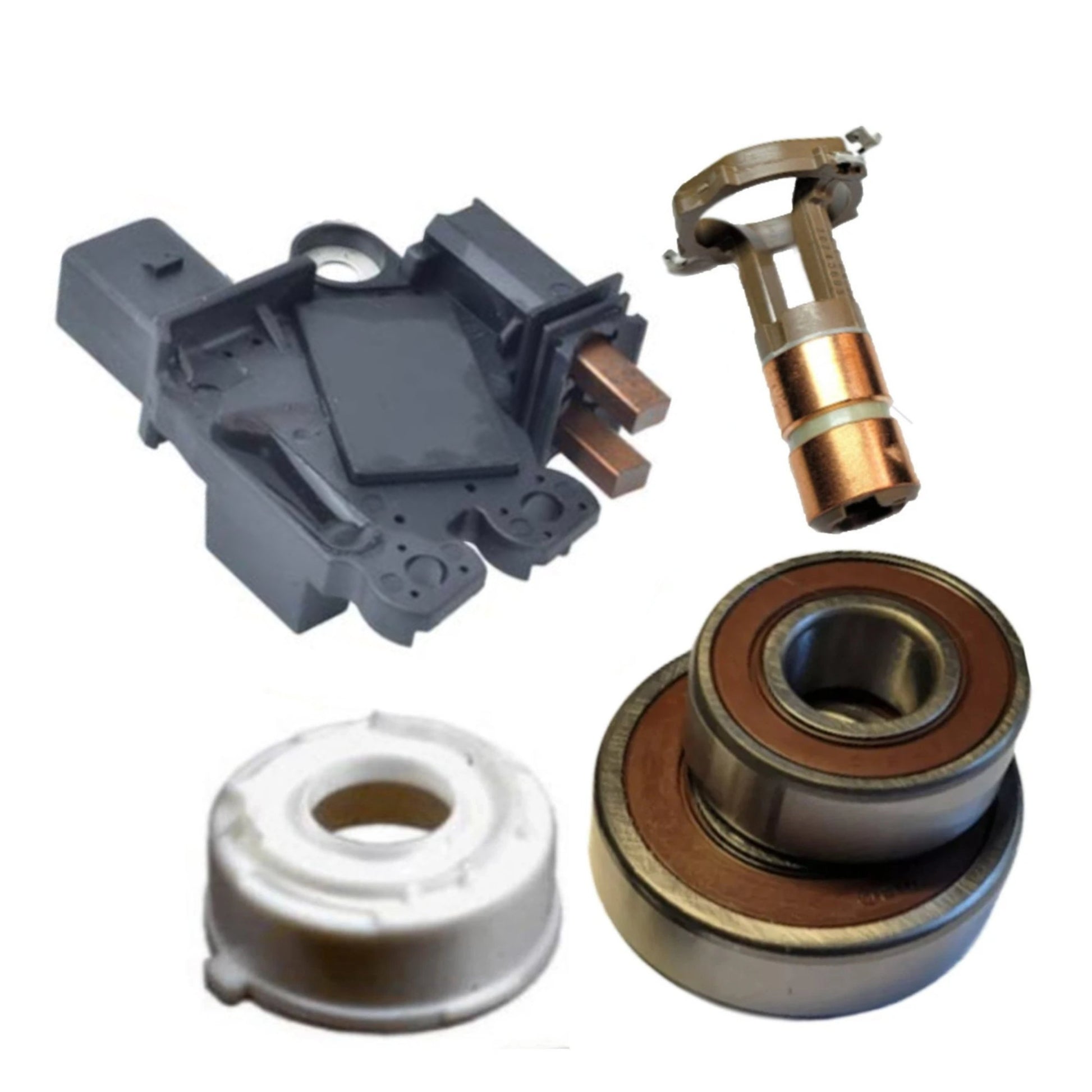

Alternator Rebuild Kit 2014-2019 Corolla 1.8L 27060-0T230, FG12T050, FG12T146 - 11693RK-A

Alternator Rebuild Kit 2014-2019 Corolla 1.8L 27060-0T230, FG12T050, FG12T146 - 11693RK-A

11693RK-A

$44.98 USD
$44.98 USD
$44.98 each
Sale Sold out
Shipping calculated at checkout.
  • Fast Shipping
  • 30 Day Money Back Guarantee
  • 1 Year Warranty
View full details

Toyota Corolla L4 1.8L 2ZR-FE 2014-2019 w/Valeo

Alternator Manufacturer and Factory #s
Toyota 27060-0T230,
Valeo FG12T050, FG12T146, 2614390, 420230, 2614390A, 849150
Lester 11693
Bosch Aftermarket AL3387X (Reman)

  • OEM Voltage Regulator with Brushes Specification - VOLT 12, VOLT SET 14.200, TERMINAL ID L, FR - POLARITY Negative LOAD RESPONSE CONTROL 13 seconds INCLUDES Brush Holder Brushes // Replaces: Valeo 2607131, 2613568, 2614680 Other: 8008-5523, 80085523, V7131, W082-97, W08297, 230-40136, MGNR-V047H, M680, 09792, 09792OE (OE) - 2614680
  • Drive End Bearing 54700 17x47x14mm / Ref#s 6303-2RS 17x47x14mm Ref 593563
  • SRE Rear Rotor Bearing 53500 15x35x11mm / Ref#s 6202DWS 15x35x11mm Ref 593684
  • Tolerance Ring / Bearing Cap 35mm ID x 37.3mm OD x 19.3mm OA Height Ref 46-94435
  • SlipRing, 48.3mm L / 9mm ID / 14.9mm OD Replaces Valeo 2606286 - 28-94867
