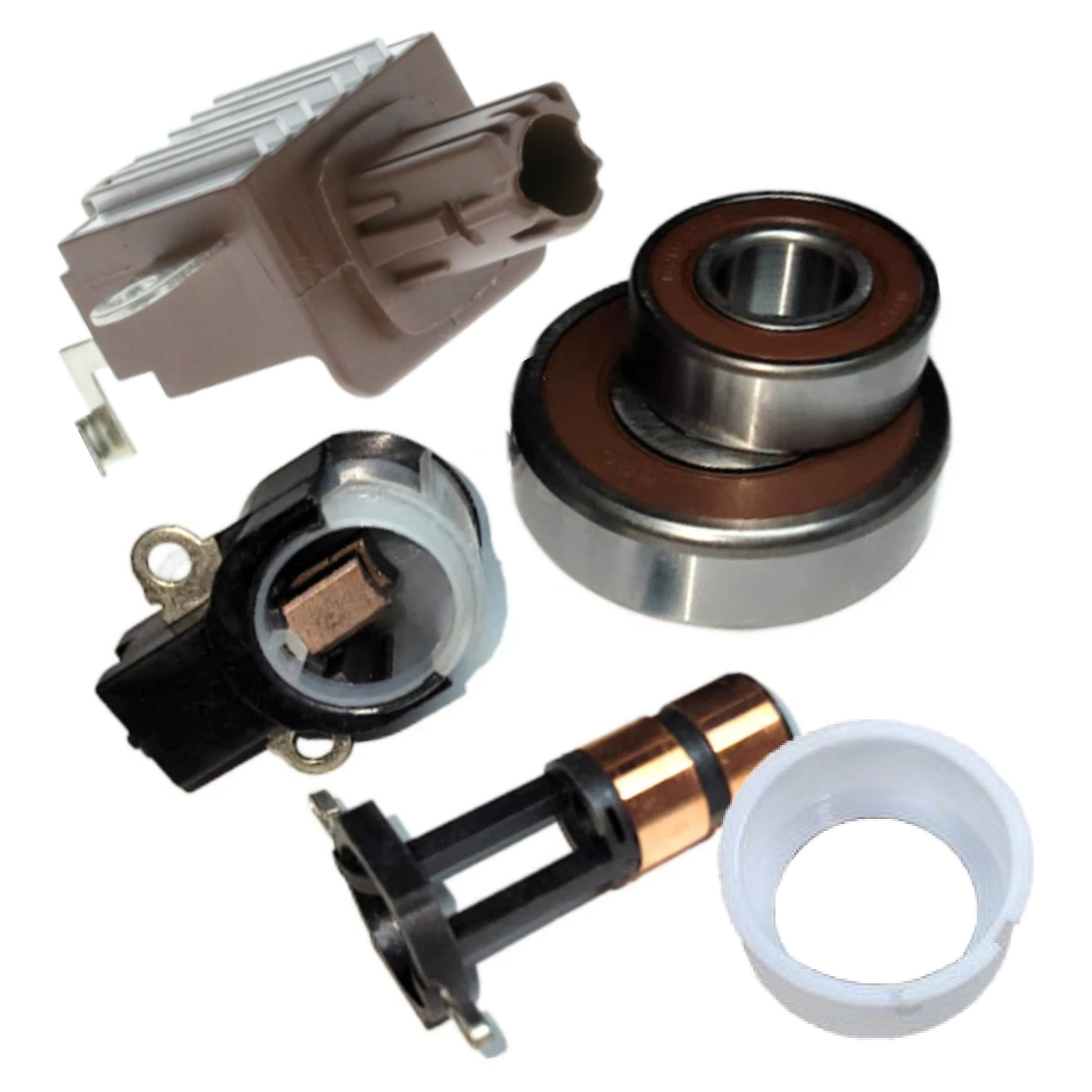

Alternator Rebuild Kit 2014-2019 Corolla LE Eco 2ZR-FAE with 125 Amp Denso - 11777RK-A

Toyota Corolla LE Eco L4 1.8L 1798CC 2014-2019 2ZR-FAE VIN P with 125 Amp Denso

Alternator Manufacturer and Factory #s
Bosch Aftermarket AL3386X (Reman)
DENSO 104211-331, 104211-3310, 104211-3311, 104211-3312, 104211-3313
DENSO Auto Parts 210-0885, 210-1246
Lester 11777
Toyota 27060-0T260

• Voltage Regulator - Specifications: 12 Volt, B-Circuit, 14.0 Vset, High Side Drive Regulator, LIN Terminals, Denso IR/IF Alternators, LIN (COM) Regulator, Stator Activated, Field Rating 5 Amps, Voltage Set point and Regulation Mode is controlled by Vehicle //  Replaces Denso 126600-4360, 4360, GC9 4360, Other 80904598, W085-397, T72007, 216-109, GNR-N351, 230-52208 - IN6373

• Rotor SRE Bearing 15x35x11mm 6202-2RS, Ref# 949100-0070, 949100-0160, 949100-0330, 949100-0340, 949100-2950, 949100-2951, 949100-3160, 949100-3161, 949100-3630, 949100-3730, 949100-3731, 53500 - 6-202-4W

• Drive End Bearing 17x47x14mm 6303-2RS, Ref# 949100-1010, 949100-1840, 949100-2701, 949100-2820,  54700 - 6-303-4W

• SRE Bearing Tolerance Ring 35mm ID x 37mm OD x 14mm W - W115-250

• Brush Holder Assembly with Brushes, Replacing 021620-3030 - 39-8206

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854
