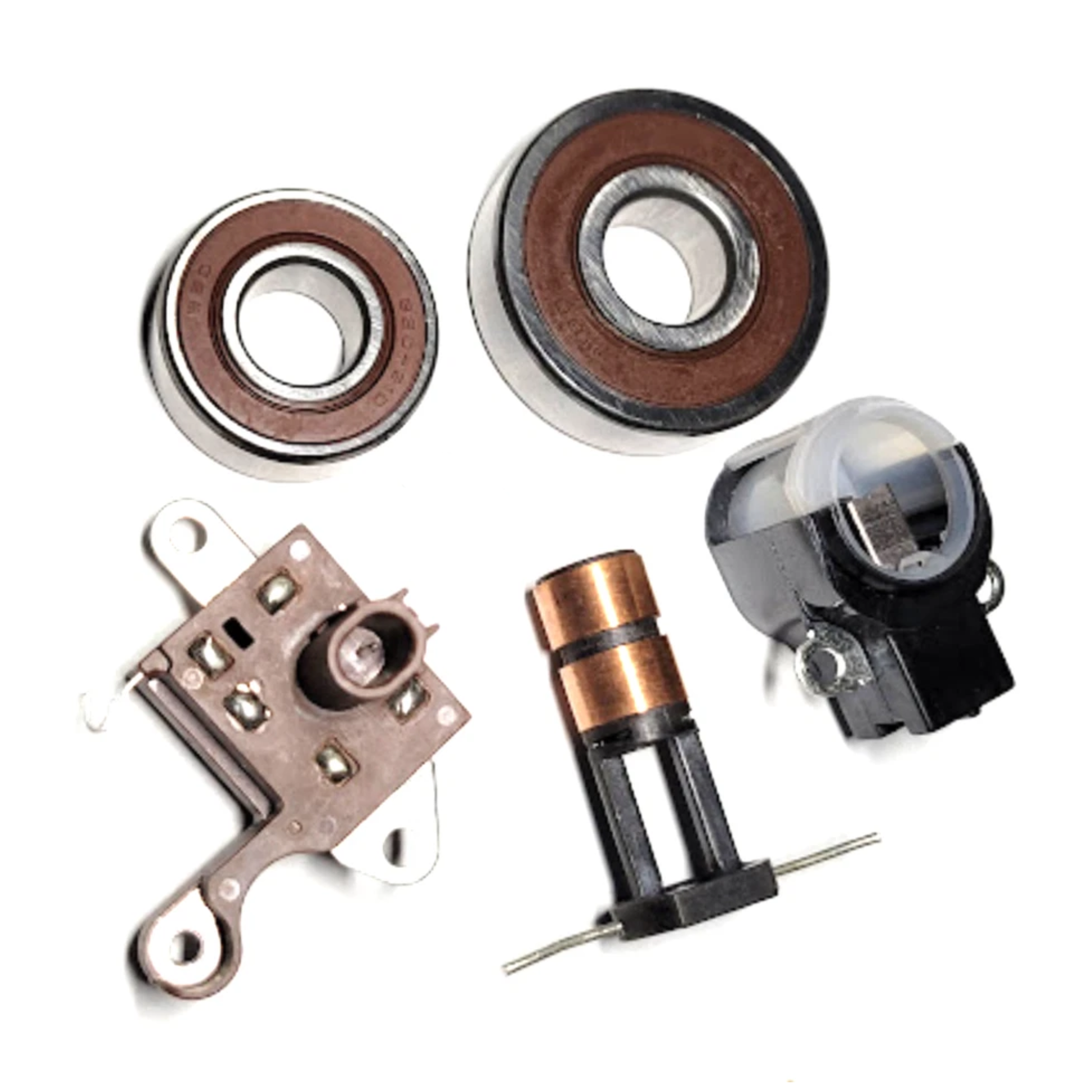

Alternator Rebuild Kit 2014-2020 Acura RLX 3.5L 155 Amp 104210-1990 - 11774RK-A

Acura RLX V6 3.5L 3471cc J35Y4 2014-2020

Alternator Manufacturer and Factory #s
Acura 31100-R9P-A01, 31100-R9P-A01RM
Denso 104210-1990, 210-0871, 210-1243
Honda 31100-R9P-A01, 31100-R9P-A01RM, CSJ99
Lester 11774
PIC# 290-6332
MFR Series - Family Type HAIRPIN
Remy Light Duty    11185
Wilson    90-29-5867
JN 400-52520

• Voltage Regulator - B-Circuit, 1 Pin Terminals, Lin 2.0, 13.8 Voltage Set, LIN-5 4/19200, Replacing Denso 126600-4180, 4180, GC8 4180, Other IN4180, ND-1242, W085-376, 230-52198, VRH2005-203, 80904648, GNR-N371, 216-086 - IN4180

• Slipring 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL // s Denso ... Other  7190-904B, 313-52004, W165-11, W16511, AND3505 - 28-82854

• Bearing 54700 17x47x14mm Ref# 6303-2RS, 949100-1010, 949100-2820 - 6-303-4

• Bearing 53514 15x35x13mm Ref# 279, 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Brush Holder Assembly Ref# 021620-3020, -3030, -3040 - 39-8206
