Alternator Rebuild Kit 2015-2025 Transit 3.5 3.7 with 250A Mits A3TV1391ZC - 11928RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚙 Vehicle Application Details

• Ford Van:
  • Transit-150 V6 3.5L 3496cc 213cid (2015-2025) *250 Amp Option
  • Transit-150 V6 3.7L 3726cc 227cid (2015-2019) *250 Amp Option
  • Transit-250 V6 3.5L 3496cc 213cid (2015-2022, 2024-2025) *250 Amp Option
  • Transit-250 V6 3.7L 3726cc 227cid (2015-2019) *250 Amp Option
  • Transit-350 V6 3.5L 3496cc 213cid (2015-2025) *250 Amp Option
  • Transit-350 V6 3.7L 3726cc 227cid (2015-2019) *250 Amp Option
  • Transit-350 HD V6 3.5L 3496cc 213cid (2015-2025) *250 Amp Option
  • Transit-350 HD V6 3.7L 3726cc 227cid (2015-2019) *250 Amp Option

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Mitsubishi: A003TV1391, A003TV1391ZC, A3TV1391, A3TV1391ZC
• Ford OE / Motorcraft: CK4Z-10346-B, CK4Z-10346-C, CK4Z-10346-D, C4KT-10300-CB, CK4T-10300-BD, CK4T-10300-CA, GL-8838
• Bosch Reman: AL7794X
• Lester / PIC References: Lester 11928 | PIC 203-5574

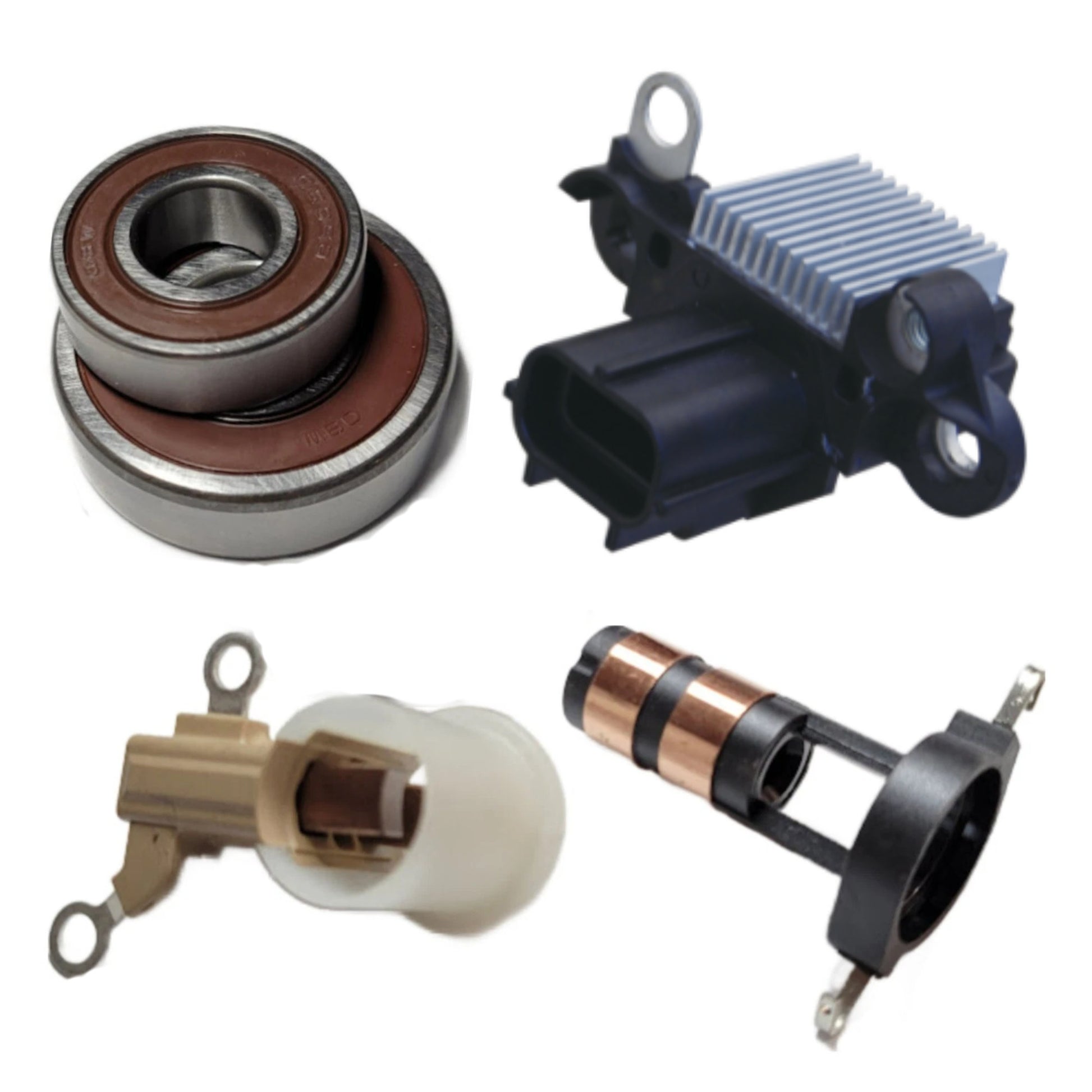

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, Mitsubishi IR/IF, AS-RC-LI Terminals, B-Circuit, Ford PWM
• Replaces OEM: Mitsubishi 730, 706
• Aftermarket Crossovers: IM730, 8003-3212, 8003-3269, 8003-3213, W085-408, 230-48176, VRH2009-218MA, 196-117, MT-1956

⚡ Brush Holder Assembly Specs

• Design: Brush Holder Brushes Assembly for Late Mitsubishi 200A+ Alternators
• Interchange Numbers: 191-306, W155-33

⚡ Slip Ring Specs

• Design: For Late Mitsubishi Alternators
• Interchange Numbers: 193-503, W165-12, MT-1954

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 6-303-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53500 / 6202-2RS
• Dimensions: 15mm ID x 35mm OD x 11mm W
• Interchange Numbers: 6-202-4W

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
