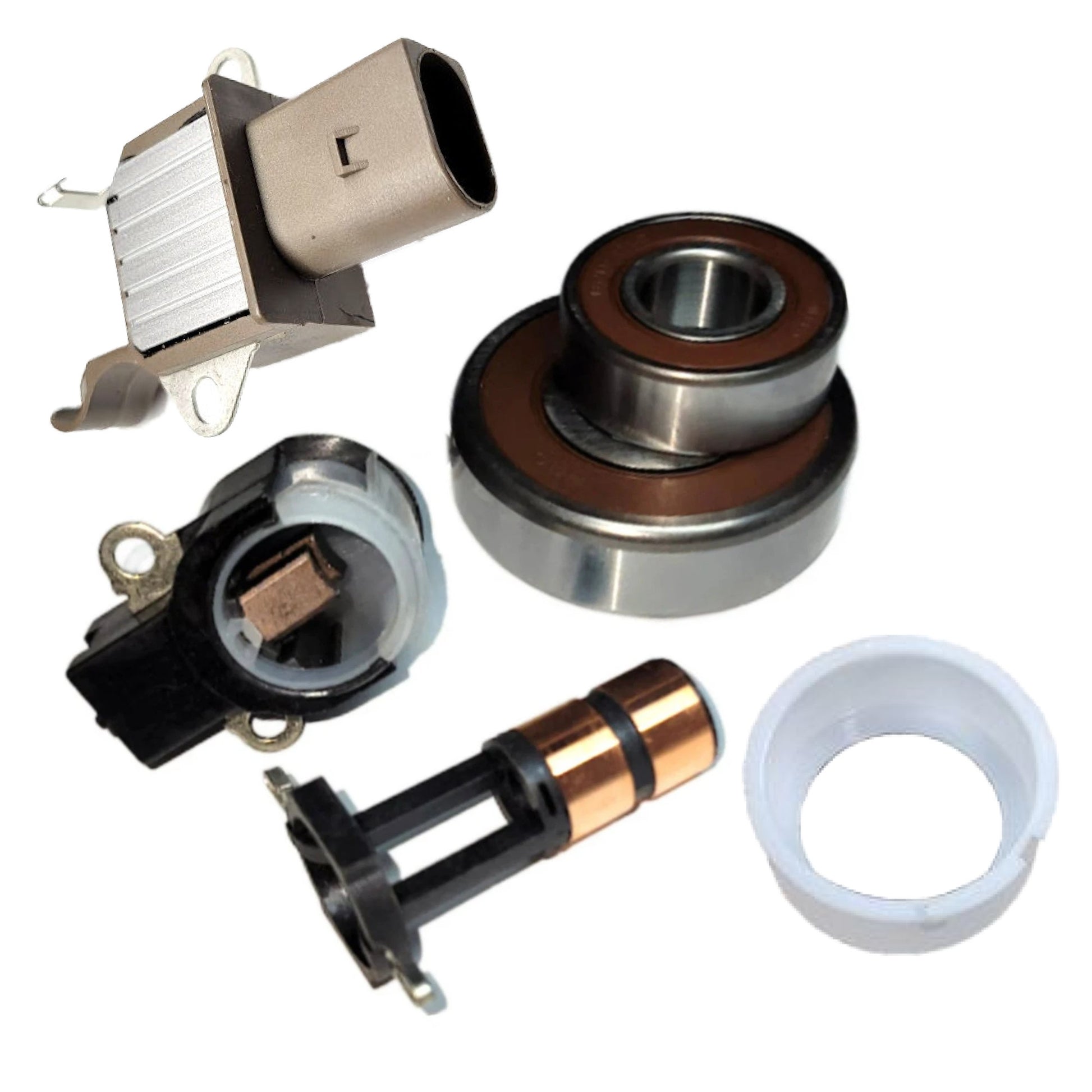

Alternator Rebuild Kit 2016-202 Toyota Tacoma 2.7L 100 Amp 104211-3770 - 21017RK-A

Toyota Tacoma L4 2.7L 2694CC 2017-2023 100 Amp
Toyota Tacoma L4 2.7L 2694CC 2016 From 08/2015 100 Amp

Alternator Manufacturer and Factory #s
DENSO 104211-377, 104211-3770, MX104211-3770
Lester 21017
Toyota 27060-0C170

• Voltage Regulator - Specifications: 12 Volt, LIN, 13.7 voltage set point, B-CIRCUIT, Plug Code 065 // Replaces Denso GC10 4930, 4880 01F05, Other W085-418, VRH2005-224, 216-133 - IN4930

• Rotor SRE Bearing 15x35x11mm 6202-2RS, Ref# 949100-0070, 949100-0160, 949100-0330, 949100-0340, 949100-2950, 949100-2951, 949100-3160, 949100-3161, 949100-3630, 949100-3730, 949100-3731, 53500 - 6-202-4W

• Drive End Bearing 17x47x14mm 6303-2RS, Ref# 949100-1010, 949100-1840, 949100-2701, 949100-2820,  54700 - 6-303-4W

• SRE Bearing Tolerance Ring 35mm ID x 37mm OD x 14mm W - W115-250

• Brush Holder Assembly with Brushes, Replacing 021620-3030 - 39-8206

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854
