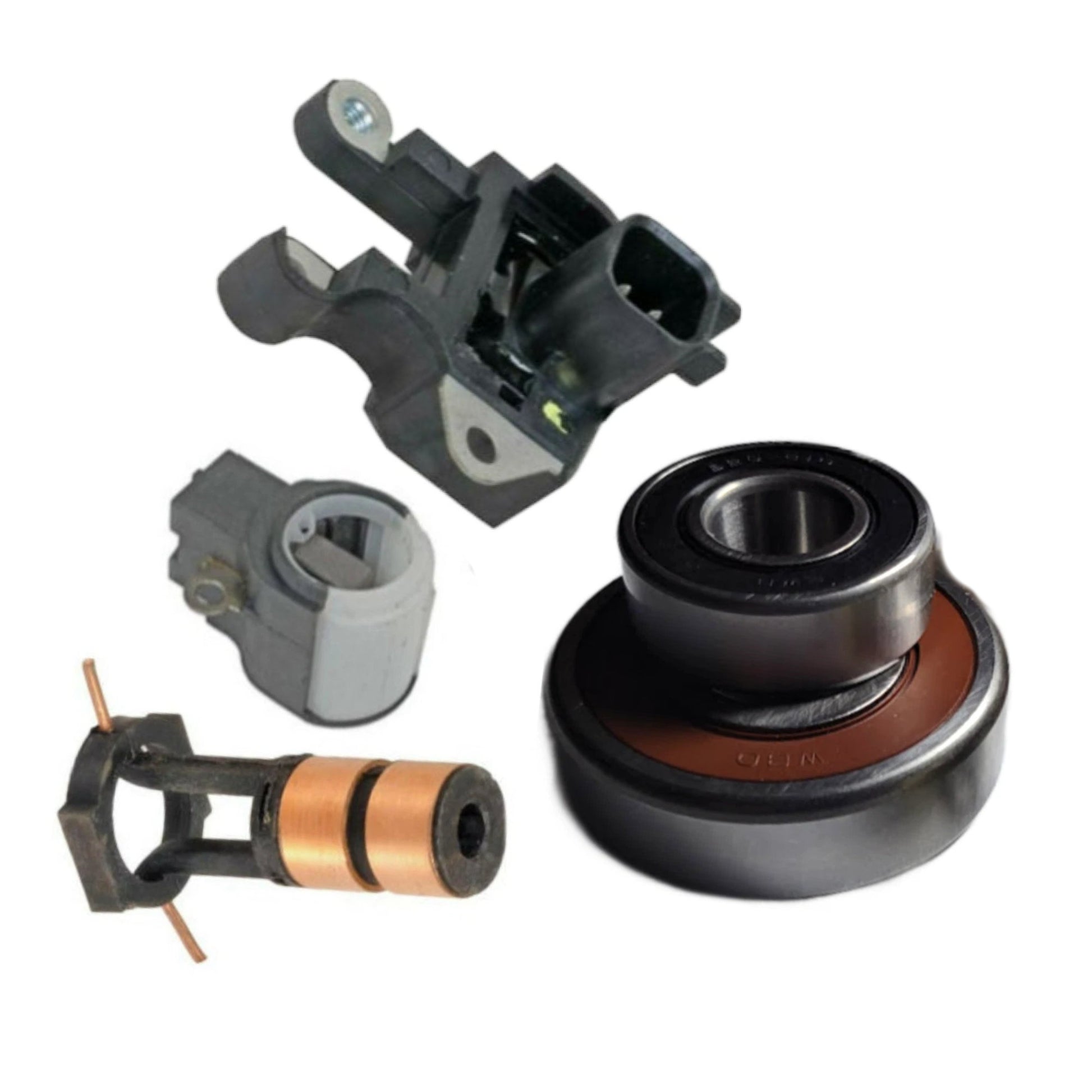

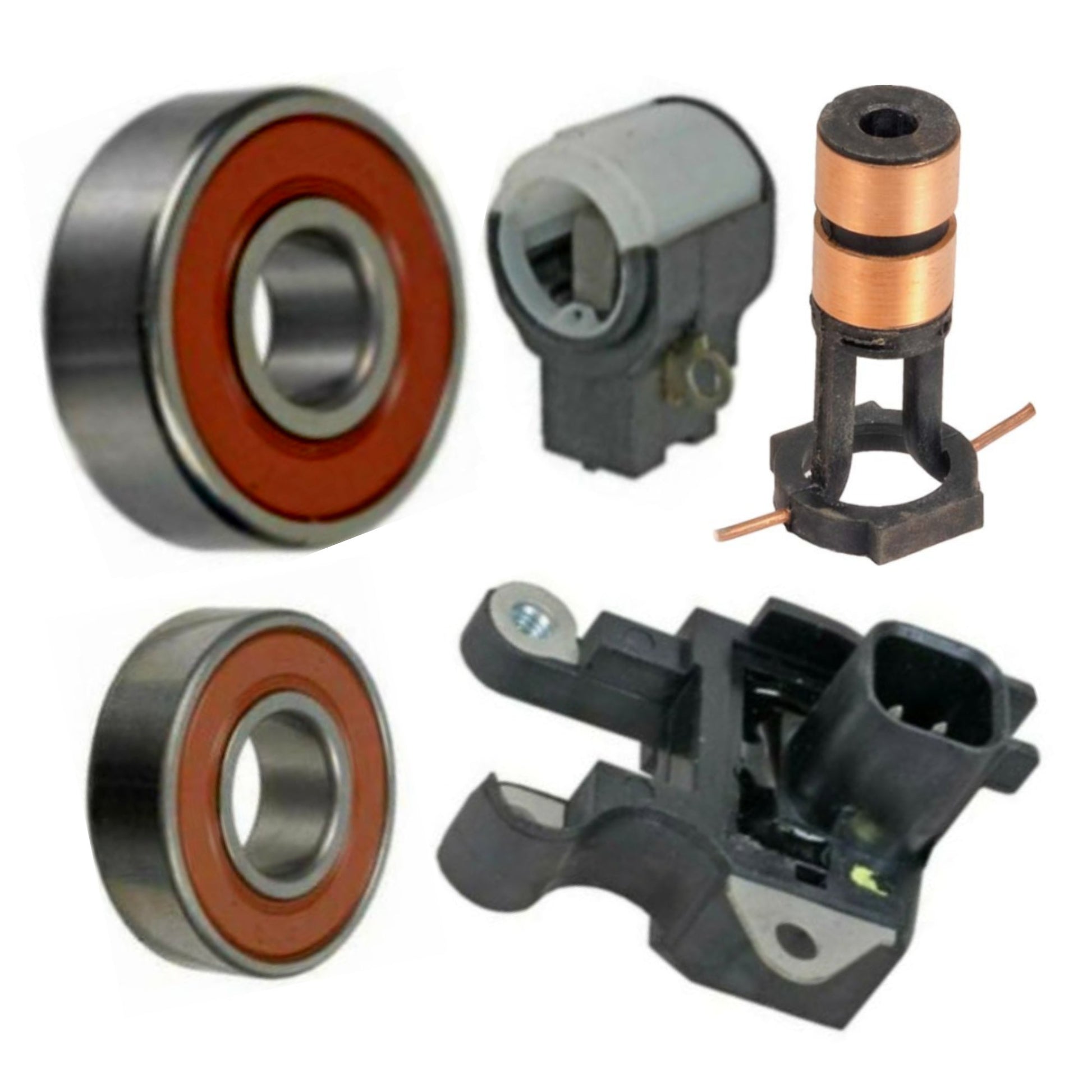

Alternator Rebuild Kit 2017-2019 Pacifica 3.6L w/160 Amp Denso 421000-0830 56029731AA - 44008RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Chrysler:
  • Pacifica V6 3.6L (2017-2020) w/ 160 Amp
  • Voyager V6 3.6L (2020) w/ 160 Amp

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Chrysler OE: 56029731AA
• Denso OE: 421000-083, 421000-0830, TN421000-0830
• Lester References: Lester 44008

📐 Component-Specific Technical Data

⚡ Terminal Block Alternator PCM Harness Connection Specs

• Technical Specifications: Interface PCM connection (not a regulator); provides interface between alternator and vehicle ECU. Features built-in EMI capacitor, B+ terminal with 2.4 kOhm series resistor, and field circuit terminal.
• Replaces OEM: Denso 126220-0311
• Aftermarket Crossovers: 170-52005, 46-82207, AND1631, 9990-1007, TB-ND163

⚡ Brush Holder Assembly with Brushes Specs

• Replaces OEM: Denso 021620-3020, 021620-3030
• Interchange Numbers: 39-8206

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 1900905164, 6-303-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514 / 279
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 949100-2790, 949100-3980, 949100-4440, 10-2021-4W

⚡ Slip Ring Specs

• Design: For Hairpin Denso Alternators
• Dimensions: 5.8mm ID x 14.3mm OD x 11mm L
• Interchange Numbers: 28-82854

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
