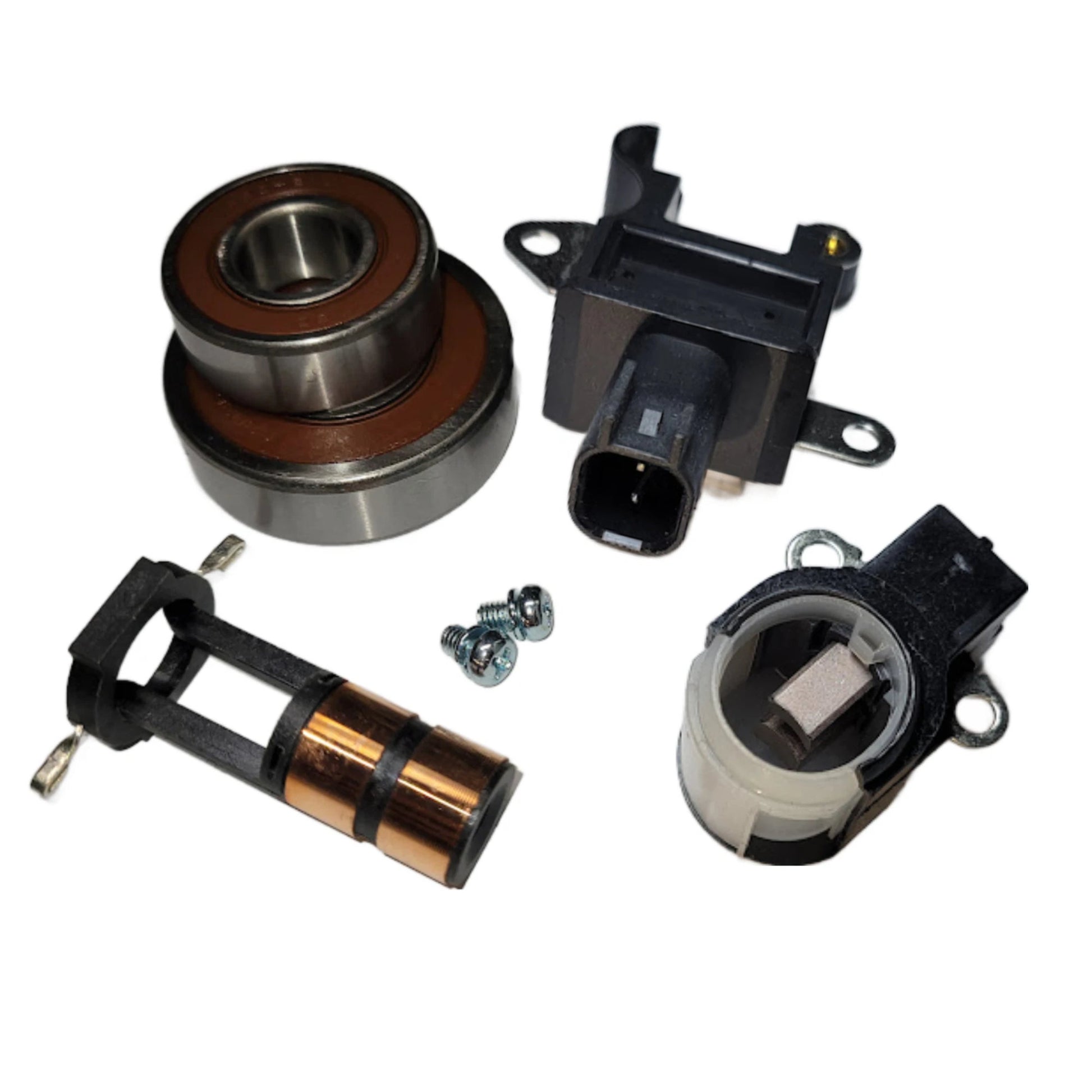

Alternator Rebuild Kit 220 Amp 2012-2013 Ram 1500 5.7L - 11680RK-A

Ram 1500 V8 5.7L 345cid 2012-2013 with 220 Amp

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL6501X
Bosch Service Europe 0 986 UR6 234
Chrysler 56029653AA, P56029653AA
Denso 421000-7070
Mercedes-Benz A0041514801
PIC# 290-5139E

• Alternator Terminal Connector, Specifications: ECU Operated Terminal, F (FLD), B+ Terminals, Denso 136-160A Alternators, provides an interface between the alternator and vehicle ECU. The design incorporates an EMI 4.7uF capacitor, a rectifier B+ terminal with series resistor, and a field circuit terminal, :B+ terminal with 2.4 kOhm resistor, EMI capacitor Replaces 211-608, 170-52006, W115-202, 99901009, TBND165 - 46-82208

• Rotor SRE Bearing 53514 15x35x13mm 279, Replacing 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Drive End Bearing 55222 17x52x16mm Ref# 333-2RS, Replacing 949100-3330, 949100-4370, 949100-5010 -10-3042-4W

• Brush Holder Assembly with Brushes, Replacing 021620-3020, 021620-3030 - 39-8206

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854
• Attaching Screws - 85-1205x2
