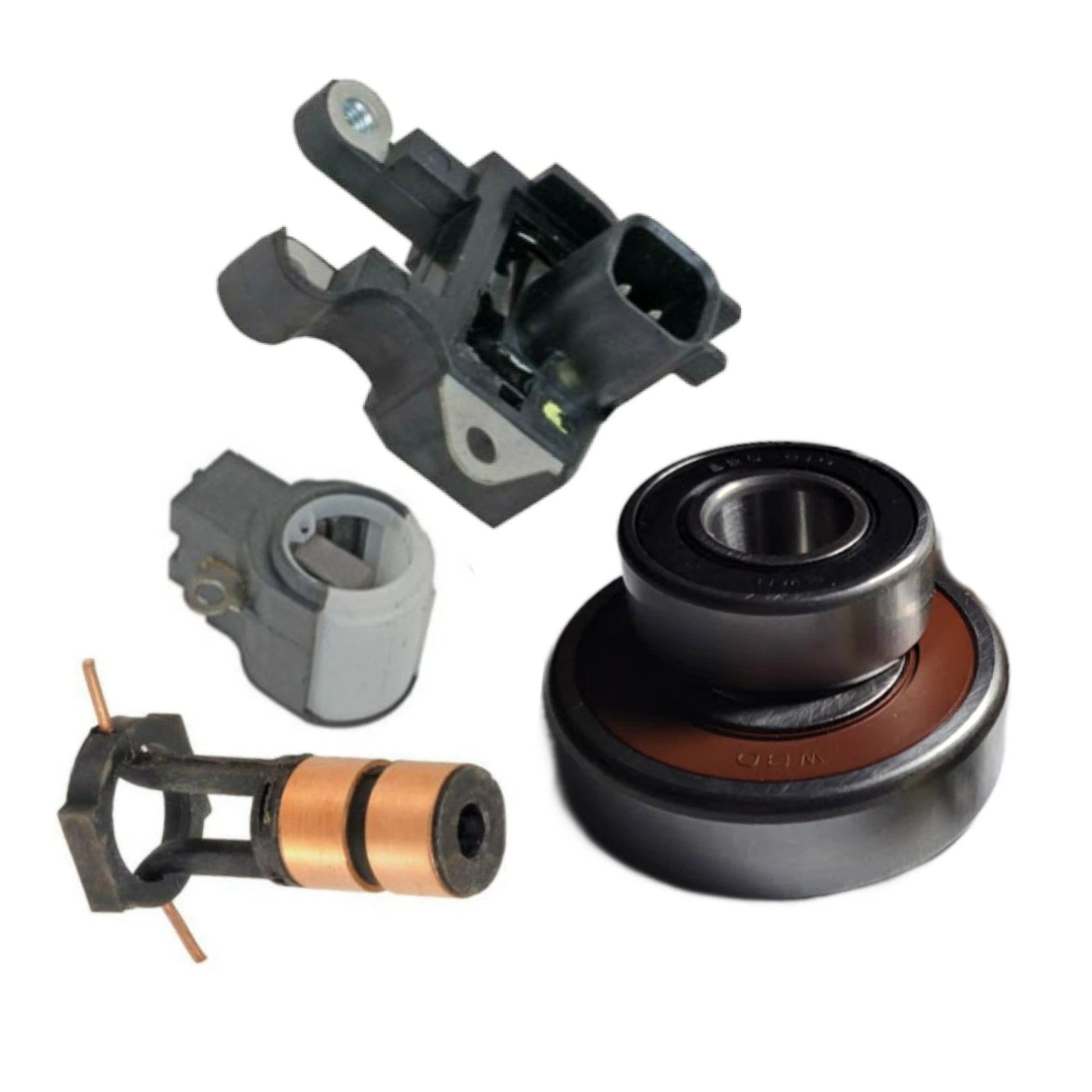

Alternator Rebuild Kit 220 Amp 3.6L Dodge Charger Durango Gr Cherokee RAM 1500 - 11592RK-A

Dodge Charger V6 3.6L 3604cc VIN G 2011-2023
Dodge Durango V6 3.6L 3604cc VIN G 2011-2015
Dodge Durango V6 3.6L 3604cc VIN G 2017-2023
Jeep Grand Cherokee V6 3.6L 3604cc VIN G 2011-2021
Jeep Grand Cherokee WK V6 3.6L 3604cc VIN G 2022
Ram 1500 V6 3.6L 3604cc VIN G 2013-2015
Ram 1500 V6 3.6L 3604cc VIN G 2017-2018
Ram 1500 Classic V6 3.6L 3604cc VIN G 2019-2023

• Terminal Block Alternator PCM Harness Connection: (an interface, not a regulator - provides an interface between the alternator and vehicle ECU. The design incorporates an EMI capacitor, a rectifier B+ terminal with series resistor and a field circuit terminal. • B+ terminal with 2.4 kOhm resistor • EMI capacitor - Replaces / Interchanges: 170-52005, 46-82207, AND1631, Denso 126220-0311, 9990-1007, TB-ND163 - 46-82207

• Rotor SRE Bearing 53514 15x35x13mm 279, Replacing 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Drive End Bearing 55222 17x52x16mm Ref# 333-2RS, Replacing 949100-3330, 949100-4370, 949100-5010 -10-3042-4W

• Brush Holder Assembly with Brushes, Replacing 021620-3020, 021620-3030 - 39-8206

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL6491X
Chrysler 4801865AC, 4801865AE, P04801865AC, R4801865AC, 56029649AA, 56029649AB, R6029649AB
Denso 421000-705, 421000-7050, 421000-7051, 421000-7080
Lester 11592
JANNCO 400-52289R, 400-52405R
Remy Light Duty 11070
Wilson 90-29-5785
