Alternator Rebuild Kit 220A 2014-2024 Ram 1500 5.7L Ram 2500 3500 4500 5500 6.4L - 14027RK-A

Ram
1500 V8 5.7L 345CID 2014-2018 with 220 Amp Denso
1500 Classic V8 5.7L 345CID 2019-2024 with 220 Amp Denso
2500 V8 6.4L 392CID 2014-2024 with 220 Amp Denso
3500 V8 6.4L 392CID 2014-2024 with 220 Amp Denso
4500 V8 6.4L 392CID 2014-2024 with 220 Amp Denso
5500 V8 6.4L 392CID 2014-2024 with 220 Amp Denso

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL6560X
Chrysler 56029644AA, 56029644AB, R6029644AB
Denso 421000-7130, 421000-7131, MX421000-7130, MX421000-7131
Lester 14027
MFR Series - Family Type HAIRPIN
PIC# 290-691

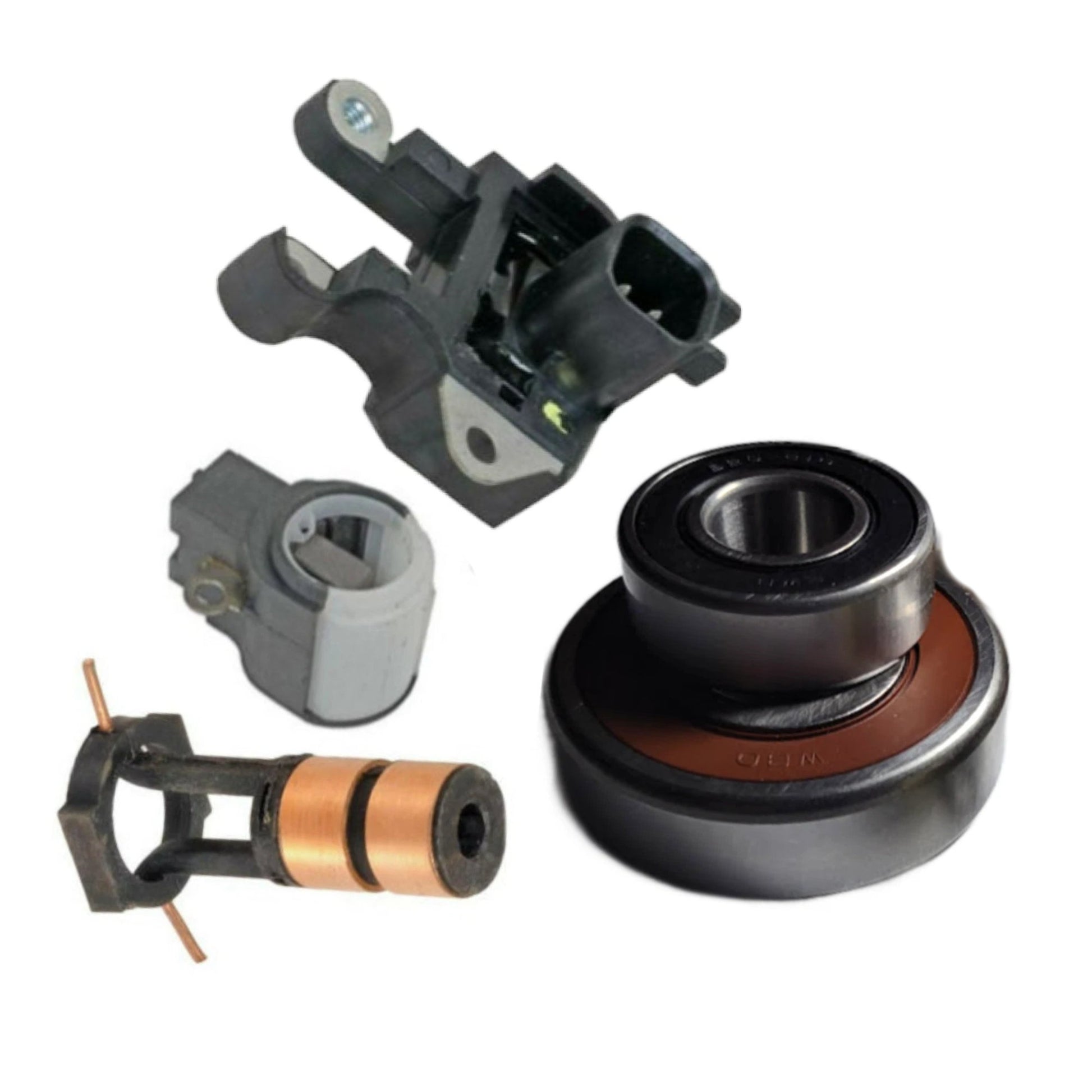

• Terminal Block Alternator PCM Harness Connection: (an interface, not a regulator - provides an interface between the alternator and vehicle ECU. The design incorporates an EMI capacitor, a rectifier B+ terminal with series resistor and a field circuit terminal. • B+ terminal with 2.4 kOhm resistor • EMI capacitor - Replaces / Interchanges: 170-52005, 46-82207, AND1631, Denso 126220-0311, 9990-1007, TB-ND163 - 46-82207

• Rotor SRE Bearing 53514 15x35x13mm 279, Replacing 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Drive End Bearing 55222 17x52x16mm Ref# 333-2RS, Replacing 949100-3330, 949100-4370, 949100-5010 -10-3042-4W

• Brush Holder Assembly with Brushes, Replacing 021620-3020, 021620-3030 - 39-8206

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854
