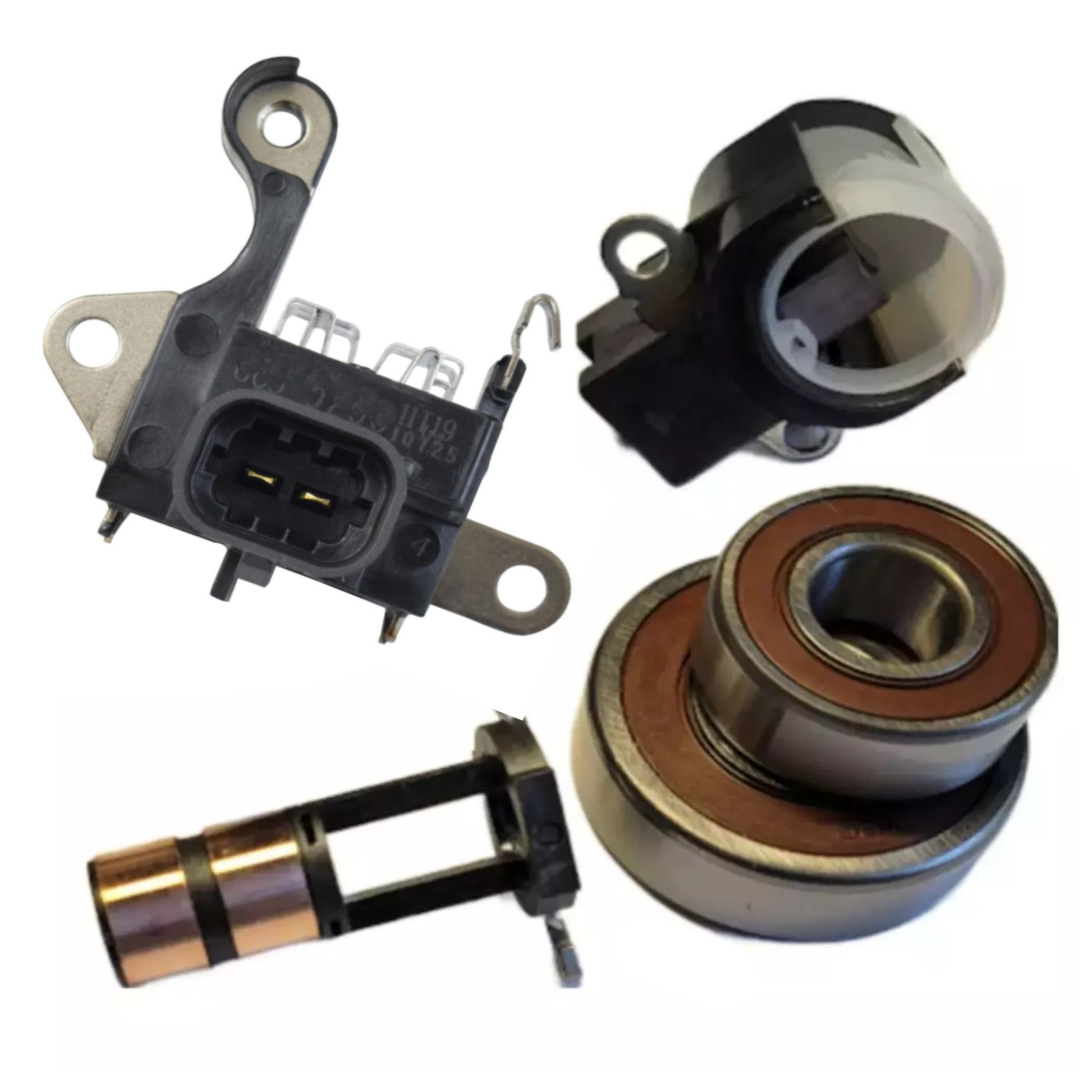

Alternator Rebuild Kit 3.9L Impala Monte Carlo w/150A Denso 104210-4560 - 11183RK-A

Need to rebuild your vehicle's alternator? This premium rebuild kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚙 Vehicle Application Details

• Chevrolet Car:
  • Impala V6 3.9L 3880cc (2006) *150 Amp; Denso Unit
  • Impala V6 3.9L 3880cc (2009-2011) *150 Amp; Denso Unit
  • Monte Carlo V6 3.9L 3880cc (2006) *150 Amp; Denso Unit
• ⚠️ Verification Note: This will not fit Bosch Style or other alternators not described here. These vehicle models have multiple option variations. If your factory alternator does not match the specifications below, please contact us for a link to the correct kit.

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Denso: 021080-0170, 104210-4560
• GM: 10335498
• Bosch Reman: AL8553X
• Lester / PIC References: Lester 11183 | PIC 290-5234
• Other Crossovers: Excel 10833, Hollander 121A, J&N 400-52237, Remy Light Duty 12780, Wilson 90-29-5583

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, Voltage set controlled by vehicle RVC system. L(RC) terminal is a computer RVC(PWM) connection, not a traditional lamp terminal. *Regulator damage will occur if tested as a traditional Lamp connection.
• Replaces OEM: Denso 126600-3290, 126600-3580, 3290, GC3 3290, GC3A 3580
• Aftermarket Crossovers: IN6329, 8008-4721, 8008-4509, GNR-N088, T7329, 216-076, 230-52143, AND6172, VRH2005-163, W085-320

⚡ Slip Ring Specs

• Design: For Denso Alternators
• Dimensions: 5.8mm ID x 14.3mm OD x 11mm LL
• Interchange Numbers: 28-82854, 7190-904B, 313-52004, W165-11, W16511, AND3505

⚡ Brush Holder Assembly Specs

• Design: Brush Holder Assembly with Brushes
• Replaces OEM: 021620-3020, 021620-3030, 021620-3040
• Interchange Numbers: 39-8206

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 1900905164, 6-303-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514 / 279
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 949100-2790, 949100-3980, 949100-4440, 10-2021-4W

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
