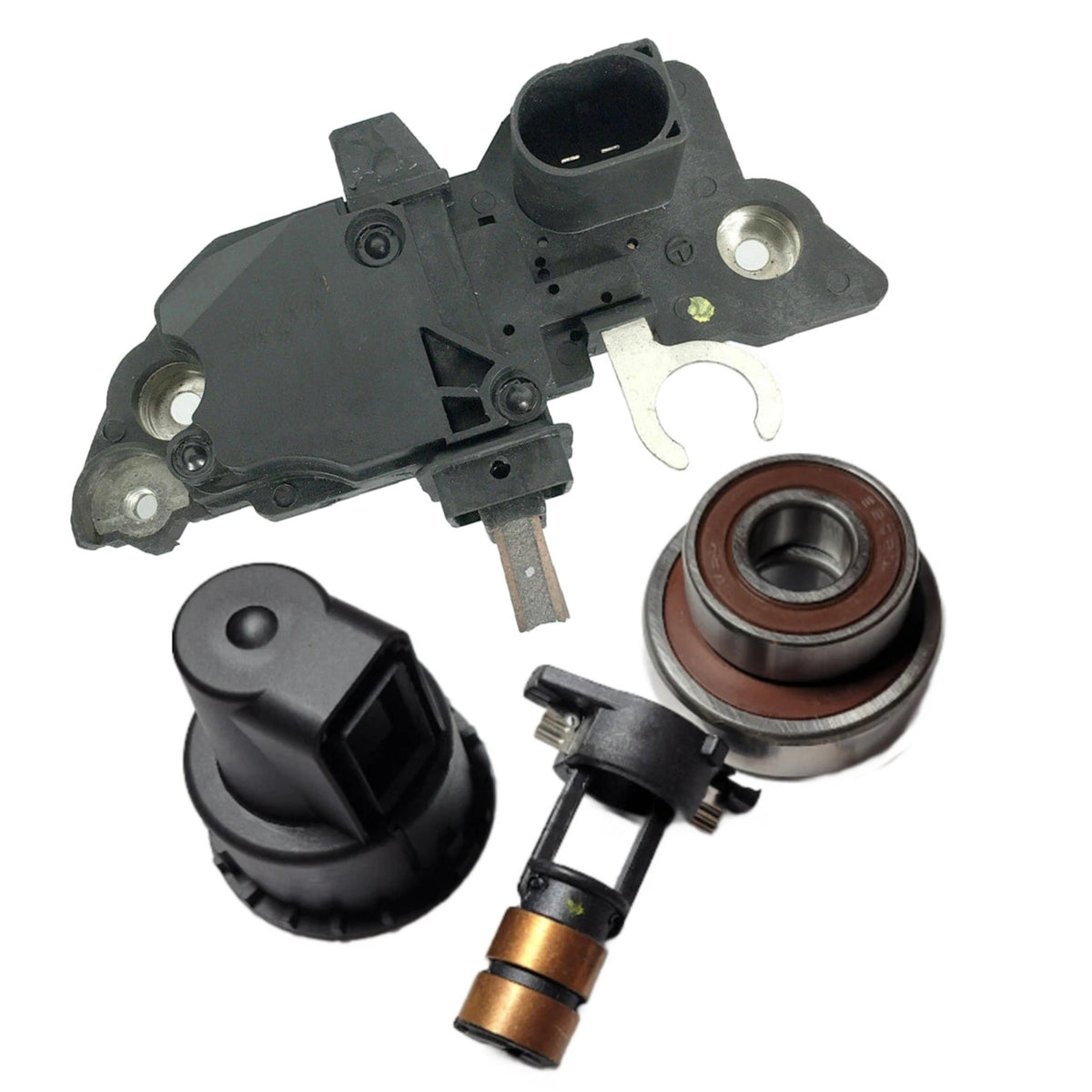

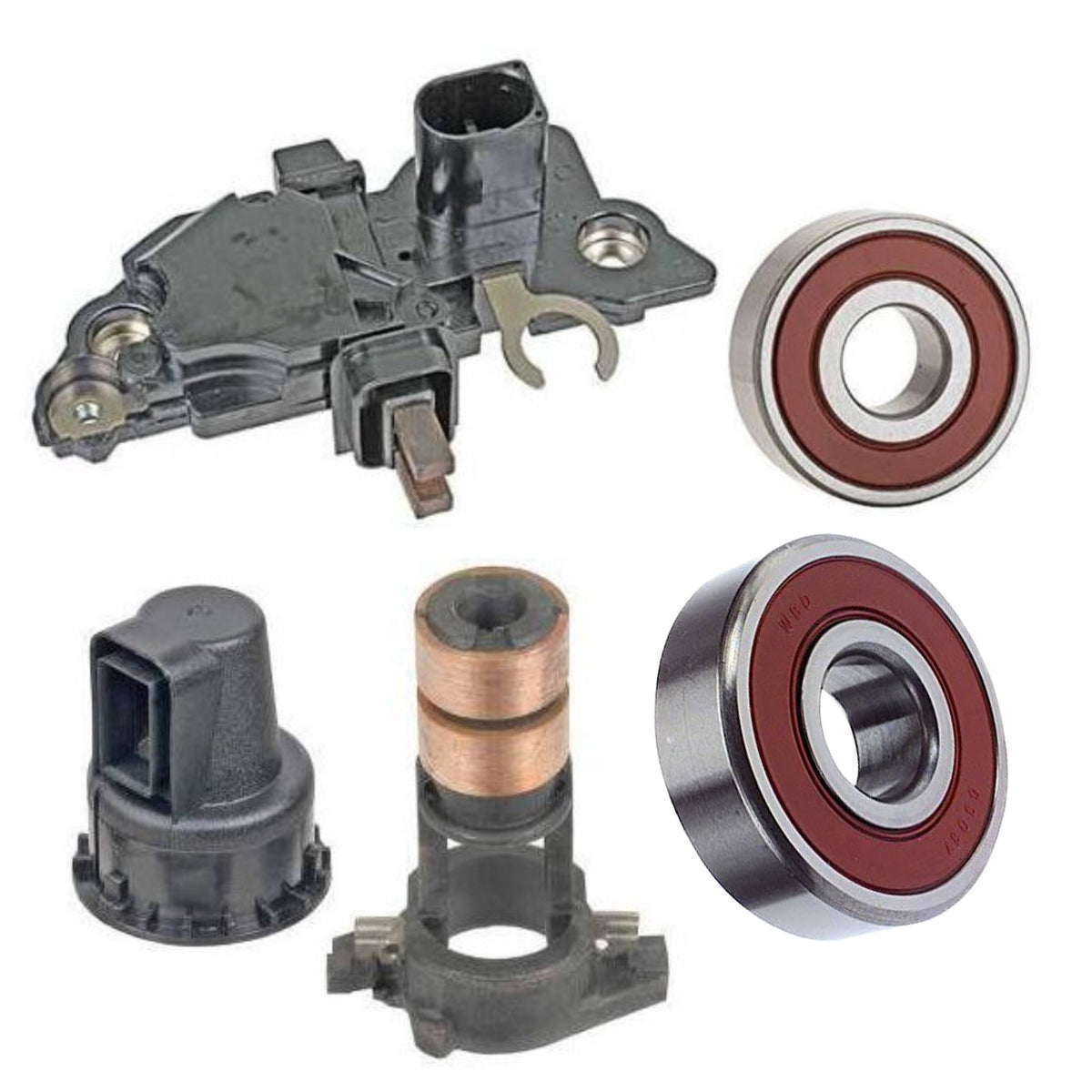

Alternator Rebuild Kit Beetle EOS Golf GTI Jetta Passat A3 TT with Bosch Alternator

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

Note: Fits applications equipped with a 140 Amp Bosch alternator. Will not fit Valeo style alternators used on these models.

🚘 Vehicle Application Details

• Audi A3 (2010-2013 L4 2.0L 1968cc Diesel, 2006-2008 L4 2.0L 1984cc),
• Audi A3 Quattro (2006-2008 V6 3.2L 3189cc),
• Audi TT (2008 L4 2.0L 1984cc BPY, 2009 L4 2.0L 1984cc CCTA),
• Audi TT Quattro (2010 L4 2.0L 1984cc),
• Audi TTS Quattro (2009-2010, 2014 L4 2.0L 1984cc)
• Volkswagen Beetle (2013-2014 L4 2.0L 1968cc),
• Volkswagen Eos (2007-2008 L4 2.0L 1984cc, 2007-2008 V6 3.2L 3189cc, 2008 V6 3.2L 3197cc),
• Volkswagen Golf (2010-2014 L4 2.0L 1968cc),
• Volkswagen GTI (2006-2007 L4 2.0L 1984cc, 2008 L4 2.0L 1984cc BPY),
• Volkswagen Jetta (2005-2006 L4 1.9L 1896cc Diesel, 2009-2014 L4 2.0L 1968cc, 2006-2007, 2009, 2011-2012, 2014-2015 L4 2.0L 1984cc, 2008 L4 2.0L 1984cc BPY, 2013 L4 2.0L 1984cc Naturally Aspirated CBPA),
• Volkswagen Jetta City (2007-2009 L4 2.0L 1984cc),
• Volkswagen Passat (2006-2007 L4 2.0L 1984cc, 2008 L4 2.0L 1984cc BPY, 2005 V6 2.8L 2771cc, 2013-2017 V6 3.6L 3597cc)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Audi OE: 06F-903-023A, 06F903023A, 06F-903-023AX, 06F-903-023F, 06F-903-023FX, 06F-903-023J, 06F903023JX
• Bosch OE & Reman: 0 124 525 039, 0 124 525 050, 0 124 525 066, 0 124 525 067, 0 124 525 091, 0 124 525 092, 0 124 525 525, 0124525039, 0124525050, 0124525066, 0124525067, 0124525091, 0124525092, 0124525525, AL0834X, 0 986 045 340, 0 986 604 534, 0986045340, 0986604534 (140 Amp Bosch Style)
• Lester / PIC References: Lester 11134
• Other Crossovers: Canadian Tire 0197211, DRI A/S Denmark 2113211402, 2113601402, Elpar Industries 0204036214, ERA 210468, 210469, Excel 10904, Friesen 9045340, HC Parts CA1782IR, Hella 8EL 011 710-791, 8EL 738 192-001, Herth & Buss 32045340, Hollander 60967, Lucas LRA02291, LEA0711

🔧 Component-Specific Technical Data

⚡ Voltage Regulator with Brushes Specs

• Technical Specifications: Heavy Duty, 12 Volt, Light 'L' - Frequency 'FR' Terminals
• Replaces OEM: Bosch F00M144136, F00M144154, F00M144175, F00M145200, F00M145209, F00M145225, F00M145261, F00M145296, F00M145315, F00M145337, F00M145341, F00M145350, F00M145384, F00M145396, F00M145397, F00M145862, F00M145876, F00M145891, F00MA45232, F00MA45300, F00MA45303
• Aftermarket Crossovers: IB5225, 230-24070, 230-24104, MFVR00450, VRB254, T9700, 176-024

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: Bosch 1120905001, 1120905004, 1120905021, 1120905037, 1120905039, 1120905068, 1120905074, 1120905516, 1120905518, 1120905533, 1900905304, 1900905326, 1900905331, 1900905376, 1900905378, 1900905379, F00M990410, F00M990411, F00M990412 | 6-303-4N

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53507 / 6003-2RS
• Dimensions: 17mm ID x 35mm OD x 10mm W
• Interchange Numbers: Bosch F00M990405, F00M990405370, F00M990432 | 6-103-4N

⚡ Slip Ring Specs

• Dimensions: 7.1mm ID x 16.1mm OD x 52mm L
• Replaces OEM: Bosch 1124303007, F00M143019
• Interchange Numbers: 28-91852, 7120202, 313-24002

⚡ Plastic Bearing Tolerance Ring Specs

• Dimensions: 35mm ID x 44mm OD x 50mm L
• Replaces OEM: Bosch F00M146900
• Interchange Numbers: 46-91553, 130-07023, 92202019, w110-61

💕 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
