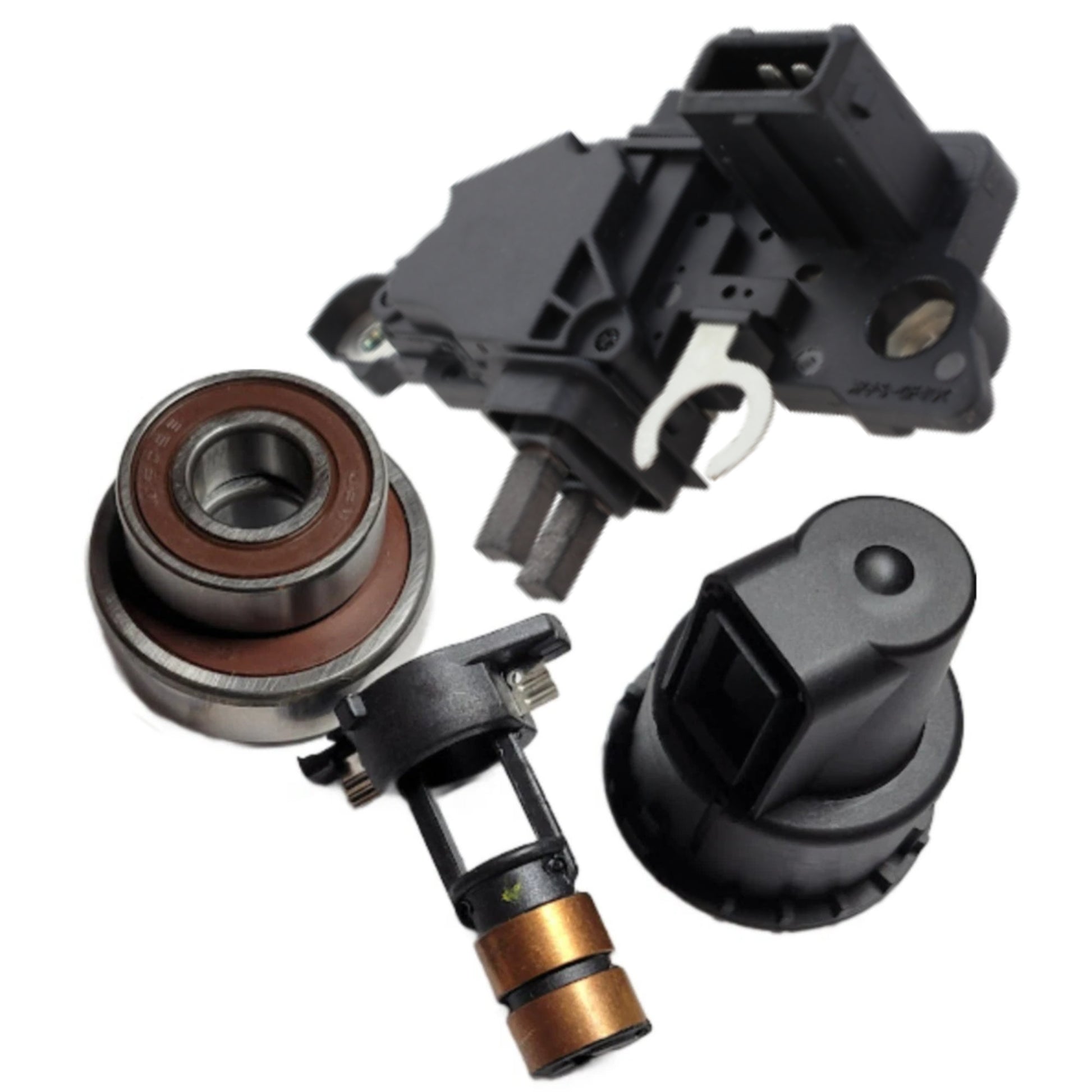

Alternator Rebuild Kit BMW 320 325 330 525 530 Z3 X5 w/ 120A Bosch 0124515050, 052 - 13882RK-A

**All these models have other options. Please verify the correct option. This is for the 120 Amp Bosch with the Airduct 0124515050, 0124515052, 0124515097 - Other options See 13970RK-A, 13986RK-A, 11083RK-A, 23347RK-A, 13971RK-A
BMW Car
320i L6 2.2L 2171cc 2001-2005 with 120 Amp Bosch
325Ci L6 2.5L 2494cc 2004-2006 with 120 Amp Bosch, with Airduct
325Ci L6 2.5L 2494cc 2001-2003 with 120 Amp Bosch
325i L6 2.5L 2494cc 2004-2005 with 120 Amp Bosch, with Airduct
325i L6 2.5L 2494cc 2001-2003 with 120 Amp Bosch
325xi L6 2.5L 2494cc 2004-2005 with 120 Amp Bosch, with Airduct
325xi L6 2.5L 2494cc 2001-2003 with 120 Amp Bosch
330Ci L6 3.0L 2979cc 2004-2006 with 120 Amp Bosch, with Airduct
330Ci L6 3.0L 2979cc 2001-2003 with 120 Amp Bosch
330i L6 3.0L 2979cc 2004-2005 with 120 Amp Bosch, with Airduct
330i L6 3.0L 2979cc 2001-2003 with 120 Amp Bosch
330xi L6 3.0L 2979cc 2004-2006 with 120 Amp Bosch, with Airduct
330xi L6 3.0L 2979cc 2001-2003 with 120 Amp Bosch
525i L6 2.5L 2494cc 2001-2003 with 120 Amp Bosch
530i L6 3.0L 2979cc 2001-2003 with 120 Amp Bosch
Z3 L6 2.5L 2494cc 2001-2002 with 120 Amp Bosch
Z3 L6 3.0L 2979cc 2001-2002 with 120 Amp Bosch
BMW Truck
X5 L6 3.0L 2979cc 2001-2006 with 120 Amp Bosch

Alternator Manufacturer and Factory #s
BMW 12-31-7-501-595, 12-31-7-501-597, 12-31-7-501-599, 12-31-7-501-690, 12-31-7-501-755, 12-31-7-515-317; 12-31-7-501-595, 12-31-7-501-597, 12-31-7-501-599, 12317501690, 12317501755
Bosch 0 124 515 050, 0 124 515 052, 0 124 515 097; 0124515050, 0124515052, 0124515097
Bosch Remanufactured AL0703X
ERA 210464
Excel 10620
Hollander 60803
Lester 13882
jn 400-24096
PIC Picture ID 220-5115
Wilson 90-15-6458

• Voltage Regulator with Brushes - Specifications: 12 Volt, A-Circuit, 14.3 Voltage Set Point, for Bosch on BMW Alternators, Without temperature compensation., Terminal designation: L-IG // Replaces: BMW 12317501752, 12317559183, XXXX7559183, Bosch F00M145245, F00M145251, F00M145360, F00MA45236, Hitachi 130615, 2500615 Other 80201185, 80201185A, 80201185B, 80201185C, 230-24113, 230-24078, W080-35, 09129, GNR-B002, 176-032 - IB251

• Drive End DE Bearing 54700 17x47x14mm 6303-2RS Replacing 1120905001, 1120905004, 1120905021, 1120905037, 1120905039, 1120905068, 1120905074, 1120905516, 1120905518, 1120905533, 1900905304, 1900905326, 1900905331, 1900905376, 1900905378, 1900905379, F00M990410, F00M990411, F00M990412 - 6-303-4W

• SRE Rear Rotor Bearing 53507 17x35x10mm 6003-2RS Replacing F00M990405, F00M990405370, F00M990432 - 6-103-4W

• SlipRings 52mm L, 7.1mm ID, 16.1mm OD Replacing Bosch 1124303007, F00M143019 Other 7120202, 313-24002 - 28-91852

• Plastic Bearing Tolerance Ring, 35mm ID, 44mm OD x 50mm, Replacing Bosch F00M146900 Other, 130-07023, 92202019, w110-61 - 46-91553
