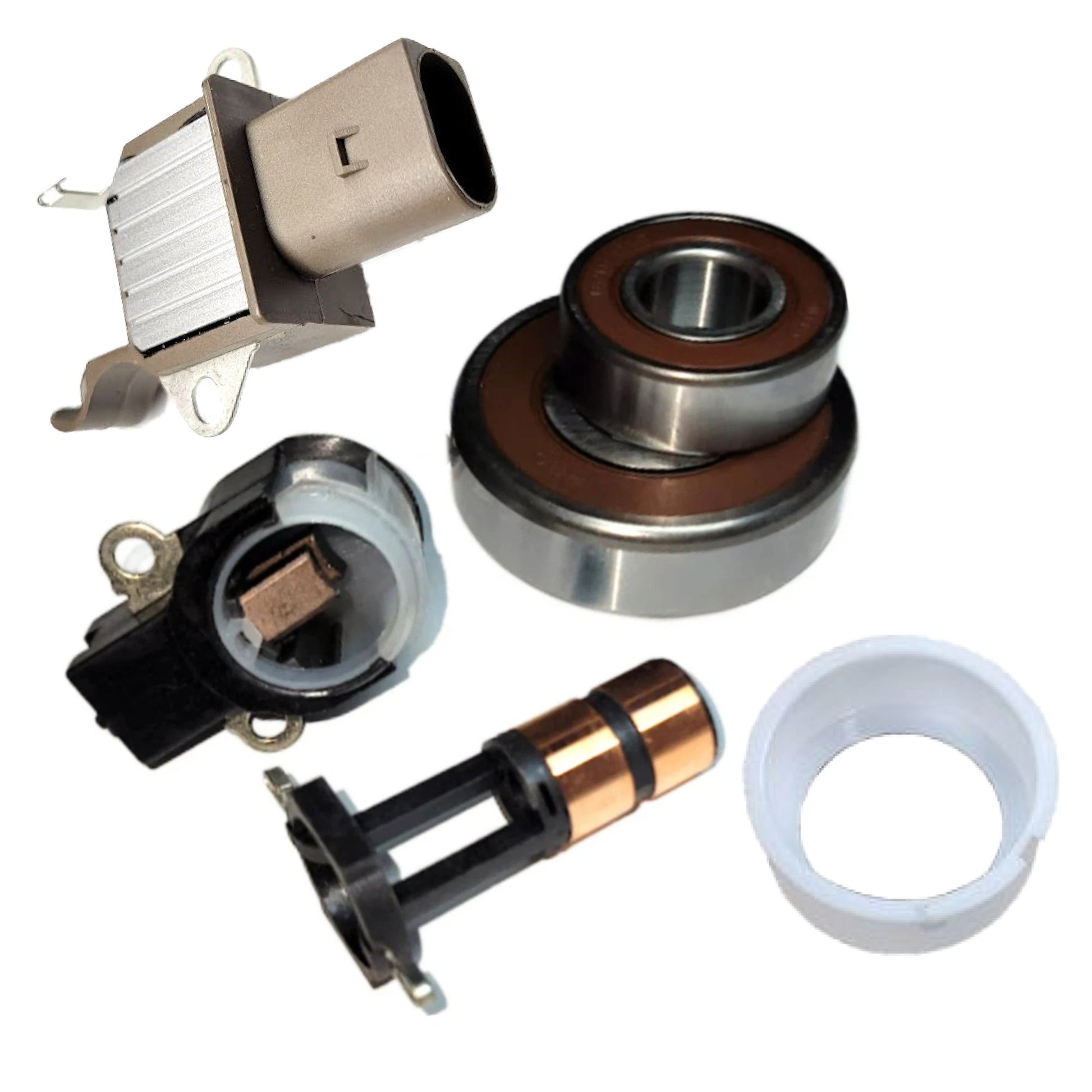

Alternator Rebuild Kit Camry Corolla RAV4 with 100 Amp 104211-4160 - 11941RK-A

Toyota Camry L4 2.5L 2487CC 2018-2019 100 Amp Japan Built
Toyota Corolla L4 2.0L 1987CC 2020 100 Amp Japan Built Manual
Toyota Corolla L4 2.0L 1987CC 2019 100 Amp Japan Built
Toyota Corolla L4 2.0L 1987CC 2019-2022 100 Amp
Toyota RAV4 L4 2.5L 2487CC 2019-2024 100 Amp

Alternator Manufacturer and Factory #s
Bosch Aftermarket AL3404X (Reman)
DENSO 104211-4160
Lester 11941
Toyota 27060-25010

• Voltage Regulator - Specifications: 12 Volt, LIN, 13.7 voltage set point, B-CIRCUIT, Plug Code 065 // Replaces Denso GC10 4930, 4880 01F05, Other W085-418, VRH2005-224, 216-133 - IN4930

• Rotor SRE Bearing 15x35x11mm 6202-2RS, Ref# 949100-0070, 949100-0160, 949100-0330, 949100-0340, 949100-2950, 949100-2951, 949100-3160, 949100-3161, 949100-3630, 949100-3730, 949100-3731, 53500 - 6-202-4W

• Drive End Bearing 17x47x14mm 6303-2RS, Ref# 949100-1010, 949100-1840, 949100-2701, 949100-2820,  54700 - 6-303-4W

• SRE Bearing Tolerance Ring 35mm ID x 37mm OD x 14mm W - W115-250

• Brush Holder Assembly with Brushes, Replacing 021620-3030 - 39-8206

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854
