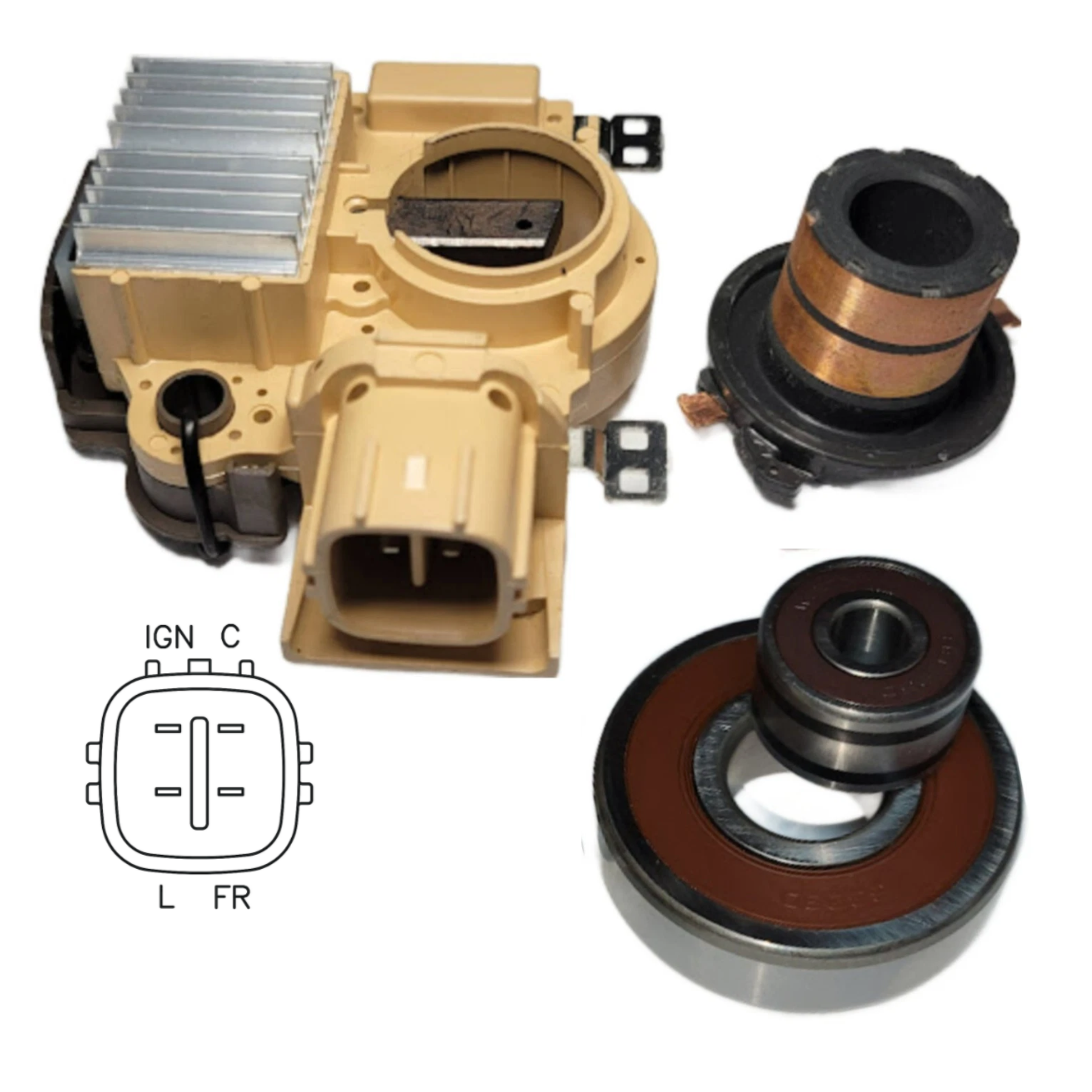

• Alternator Rebuild Kit for Acura RSX Honda CR-V for Mitsubishi A002TB7591, A002TB7591ZE, A2TB7591, A2TB7591ZE, A002TC0691, A002TC0691A, A2TC0691

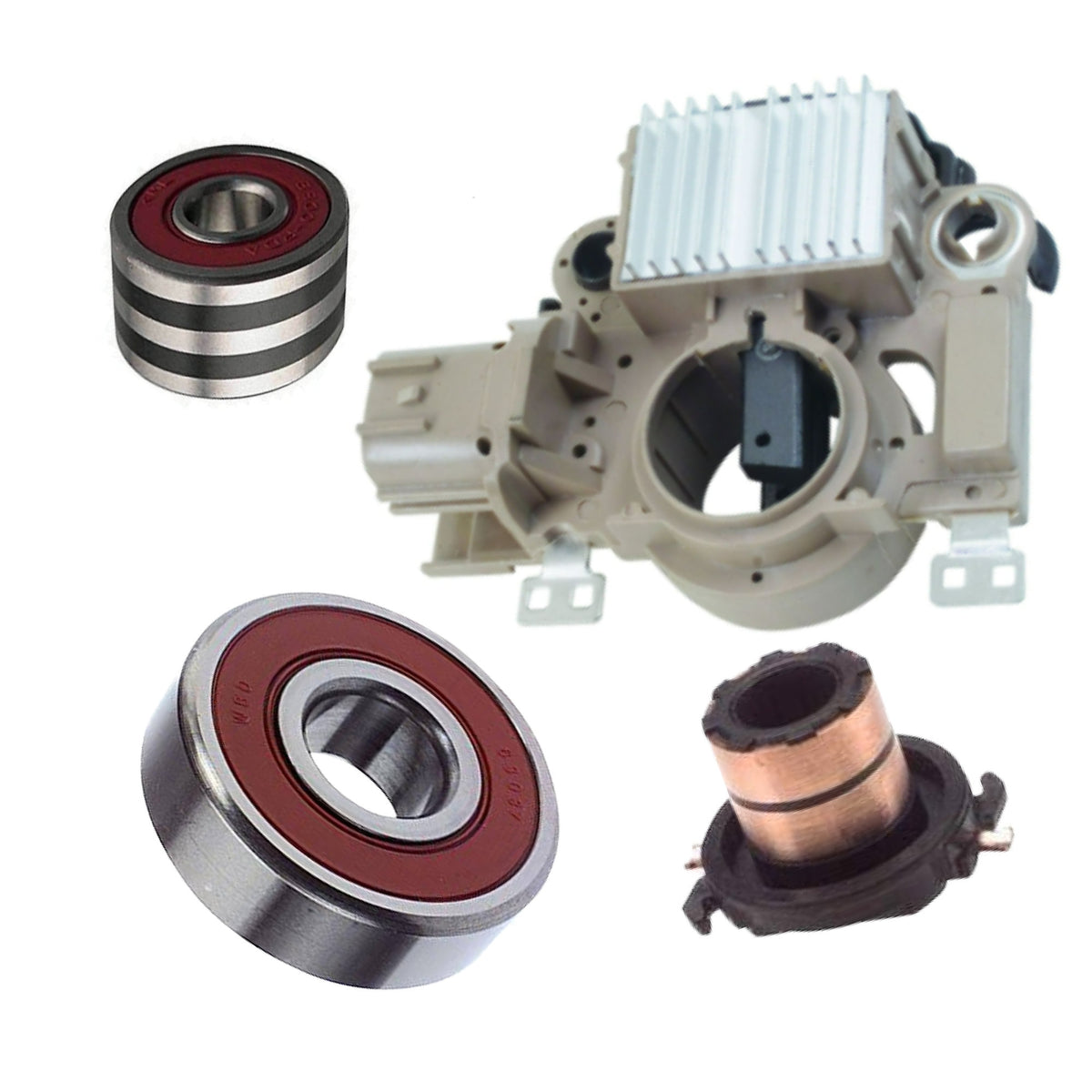

  • Alternator Rebuilt Kit; Voltage Regulator Brushes Bearings Slip Ringsfor 2002-2006 CR-V RSX Base A5TB7591, A2TC0691, A2TB7591 - 13966RK-A
1 2

Alternator Rebuild Kit CR-V RSX - 13966RK-A

Alternator Rebuild Kit CR-V RSX - 13966RK-A

13966RK-A

$49.99 USD
$49.99 USD
Sale Sold out
Shipping calculated at checkout.
  • Fast Shipping
  • 30 Day Money Back Guarantee
  • 1 Year Warranty
View full details

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

  • Acura: RSX (2002-2006 L4 2.0L Base Model w/ Mitsubishi Alternator)
  • Honda: CR-V (2002-2006 L4 2.4L)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

  • Acura / Honda OE: 31100-PND-004, 31100-PND-004RM, 31100-PNC-004, AHGA55, AHGA61
  • Mitsubishi OE: A002TB7591, A002TB7591ZE, A2TB7591, A2TB7591ZE, A002TC0691, A002TC0691A, A002TC0691ZE, A2TC0691, A2TC0691A, A2TC0691ZE
  • Bosch Reman: AL1290X
  • Lester / PIC References: Lester 13966
  • Other Crossovers: ERA 209356, Excel 10668, Hollander 60827, 60938, J&N 400-48040, Remy Light Duty 12462, Wilson 90-27-3315

🔧 Component-Specific Technical Data

⚡ Voltage Regulator with Brushes Specs

  • Technical Specifications: 12 Volt, A-Circuit, IG-C-L-FR Terminals, 14.6 Vset, 24mm ID Slip Ring Cover, With Capacitor, Soft Start, Lamp Activated
  • Design: For Mitsubishi Alternators on Acura & Honda
  • Replaces OEM: Honda 31150-PLC-004, 31150-PLM-A01, 31150-PNC-004, 31150PLC004, 31150PLMA01 | Mitsubishi 487, 495, 4954726D, A866X48782
  • Aftermarket Crossovers: IM851, T5851, W085-214, 230-48112, VRH2009-92, VRH2009-94, 196-097, 28653, MT-323, 1J-60049, 8003-3031, 8003-3173

⚡ Slip Ring Specs

  • Design: For Mitsubishi ER/IF, IR/IF Alternators
  • Dimensions: 13.5mm ID x 22.7mm OD
  • Interchange Numbers: W165-12, MT-265, 193-501, 1J-32500, 7103-12, 28-83852

⚡ Drive End Bearing (Front) Specs

  • Industry Number: 54700 / 6303-2RS
  • Dimensions: 17mm ID x 47mm OD x 14mm W
  • Interchange Numbers: S930P18870, S930P31070, S930P33970, S930P63070, S930P81170, 6-303-4W

⚡ Rotor SRE Bearing (Rear) Specs

  • Industry Number: 52312 / SC8A05LHI
  • Dimensions: 8mm ID x 23mm OD x 14mm W
  • Interchange Numbers: S930P18570, S930P63605, S930P63670, 10-800-4

💕 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!

  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
This is a bundle with no reviews of its own. The merchant set it to show reviews from the products it includes.
B
BNorris
I order these 10 at a time

I order these 10 at a time. They are excellent quality for use in all the work I do. These 6303 and 6203 bearings are found in more things than listed. Idler's tensioners, almost every alternator, and even random home needs. A good one to have on hand!
