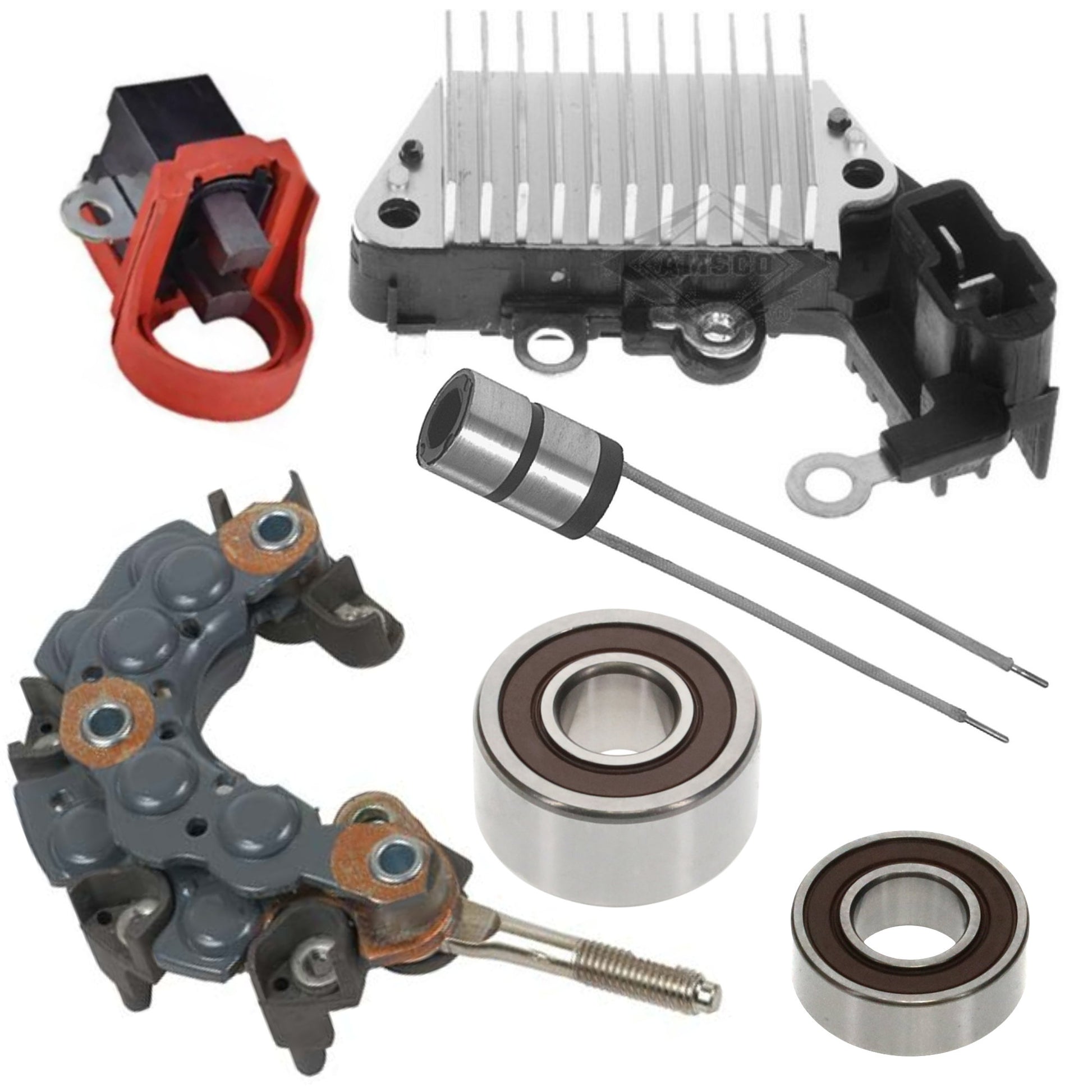

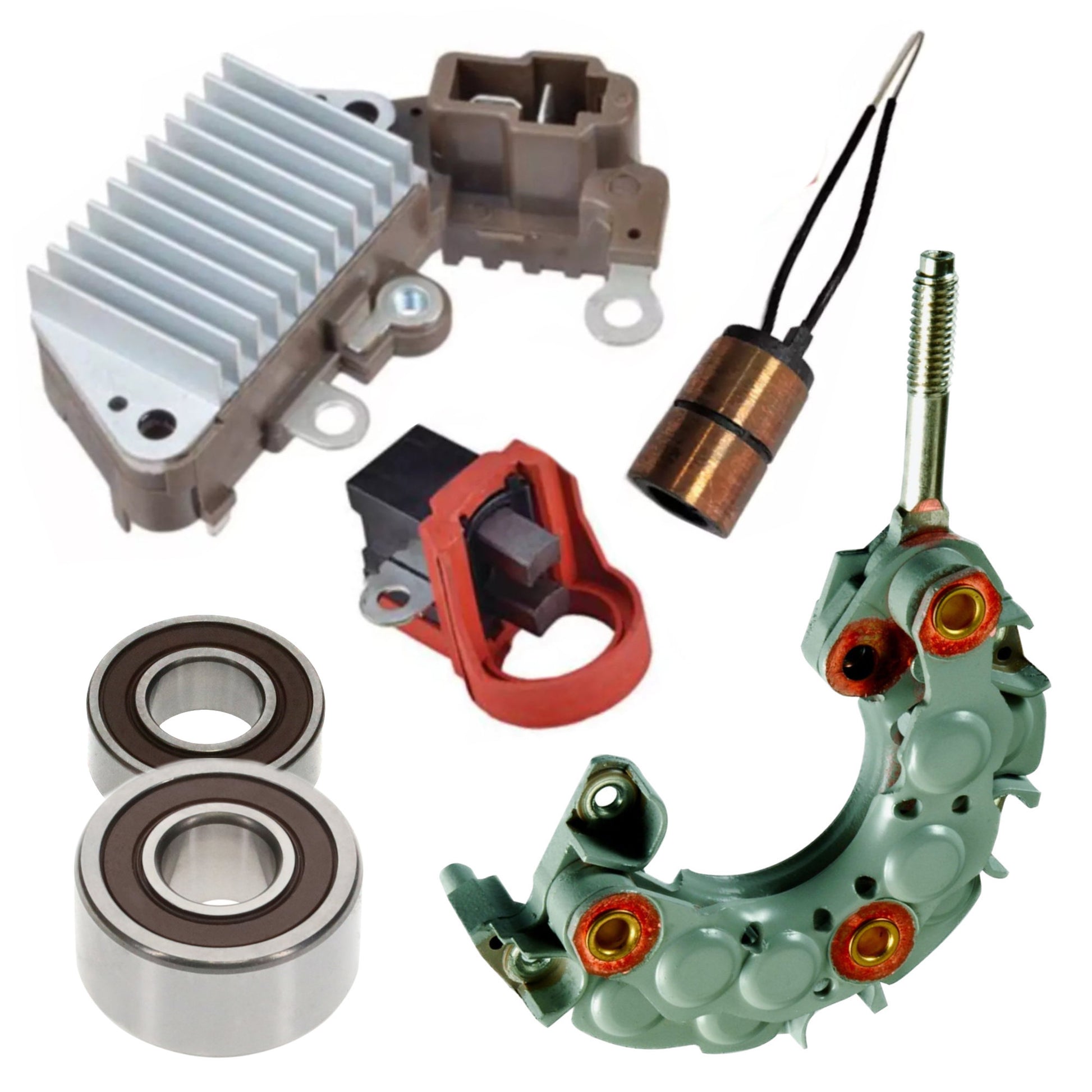

Alternator Rebuild Kit for 100211-4700 100211-4701 RE42778 RE72915 TY6760 John Deere 12080PRK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• John Deere 2-Wheel Drive Tractor:
  • 5103 (3-179 Diesel / JD Powertech 2.9L Dsl) (2002-2007)
  • 5105 (3-179 Diesel / JD Powertech 2.9L Dsl) (2002-2007)
  • 5203 (3-179 Diesel / JD Powertech 2.9L Dsl) (2002-2007)
  • 5205 (3-179 Diesel / JD Powertech 2.9L Dsl) (2002-2007)
  • 5215 (JD Powertech 2.9L Dsl) (1997-2007)
  • 5300N (3-179 Diesel) (1992-2007)
  • 5303 (3-179 Diesel / JD Powertech 2.9L Dsl) (2002-2007)
  • 5310N (3029 J.Deere Dsl. / JD Powertech 2.9L Dsl) (1997-2007)
  • 5315 (JD Powertech 2.9L Dsl) (1997-2007)
  • 5320N (3-179 Diesel) (1997-2007)
  • 5400N (3-179 Diesel) (1992-2007)
  • 5500N (4-239 Diesel) (1994-2007)
• John Deere Agricultural Tractor:
  • 5103 / 5203 / 5303 / 5310 India Tractor
  • 5103S India Tractor (3-179 Diesel) (2002-2007)
  • 5200 / 5300 / 5400 (3 Cyl. 2.93L 2912cc 178cid) (1992-1998)
  • 5210 / 5310 (3 Cyl. 2.93L 2912cc 178cid) (1998-2000)
  • 5215F&V / 5315F&V (JD Powertech 2.9L Dsl) (1997-2007)
  • 5220 / 5320 (3 Cyl. 2.93L 2912cc 178cid) (2001-2004)
  • 5500 (4 Cyl. 3.91L 3883cc 237cid) (1996-1998)
• John Deere Utility Vehicle:
  • Gator CS Compact Series (Kawasaki 8HP) (2005)
  • Gator CX Compact Series (Kawasaki 10HP) (2005)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Denso OE: 100211-4700, 100211-4701, 100211-4702, 100211-4703
• John Deere OE: RE42778, RE46006, RE72915, RE729151, SE501379, TY6760
• Lester / PIC References: Lester 12080 | PIC 290-182
• Other Crossovers: Delco RA00134, JN 400-52098, Wilson 70-29-12080

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, A-Circuit, Low Side Drive Regulator, IG-L Terminals, 14.5 Voltage Set Point
• Replaces OEM: Denso 126000-0600, 126000-0760, 126000-1160, Honda 31150-PE9-941
• Aftermarket Crossovers: 216-010, KO-162, 230-52027, VRH2005-39, AND6034, IN254

⚡ Rectifier Diode Bridge Specs

• Technical Specifications: 83mm OD, M6 x 1.0 x 35mm Battery Terminal, 8-40A Diodes
• Replaces OEM: Daihatsu 27357-87201-000, 27357-87206-000 | Denso 021580-3080, 021600-1640 | Honda 31700-ZG5-L01 | Iseki 6281-229-029-0 | Ishikawajima 18544-6229 | John Deere M805144 | Kubota 15881-64851 | Toyota 27362-15041
• Aftermarket Crossovers: W065-157, 211-240, 77904028, INR723

⚡ Brush Holder Assembly with Brushes and Seal Specs

• Replaces OEM: Denso 021620-2010, 021620-2180, 021620-2200, 021620-2201, 021620-2630, 021620-2750 | Honda 31105-PT0-B91
• Interchange Numbers: 39-8200

⚡ Drive End Bearing (Front) Specs

• Industry Number: 348
• Dimensions: 15mm ID x 38mm OD x 19mm W
• Replaces OEM: Denso 949100-3360, 949100-3361, 949100-3380
• Interchange Numbers: 10-2022-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53207
• Dimensions: 15mm ID x 32mm OD x 11mm W
• Replaces OEM: Denso 949100-3170, 949100-3230, 949100-3650, 949100-3660, 949100-3670 | Honda 31114-PE9-942
• Interchange Numbers: 217-020, 6-3102-4W

⚡ Slip Ring Specs

• Dimensions: 8.9mm ID x 14.6mm OD x 23.9mm Length
• Interchange Numbers: 7190904A, 313-52001, 14520W, 213-500, ND-492, 28-82853

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
