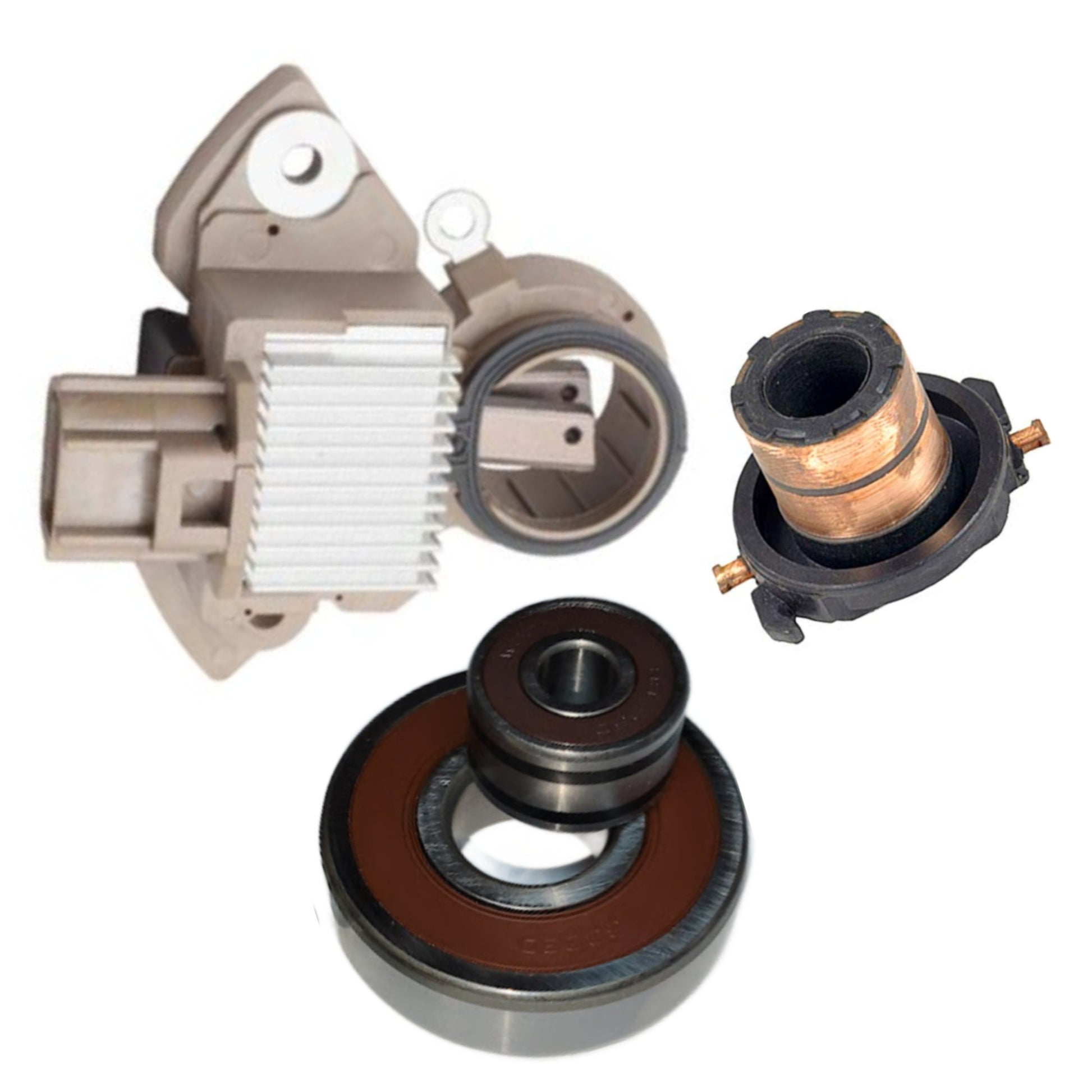

Alternator Rebuild Kit for 175 Amp Taurus Edge Explorer MKS MKT MKX A003TX0091 - 11271RK-A

Ford Car
Taurus V6 3.5L 2010-2012 w/ 175 Amp
Taurus X V6 3.5L 2008-2009 w/ 175 Amp

Ford Truck
Edge V6 3.7L 2011-2013 w/ 175 Amp
Explorer V6 3.5L 2011-2012 w/ 175 Amp
Flex V6 3.5L 2009-2010 w/ 175 Amp

Lincoln Car
MKS V6 3.7L 2009-2012 w/ 175 Amp

Lincoln Truck
MKT V6 3.7L 2010-2012 w/ 175 Amp
MKX V6 3.7L 2011-2013 w/ 175 Amp

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL7693X
Excel 8523
Ford 8A4T-10300-AC, 8A4Z-10346-A, 8A4T-AC
Lester 11271
Mitsubishi A003TX0091, A003TX0091ZC, A3TX0091
Motorcraft GL-933

• Voltage Regulator with Brushes - Specifications: 12 Volt, A-Circuit, 14.0 VOltage Set Point, Mitsubishi IR/IF Alternators, AS-RC-LI Terminals, Field Short Circuit Protected, RC or Stator Activated, Regulation is Controlled by Vehicle PCM, Thermal Load Protection // Replaces Mitsubishi 622, 6224Y12N, 6224Z04A, 62259204, 6229204C, Other 230-48170, 230-48137, 62259204-01432, 8003-3133, 80033133, VRH2009-140, VRH2009-140, T52013, W085-328, 196-108, 28668, GNR-M107 - IM622

• Drive End DE Bearing 54700 17x47x14mm 6303-2RS - 6-303-4

• Rotor SRE Bearing 52312 8X23X14mm SC8A05LHI - 10-800-4

• SlipRings for Mitsubishi Alternators 13.5mm ID x 22.7mm OD -W165-10, 193-501 - 28-83852
