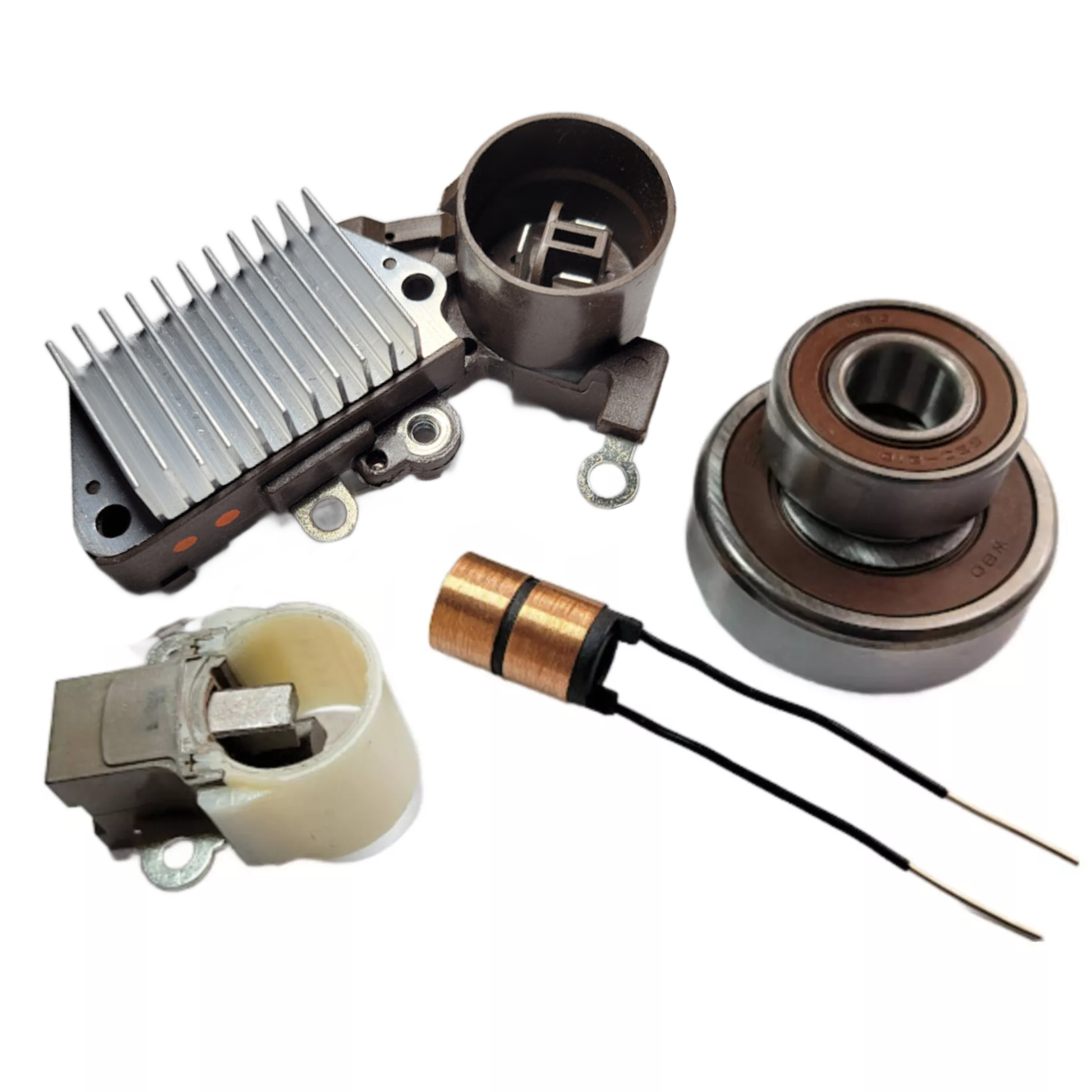

Alternator Rebuild Kit for 1990-1992 Land Cruiser 4.0L Internal Fan - 13562RK-A

Toyota Land Cruiser L6 4.0L 3956cc 1990-1992 90 Amp Internal Fan

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL3239X
Denso 100211-6130, 100211-6131, 210-0177
Excel 10172
Lester 13562
Toyota 27060-61100, 27060-61100-84
JN 400-52333
PIC Picture ID 290-330
Remy Light Duty 14958
Wilson 90-29-5150

• Voltage Regulator 12 Volt, A-Circuit, S-IG-L Terminals, 14.4 Voltage set point, w/ LRC • for Denso IR/IF Alternators : • 63.5mm Mounting Length - Replaces Denso 126000-0931, 126000-0932, 126000-1400, 126000-1450, 126000-1530, John Deere RE51297, TY6684, Toyota 27700-11050, 27700-70030, 27700-76020 Other 216-039, 8090-4385, 30-52030, 230-52051, MFVR01910, MFVR01912, VRH2005-17A, VRH2005-17DG - IN436

• Drive End Bearing 55222 17x52x16mm - 10-3042-4W

• Rotor Bearing 53514 15x35x13mm - 10-2021-4W

• Brush Holder Assembly with Brushes Ref# 021620-2530, 021620-2720 - 39-8203

• Slip Ring Commutator 8.9 ID 14.6 OD 23.9 Length 7190904A, 313-52001 - 28-82853
