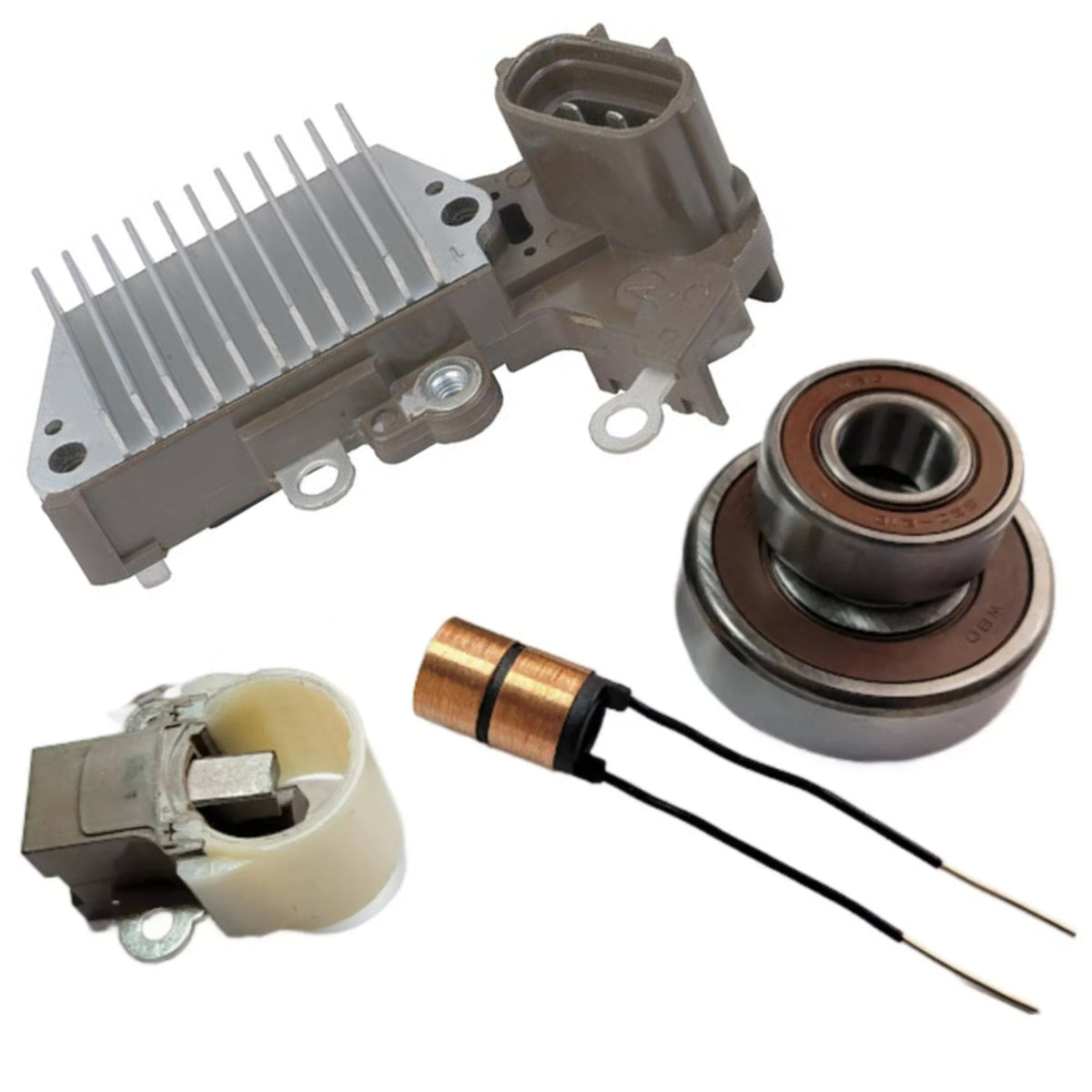

• Alternator Rebuild Kit for 1993-1997 Land Cruiser 1996-1997 LX450 - 13497RK-A

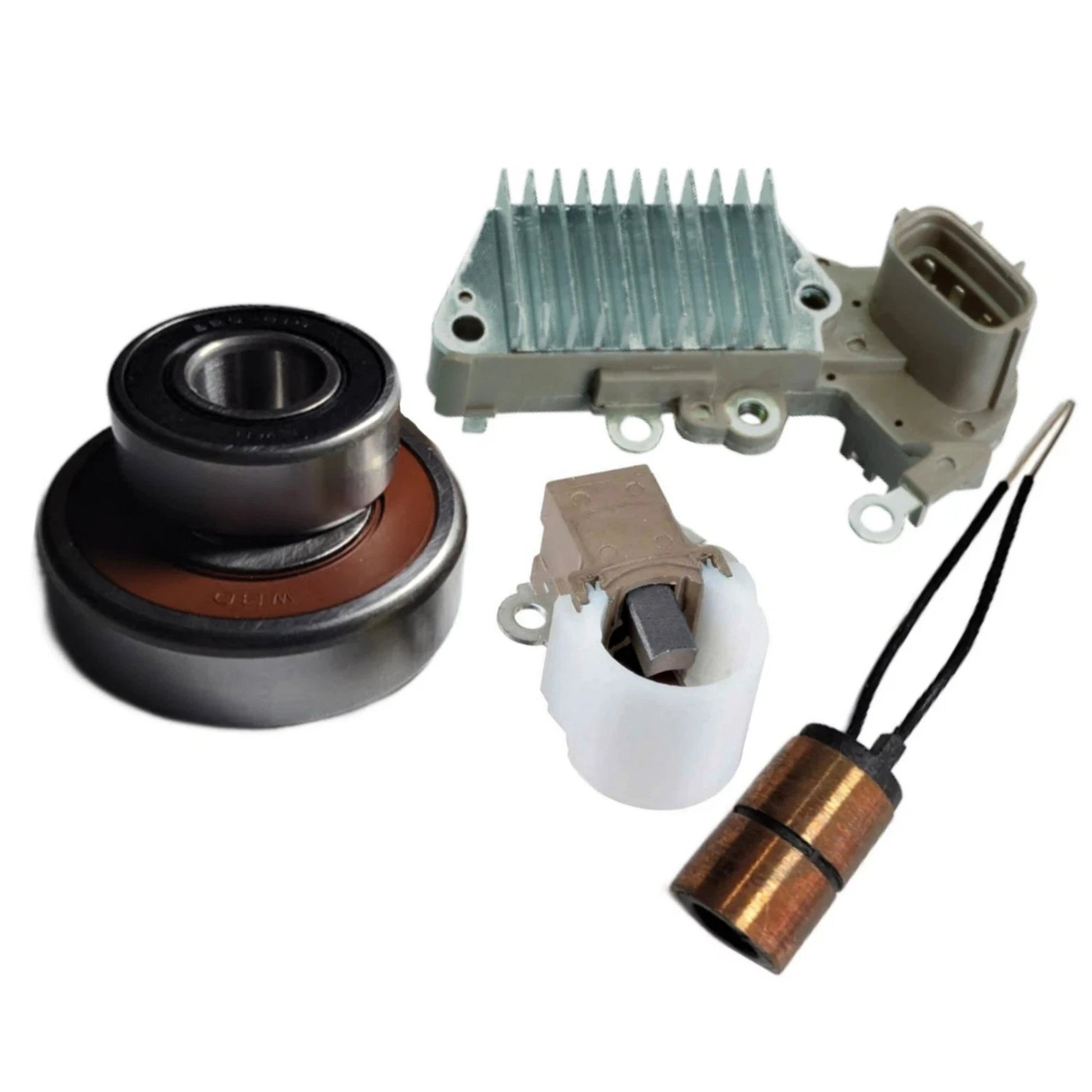

  • Alternator Regulator Brushes Bearings Sliprings Kit for 1993-1997 Land Cruiser 1996-1997 LX450 - 13497RK-A
1 2

Alternator Rebuild Kit for 1993-1997 Toyota Land Cruiser 1996-1997 Lexus LX450 - 13497RK-A

Alternator Rebuild Kit for 1993-1997 Toyota Land Cruiser 1996-1997 Lexus LX450 - 13497RK-A

13497RK-A

$39.99 USD
$39.99 USD
$39.99 each
Sale Sold out
Shipping calculated at checkout.
  • Fast Shipping
  • 30 Day Money Back Guarantee
  • 1 Year Warranty
View full details

Need to rebuild your vehicle's alternator? This premium rebuild kit's components are engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

  • Lexus: LX450 (1996-1997 L6 4.5L)
  • Toyota: Land Cruiser (1993-1997 L6 4.5L)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

  • Lexus / Toyota OE: 27060-66070, 27060-66070-84
  • Denso OE: 101211-5270, 210-0181 (12 Volt, 80 Amp, V2 Pulley)
  • Bosch Reman: AL3270X
  • Lester / PIC References: Lester 13497
  • Other Crossovers: Delphi RM4048, Excel 10308, Hollander 58528, J&N 400-52207, Remy Light Duty 14838, Wilson 90-29-5264

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

  • Technical Specifications: 12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Vset, w/ LRC
  • Replaces OEM: Denso 126000-1730, 126000-1750, 126000-1930, 126000-2250 | Toyota 27700-11070, 27700-11080, 27700-66040, 27700-75020
  • Aftermarket Crossovers: IN437, 216-045, W085-104, VRH2005-30A, 230-52071, 230-52051

⚡ Brush Holder Assembly Specs

  • Features: Includes Brushes
  • Replaces OEM: Denso 021620-2530, 021620-2720
  • Interchange Numbers: 39-8203

⚡ Drive End Bearing (Front) Specs

  • Industry Number: 55222
  • Dimensions: 17mm ID x 52mm OD x 16mm W
  • Interchange Numbers: Denso 949100-3330, 949100-4370, 949100-5010 | 10-3042-4W

⚡ Rotor SRE Bearing (Rear) Specs

  • Industry Number: 53514
  • Dimensions: 15mm ID x 35mm OD x 13mm W
  • Interchange Numbers: Denso 949100-2790, 949100-3980 | 10-2021-4W

⚡ Slip Ring Specs

  • Dimensions: 8.9mm ID x 14.6mm OD x 23.9mm L
  • Interchange Numbers: 7190904A, 14520-W, 313-52001, 28-82853

💕 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
