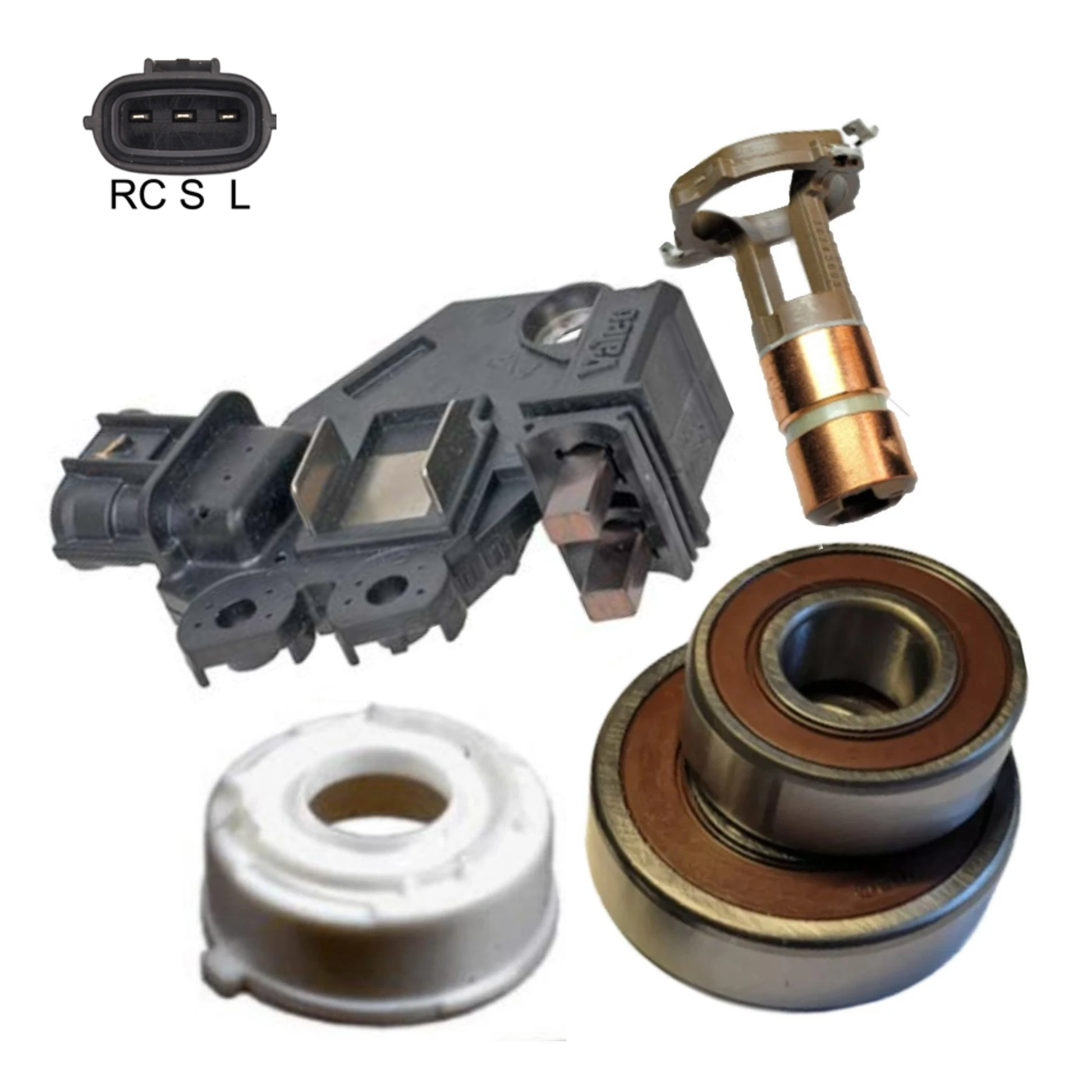

Alternator Rebuild Kit for 2.5L Altima Sentra Rogue TG12C032, TG12S217, TG11S092 - 11258OERK-A

Nissan Altima L4 2.5L 2007-2013
Nissan Sentra L4 2.5L 2007-2012
Nissan Rogue L4 2.5L 2011-2013
Nissan Rogue Select L4 2.5L 2014-2015

• Voltage Regulator with Brushes, Replaces: Valeo 09740, 09740OE, 09742OE, 266-024, GNR-M090, GNR-V041H, M556, Valeo 2606243, 2616415, 2650447, 702155 Specifications: 12 Volt, B-Circuit, 14.40 Voltage Set Point, Lamp / Stator Activated, Soft Start Function, Over Voltage lamp Indication, Field, Lamp Short Circuit Protection, C-S-L Terminals - 2650447

• Rear Rotor SRE Bearing 53500 15x35x11mm - 6202 2RS - 6-202-4

• Drive End Bearing 54700 17x47x14mm - 6303 2RS - 6-303-4

• Tolerance Ring / Bearing Cap 35mm ID x 37mm OD x 19mm OA Height Replacing 2545308, 591002 - 46-94435

• Slip Ring, 48.3mm L / 9mm ID / 14.9mm OD Replaces Valeo 2606286 - 24-94867

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL2407X, AL2427X, AL2429X
Excel 10946
Hollander 50168
Nissan, Infiniti 23100-JA02A, 23100-JA02B, 23100-JA02C, 23100-JA04D, 23100-JA04A, 23100-JA04C, 23100-JA04D, 23100-JA02C
Valeo 2650364, TG12C032, TG12S217, 849054, 2650364A, 2650364B, TG12S217, 2609555A, TG11S092, 849054, 2609555, TG11S110, TG12C116
Lester 11258, 11458, 11567
