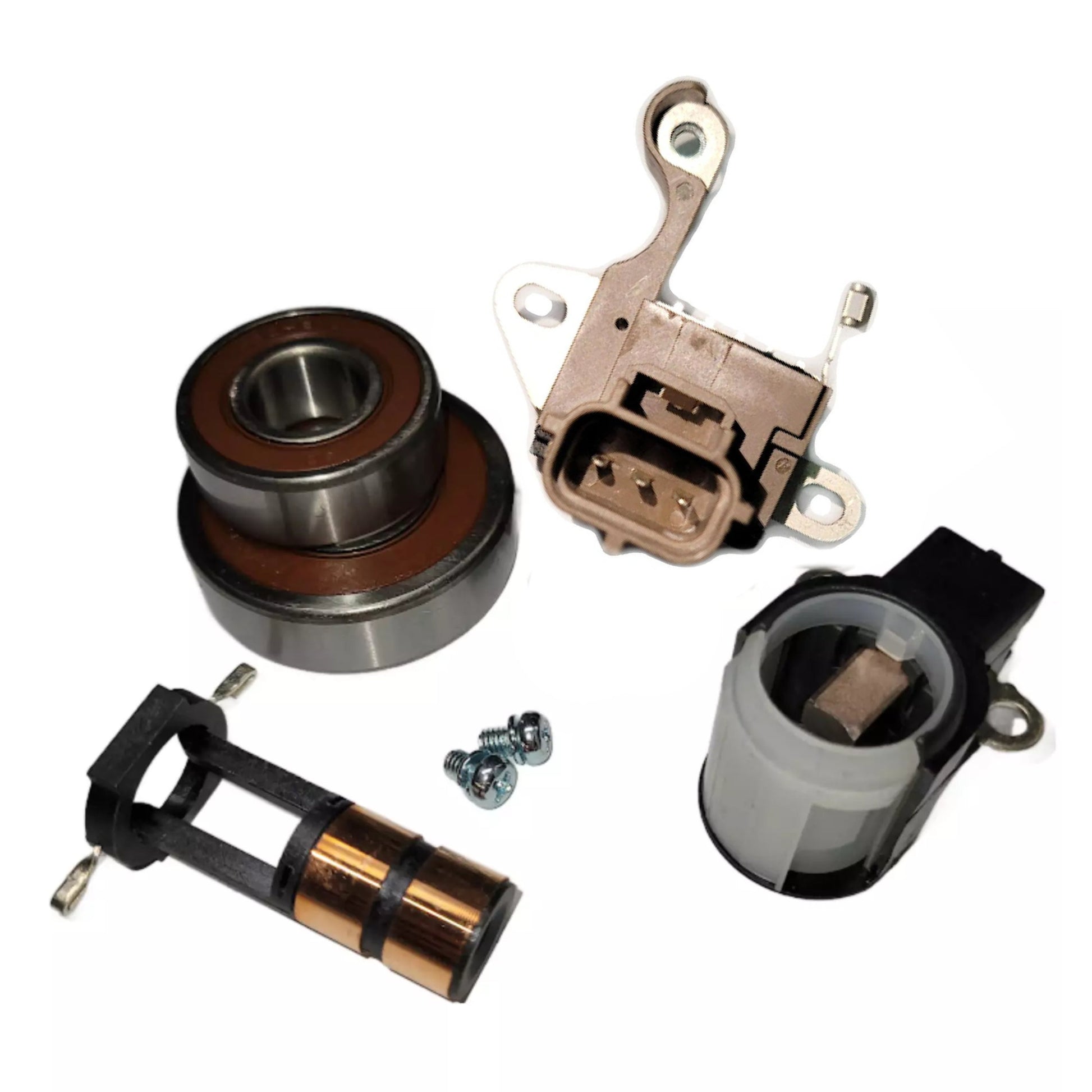

Alternator Rebuild Kit for 200 Amp Fusion Taurus, Explorer, MKZ MKC MKT Denso 104210-6571, 104211-0300 - 11664RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚙 Vehicle Application Details

• Ford Car:
  • Fusion L4 1.5L VIN D (2014-2016) *With Denso 200 Amp, With Heated & Cooled Seats
  • Fusion L4 1.6L (2013-2014) *With Denso 200 Amp, With Heated & Cooled Seats
  • Fusion L4 2.0L (2013-2016) *With Denso 200 Amp
  • Fusion L4 2.0L (2017-2020) *With Denso 200 Amp, With Heated & Cooled Seats
  • Fusion L4 2.5L (2013-2016) *With Denso 200 Amp
  • Fusion L4 2.5L (2017-2020) *With Denso 200 Amp, With Heated & Cooled Seats
  • Special Service Police Sedan L4 2.0L (2016) *With Denso 200 Amp
  • Taurus L4 2.0L (2013-2017) *With Denso 200 Amp
• Ford Truck:
  • Edge L4 2.0L (2015-2018) *With Denso 200 Amp (For Denso 104211-1151 - See Kit # 11887)
  • Edge L4 2.0L (2020-2023) *With 200 Amp Denso, Without Heated & Cooled Seats
  • Edge L4 2.0L (2024) *With 200 Amp Denso, Without Heated & Cooled Seats (For Denso 104211-1151 - See Kit # 11887)
  • Explorer L4 2.0L (2013-2015) *With Denso 200 Amp
  • Explorer L4 2.3L (2016-2019) *With Denso 200 Amp
• Lincoln Car:
  • MKZ L4 2.0L (2013-2020) *With Denso 200 Amp
• Lincoln Truck:
  • MKC L4 2.0L (2015-2019) *With Denso 200 Amp
  • MKC L4 2.3L (2015-2019) *With Denso 200 Amp
  • MKT L4 2.0L (2013-2016) *With Denso 200 Amp
  • MKT V6 3.5L (2013-2019) *With Denso 200 Amp
  • MKT V6 3.7L (2013-2019) *With Denso 200 Amp
• ⚠️ Application & Option Notes:
  • Other alternator options on these applications: 150A (# 11668), 175A (# 11665), 175A (# 11983), 200A (# 11887), 220A (# 20268), 220-225A (# 11629), 240A (# 21492).

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Denso: 104210-6571, 104211-0300, TN104211-0300
• Ford OE: 2032790, 5272293, DG1Z-10346-D, FJ7Z-10346-A, FJ7Z-10346-B, G2GZ-10346-B, G2GZ-10346-H, DG1T-10300-AE, DG1T-10300-FA
• Bosch Reman: AL7699X
• Lester / PIC References: Lester 11664 | PIC 290-6305

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 14.0 Volts Default Set Point, PCM Controlled (RVC Technology)
• Replaces OEM: Denso 126600-3600, 126600-3960, 126600-4210, 3600, 4210, GC5B4210
• Aftermarket Crossovers: IN6368, 230-52158, 230-52184, AND6173, VRH2005-177, VRH2005-213, W085-353, 216-105, 26535, GNR-N336

⚡ Slip Ring Specs

• Design: For Hairpin Denso Alternators
• Dimensions: 5.8mm ID x 14.3mm OD x 11mm LL
• Interchange Numbers: 28-82854

⚡ Brush Holder Assembly & Hardware Specs

• Design: Brush Holder Assembly with Brushes
• Replaces OEM: 021620-3030
• Interchange Numbers: 39-8206
• Included Hardware: 2x Attaching Bolts (M4 x 0.7 x 5.7mm L | Part # 85-1205 x2)

⚡ Drive End Bearing (Front) Specs

• Included Bearings: Includes 2 different size Drive End bearings to cover all factory variations of this alternator:
• Option 1 (Industry # 54700 / 6303-2RS): 17mm ID x 47mm OD x 14mm W | Ref# 949100-1010, 949100-2820 | Part # 6-303-4W
• Option 2 (Industry # 55222): 17mm ID x 52mm OD x 16mm W | Ref# 949100-3330, 949100-4370, 949100-5010 | Part # 10-3042-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514 / 279
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 949100-2790, 949100-3980, 949100-4440, 10-2021-4W

See here for additional parts for this alternator
