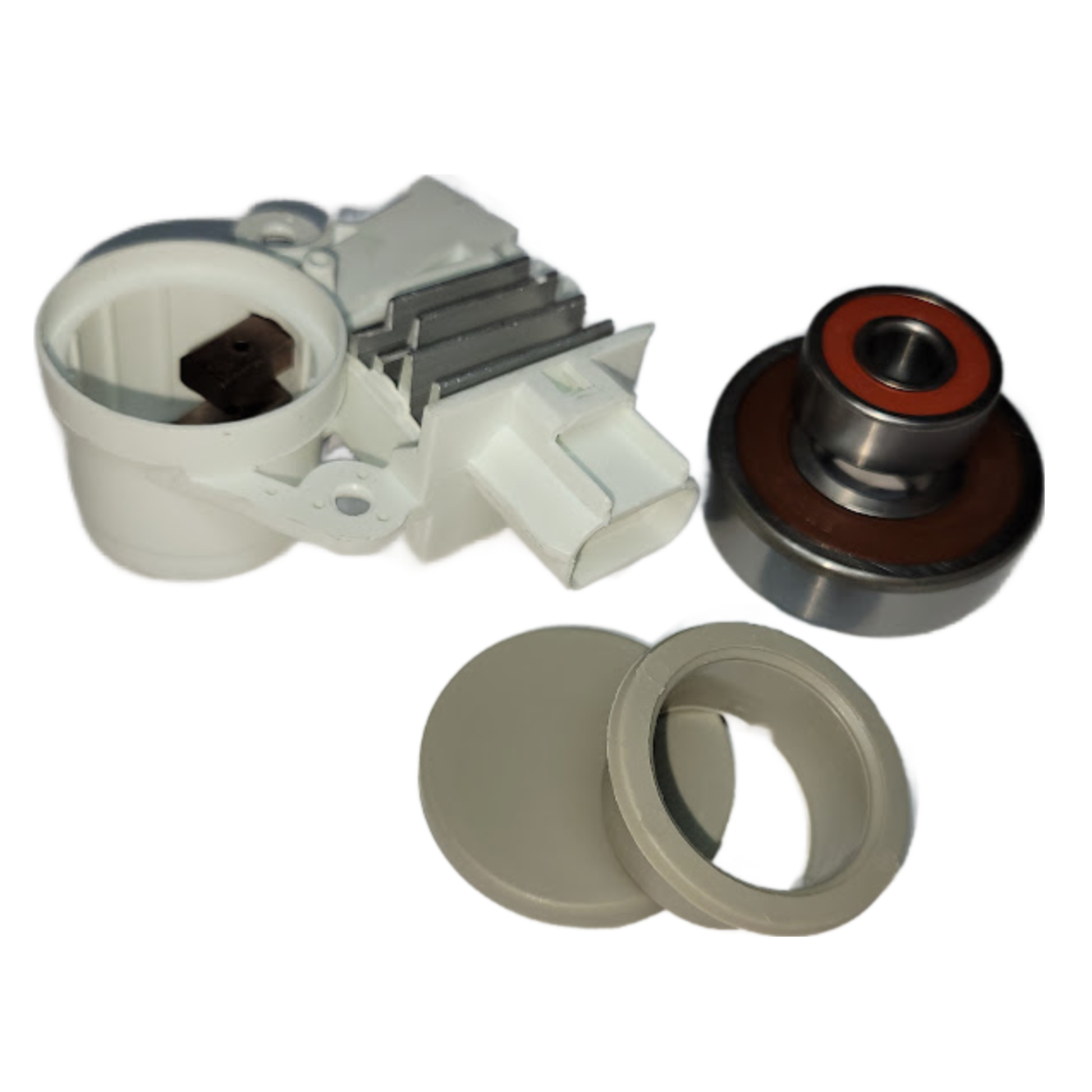

Alternator Rebuild Kit for 2000-2004 Ford Focus Zetec 2.0L - 8260RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚙 Vehicle Application Details

• Ford Car:
  • Focus L4 2.0L Zetec Engine (2000-2004)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Ford OE / Motorcraft: 98AB-10300-EB, 98AZ-10346-EA, 98AZ-10346-EARM, 98AZ-10V346-EARM, 98AZ-10V346-EBRM, 98AZ-10V346-ECRM, 98AB-EB, 98AB10300EB, 98AZ10346EA, 98AZ10346EARM, RM4U2J-10D309-AEC, GL456, GL-456, GL-456-RM, GL-8881-RM, GLV-8700-RM, GLV8456RM, NGL8260N
• Bosch Reman: AL7572X
• Lester Reference: 8260
• MFR Series / Family Type: 6G Series (Visteon CM)
• Other Crossovers: Excel 8458, JN 400-14108, Wilson 90-02-5106

📐 Component-Specific Technical Data

⚡ Voltage Regulator with Brushes Specs

• Technical Specifications: 12 Volt, A-Circuit, LI-RC-AS Terminals, 14.0 Voltage Set Point (White with Gray Cover*). Designed for Ford 6G Series IR/IF Alternators. Computer-controlled voltage regulation; regulation voltage controlled by vehicle PCM (PWM signal input to RC-terminal). LI-terminal output provides feedback to vehicle PCM, which fully controls the indicator lamp.
• Replaces OEM: Ford 4L3U-10C359-AA, 7L4E-10C359-AA, VP4F1U-10C359-AA, VP4L3U-10C359-AA
• Aftermarket Crossovers: F601, F601HD

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: F0JY10A303A, 6-303-4W

⚡ Rotor SRE Bearing (Rear) Specs & Hardware

• Industry Number: 52711 / 5-2711
• Dimensions: 10mm ID x 27mm OD x 11mm W
• Interchange Numbers: F8WU10A304AA, B10-50T1XDDCG19-01, ALT-C163, 10-1051-4W
• Included Hardware:
  • Bearing Dust Shield (Plastic Cover for 6G Ford Alternators, 39mm OD; Ref# 84505010 | Part # 46-2452)
  • Tolerance Ring (27.2mm ID x 28.7mm OD x 15.2mm W; Ref# 8550500 | Part # 46-2505)
• Additional parts for this alternator here
