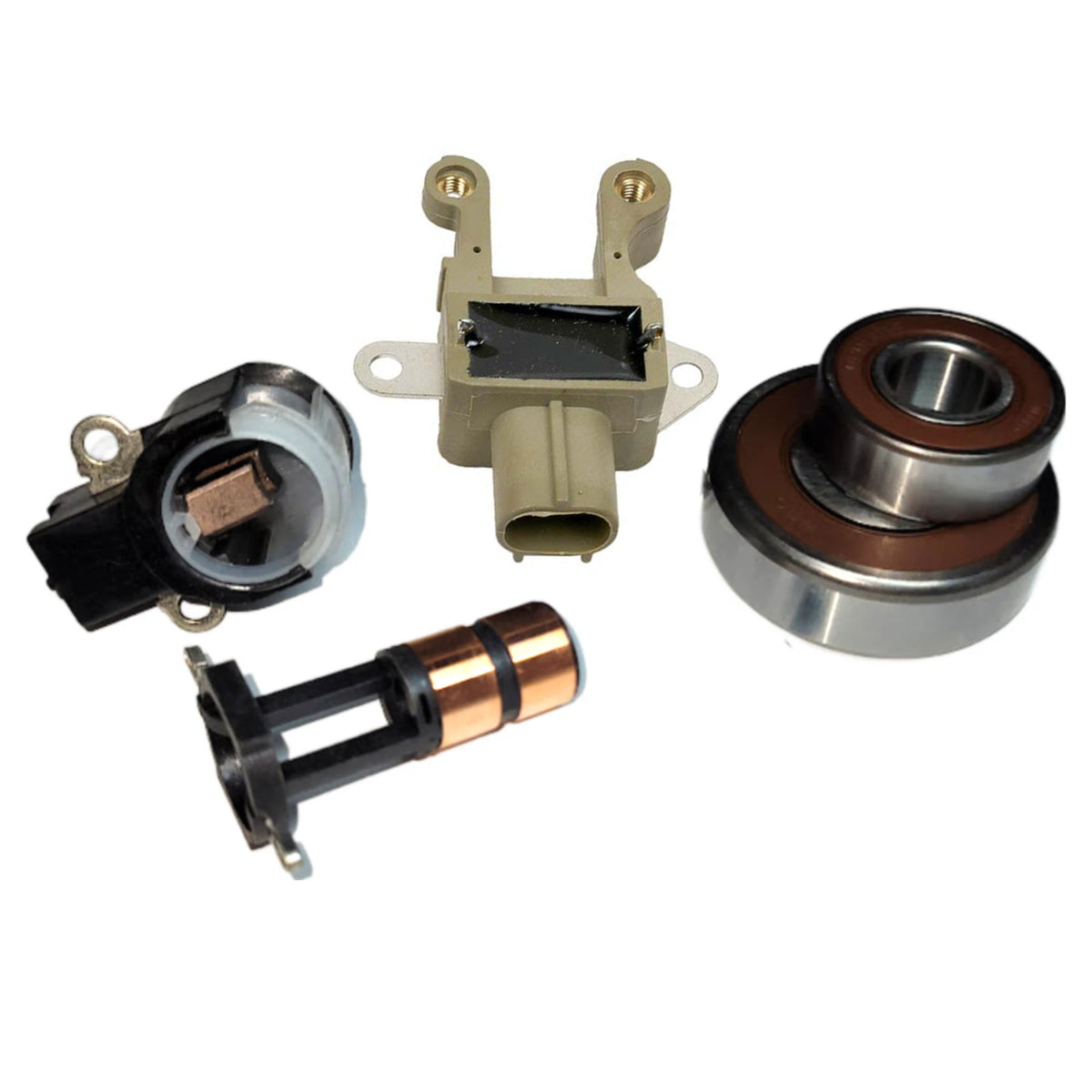

Alternator Rebuild Kit for 2003-2006 Dodge Ram 5.7L Hemi w/160A Denso Option

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

Note: Fits applications equipped with the 160 Amp Denso alternator option. Will not fit the Bosch style alternator also found on these models (see Part # 13985RK-A for the Bosch option kit).

🚘 Vehicle Application Details

• Dodge: Durango (2004-2006 V8 5.7L 160A), Ram 1500 (2003-2006 V8 5.7L 160A), Ram 2500 (2003-2006 V8 5.7L 160A), Ram 3500 (2003-2006 V8 5.7L 160A)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Chrysler OE: 56028697AA, 56028697AD, R6028697AA
• Denso OE: 210-0560, 421000-0210, 421000-0211, 421000-0212, 421000-0280, 421000-0281, 421000-0282 (160 Amp)
• Bosch Reman: AL6452X
• Lester / PIC References: Lester 13988
• Other Crossovers: Canadian Tire 0196920, DNS A13988, DRI A/S Denmark 5340541602, Excel 10817, Hollander 965B, J&N 400-52280, JANNCO 400-52526R, Remy 12563, Wilson 90-29-5571

🔧 Component-Specific Technical Data

⚡ Capacitor Terminal Interface Specs

• Design: Terminal Interface to PCM External Regulator ('F1' 'F2' Terminals)
• Replaces OEM: Denso 126220-0200
• Aftermarket Crossovers: 46-82204, 170-52007, 211-604, ND-296, AND1640, 9990-1003, TBND0099, TBND099

⚡ Brush Holder Assembly Specs (both possibilities)

• Features: Includes Brushes
• Interchange Numbers: 39-8206, 39-8207

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 1900905164 | 6-303-4

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514 / 279
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: Denso 949100-2790, 949100-3980, 949100-4440 | 10-2021-4

⚡ Slip Ring Specs

• Design: For Hairpin Denso Alternators
• Dimensions: 5.8mm ID x 14.3mm OD x 11mm L
• Interchange Numbers: 28-82854
