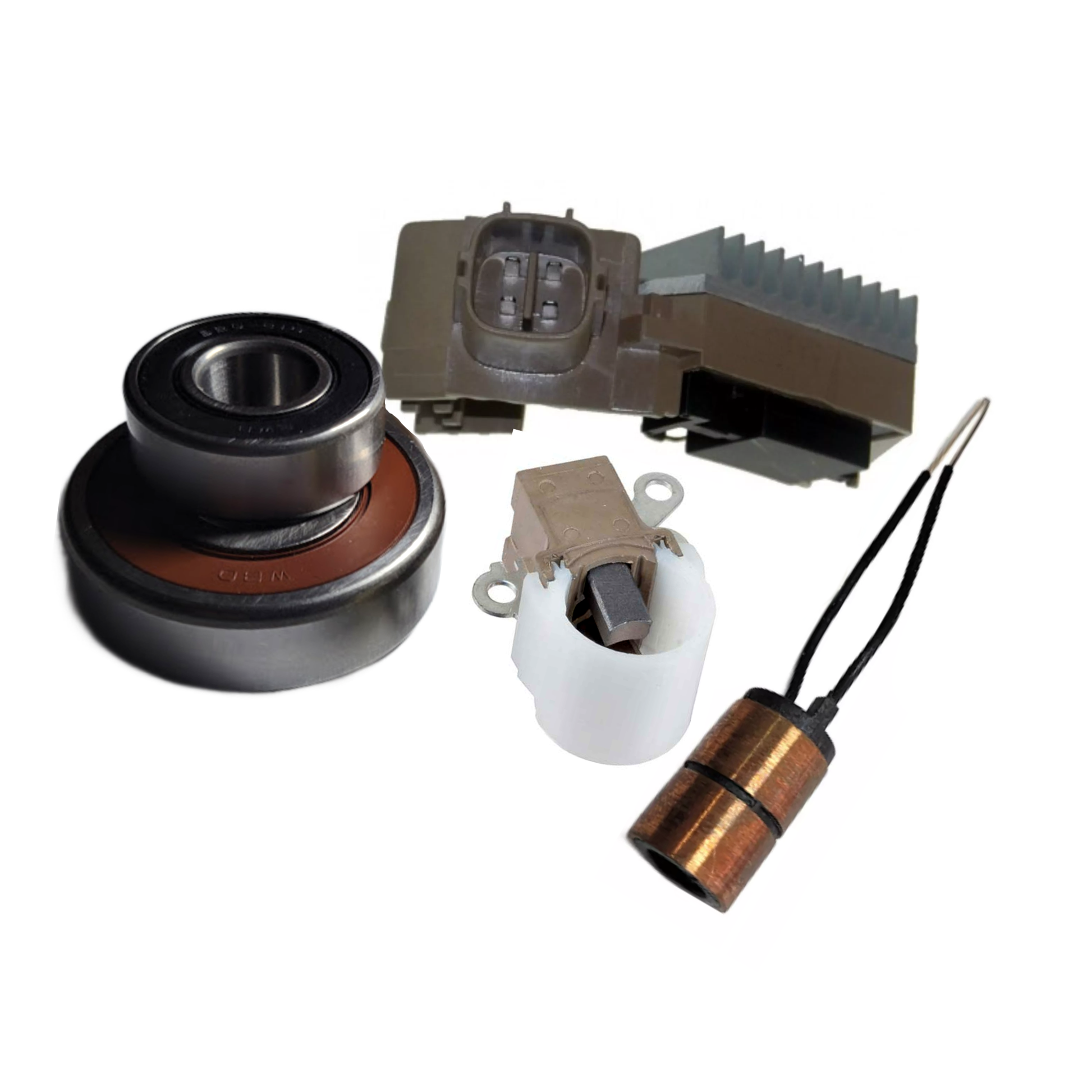

Alternator Rebuild Kit for 2006-15 Yaris, 2005-16 Tacoma 2.7L - IN3054RK-A

Alternator Manufacturer and Factory #s:
Denso 104210-8110, 104210-8180, 104210-8230, 104210-8232, 104210-840, 104210-8400, 104210-8401, 104210-8590, 104210-8591; Toyota 27060-21150, 27060-21151, 27060-75310, 27060-75310-84, 27060-75410, 27060-75411, 27060-75411-84, 27060-75412, 27060-75490 :: Other: 11194, 11203, 11354, 11505

Toyota Tacoma 2005-2016 L4 2.7L
Toyota Yaris 2006-2015 L4 1.5L

• Voltage Regulator, Replaces: Denso 126600-0520, 126600-0540, GS2M 0520, GS2M 0540, Toyota 27700-21050, 27700-75030, Other: IN3054, W085-304, T72020, 216-070, 1K-60061, ND-902, 8090-4491 :: Specifications: 12 Volt, B-Circuit, IG-S-L-FR Terminals, 14.1 voltage set point, w/ LRC, For Denso Alternators, 63.5mm Mounting Length, This regulator will work correctly in Toyota Yaris with daylight running lights., Ignition activated, Soft start, LRC, Short-circuit protection: lamp, field - IN3054

• Brush Holder Assembly with Brushes, Replacing 74909211, AND1309, 150-52007, BH-ND08, 211-327, ND-930 - 39-8213

• Rotor SRE Bearing 53514 15x35x13mm Ref#s 279, 6202D2RS, 949100-2790, 949100-3980, 949100-4440 - 10-2021-4

• Drive End DE Bearing 55222 17x52x16mm Ref#s 333 2RS, 949100-333, 949100-3330, 949100-437 - 10-3042-4

• Drive End DE Bearing 54200 15x42x13mm Ref#s 6302-2RS, 949100-0390, 949100-0400, 949100-2000, 949100-2800 - 6-302-4W

• Slip Ring 8.9 ID 14.6 OD 23.9 Length 7190904A, 313-52001, W14520-W - 28-82853
