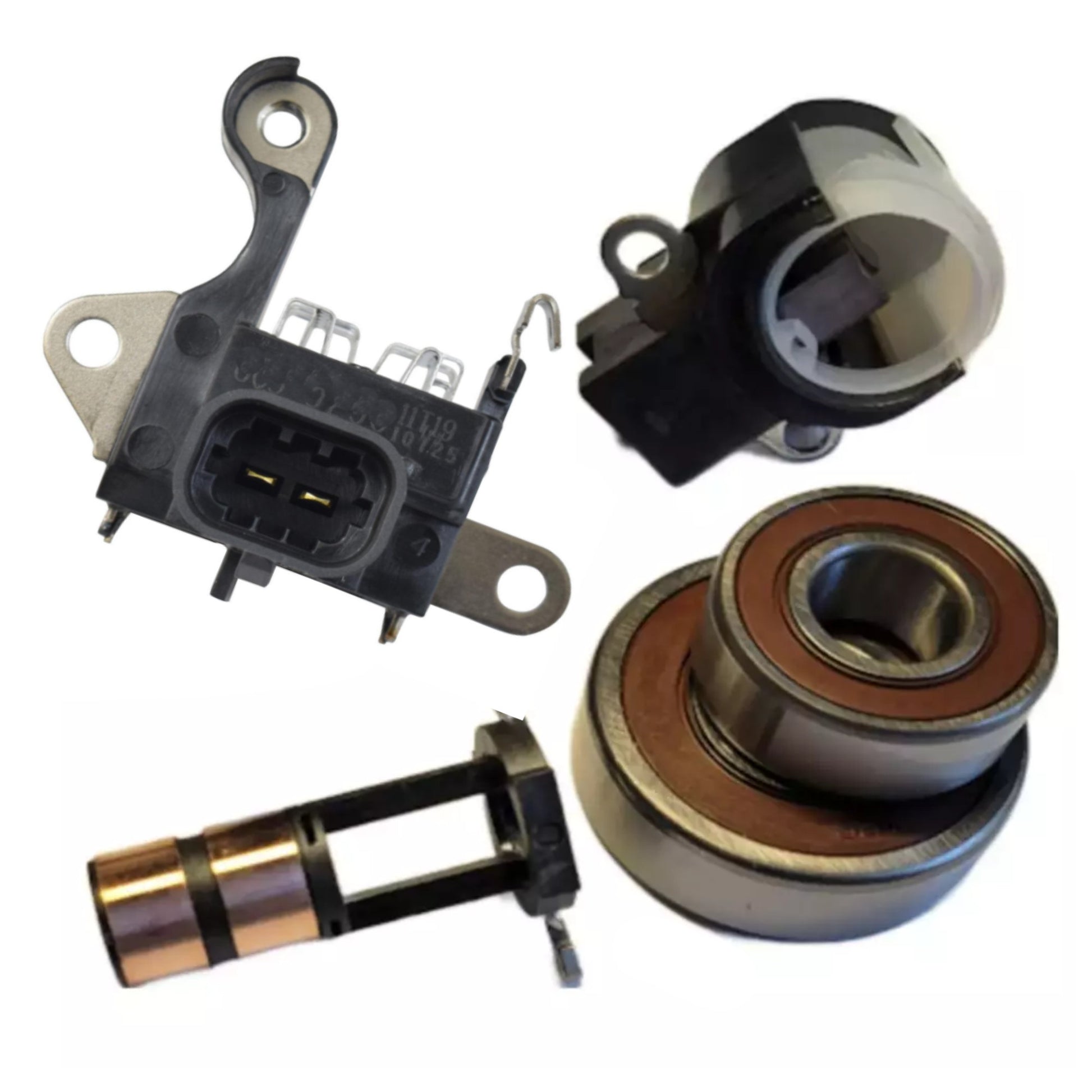

Alternator Rebuild Kit for 2007-2008 Chevy Impala 3.9 w/150A Denso 104210-5380 - 11237RK-A

**PLEASE NOTE*** This will not fit the Bosch Style or other Alternator not described here. These models have options and if your alternator is not what is described below please contact us for a link to the correct kit. Thank you!

Chevrolet Impala 3.9L 3880cc 2007-2008 150 Amp Denso

• Voltage Regulator • L is not traditional lamp terminal. • Voltage set controlled by vehicle RVC system • L(RC) terminal is computer RVC(PWM) connection, not Lamp (Regulator damage if tested as Lamp connection) Replacing Denso  126600-3290, 126600-3580, 3290, GC3 3290, GC3A 3580, Other 8008-4721, 8008-4509, GNR-N088, T7329, 216-076, 230-52143, AND6172, VRH2005-163, W085-320 - IN6329

• DE Drive End Bearing 54700 17x47x14mm 6303-2RS, Replacing 1900905164 - 6-303-4W

• SRE Rotor Bearing 53514 15x35x13mm 279, Replacing 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Brush Holder Assembly with Brushes Ref# 021620-3020, -3030, -3040 - 39-8206

• Slipring 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL // s Denso ... Other  7190-904B, 313-52004, W165-11, W16511, AND3505 - 28-82854

Alternator Manufacturer and Factory #s
Bosch Remanufacture AL8834X
Denso 104210-5380, 210-0680
Excel 10835
GM 15846253
Hollander 184
Lester 11237
J&N 400-52285
PIC Picture ID 290-5235
Remy Light Duty 12798
Youtech/PartRef 334923
Wilson 90-29-5590
