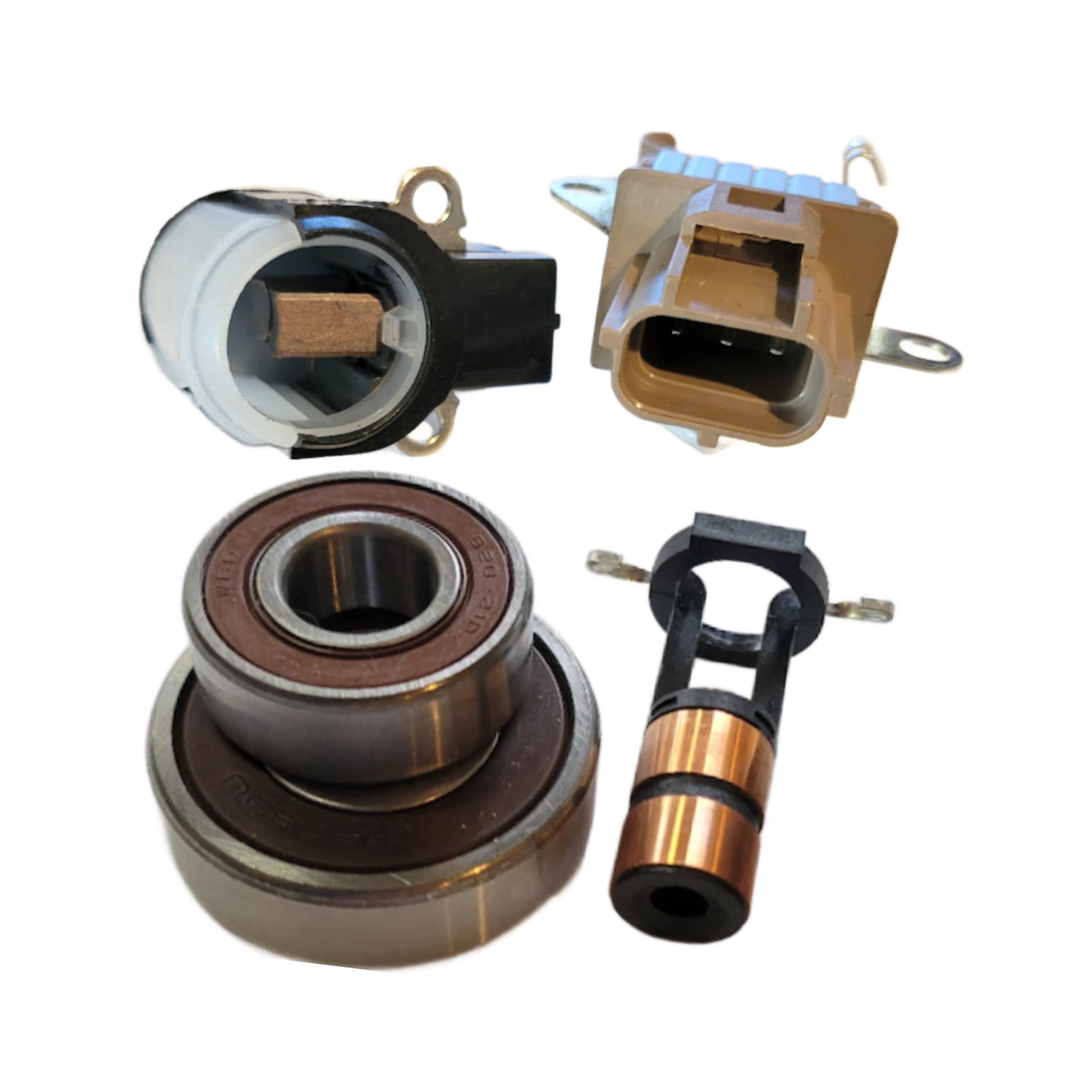

Alternator Rebuild kit for 2009-2010 Ford F150 VIN-W, 4.6 w/o Nav TN104210-5960 - 11204RK-A

Need to rebuild your vehicle's alternator? This premium rebuild kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚙 Vehicle Application Details

• Ford Truck:
  • F-150 V8 4.6L VIN W (2009-2010) *135 Amp; Except Navigation System
• ⚠️ Verification Note: Please see part number 11368RK-A if your vehicle has the 4.6L VIN 8 engine option.

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Denso: 104210-5960, TN104210-5960
• Ford OE / Motorcraft: 9L3T-10300-BB, 9L3Z-10346-B, 9L3Z10346B, GL953, GL-953
• Bosch Reman: AL7780X
• Lester / PIC References: Lester 11204 | PIC 290-5288D
• Other Crossovers: Excel 8533, Remy Light Duty 12909, J&N 400-52463

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, B-Circuit, AS-RC-LI Terminals, 13.5 Default Mode Voltage Set Point, PCM Controlled Regulation Voltage
• Replaces OEM: Denso 126600-3430, 126600-3640, 126600-4200, 4200 Other
• Aftermarket Crossovers: IN6343, W085-299, T7343, 8090-4527, 80904527, 80904477, 8090-4477, 230-52132, VRH2005-96, AND6141

⚡ Slip Ring Specs

• Design: For Hairpin Denso Alternators
• Dimensions: 5.8mm ID x 14.3mm OD x 11mm LL
• Interchange Numbers: 28-82854

⚡ Brush Holder Assembly Specs

• Design: Brush Holder Assembly with Brushes
• Replaces OEM: 021620-3030
• Interchange Numbers: 39-8206

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 949100-1010, 949100-2820, 6-303-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 279, 949100-2790, 949100-3980, 949100-4440, 53514, 10-2021-4W

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
