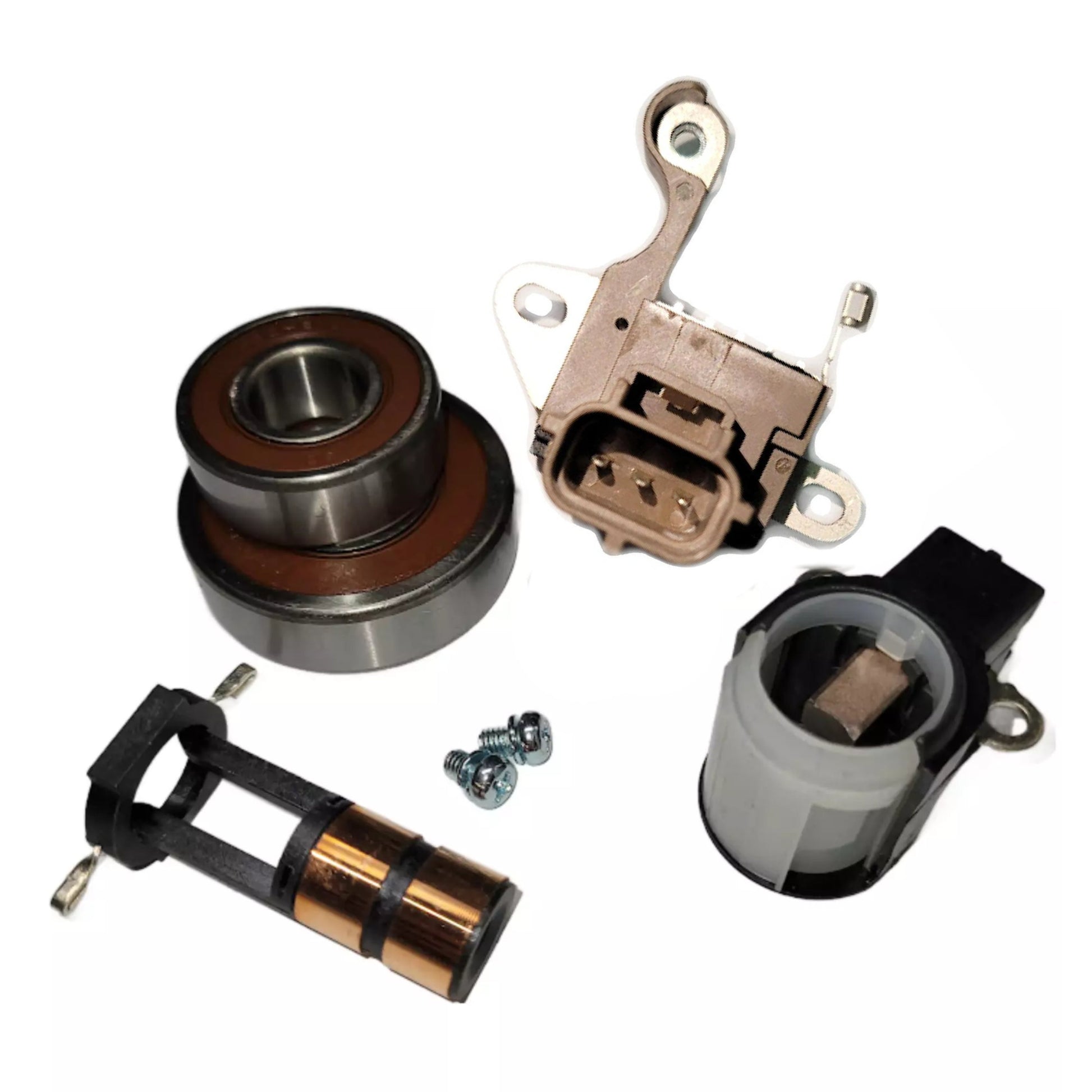

Alternator Rebuild Kit for 2009-2010 Mustang 4.6L A/T 104210-2021 - 11428RK-A

Ford Mustang V8 4.6L 281cid 2009-2010 A/T

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL7778X
Denso 104210-2021
Ford 9R3Z-10346-D, 9R3T-10300-DB
Lester 11428
JANNCO 400-52400R
Remy Light Duty 12915
Wilson 90-29-5731

• Voltage Regulator, 12 Volt, B-Circuit, High Side Drive Regulator, LI-RC-AS Terminals, 13.50 Voltage default, Denso IR/IF Alternators, RC or Stator Activated, RVC Technology Improved Stator Terminal, Regulation is controlled by vehicle PCM, Field Rating 5 Amps, With Field Short Circuit Protection // Replaces: Denso 126600-3600, 126600-3960, 126600-4210, 3600, 4210, GC5 3600, GC5B 4210 / Other: VRH2005-177, VRH2005-177M, 230-52184, 230-52158, 80904528, 80904650, 80904731, 80904617, 1K-60050, 216-105, 26535, ND-1039, T7378, W085-353, W085-353A - IN6368

• Rotor SRE Bearing 53514 15x35x13mm 279, 53514 Replacing 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Drive End Bearing 54700 17x47x14mm Ref# 6303-2RS, 949100-1010, 949100-2820 - 6-303-4W

• Brush Holder Assembly: Replacing 021620-3020, 021620-3030, 021660-0510 / 39-8206

• Attaching Bolts M4 x 0.7 x 5.7mm L - 85-1205 x2

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854
