Alternator Rebuild Kit for 2010-2013 Mazda 3 2.3L A3TJ3281 - 11439RK-A

Mazda 3 L4 2.3L 2260cc 2010-2013

Alternator Manufacturer and Factory #s
Lester 11439
Mazda L3BD-18-300, L3BD-18-300A, L3BD-18-300R0A,
Mitsubishi A003TJ3281, A3TJ3281, A003TJ3281A, A3TJ3281A
PIC# 203-5456 203-5456A

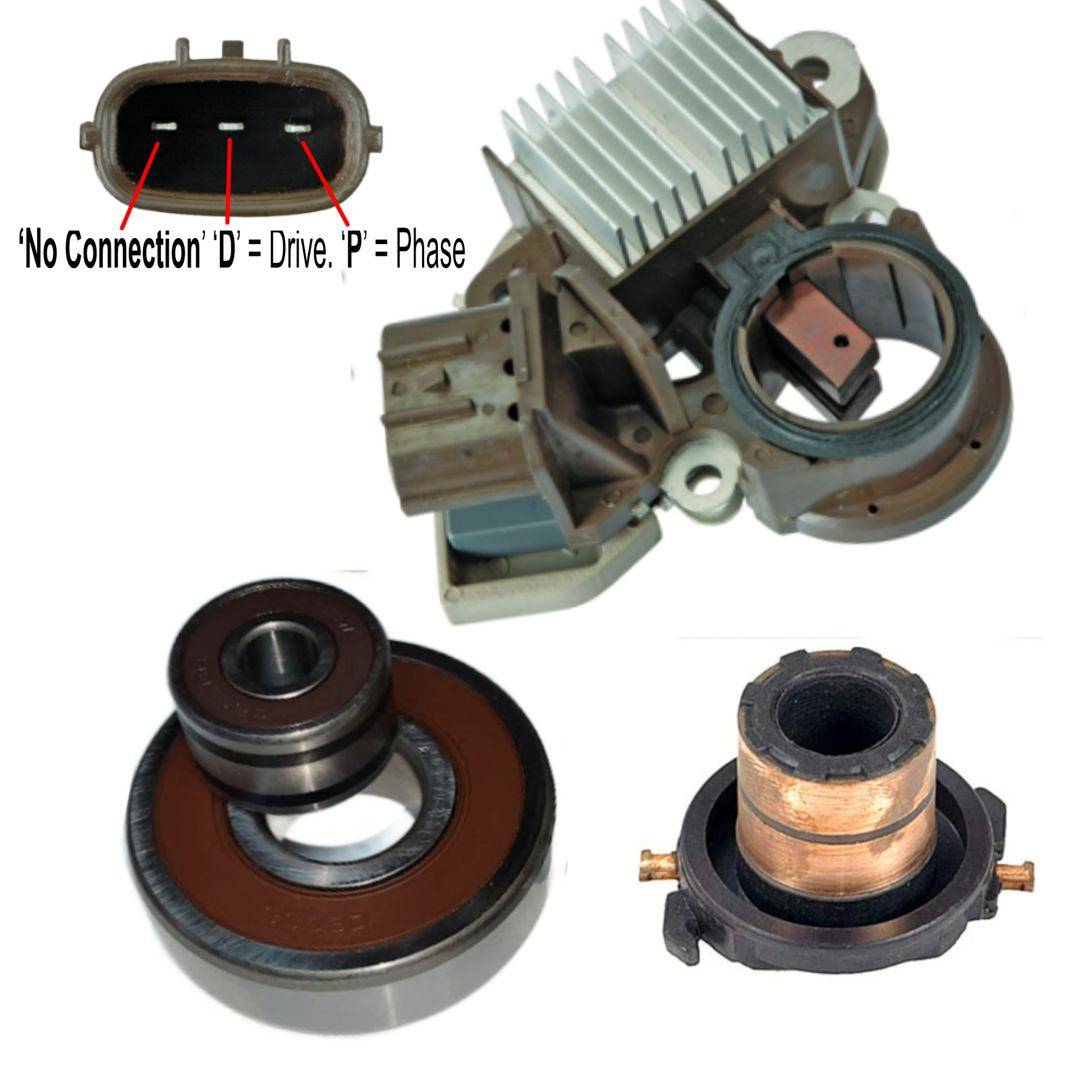

• Voltage Regulator 12 Volt, A-Circuit, (N/C)-D-P Terminals, 14.4 Voltage Set Point • 3-pin connector but only D-P are used: (N/C) = No connection. D = Drive. P = Phase • IM505 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type regulators • With capacitor plate • Stator activated - // Replaces: Mazda AJ51-18-W70, Mitsubishi A866X50572, 505, 592-8630T, Other: 230-48122, VRH2009-114, T52017, W085-270, 196-104, GNR-M063, 80033106 - IM505

• SlipRings 13.5mm ID x 22.7mm OD -W165-10, 193-501 - 28-83852

• Drive End DE Bearing 54700 17x47x14mm 6303-2RS - 6-303-4

• Rotor SRE Bearing 52312 8X23X14mm SC8A05LHI - 10-800-4
  Here for Additional Part https://diyalternator.com/collections/mitsubishi-11439
