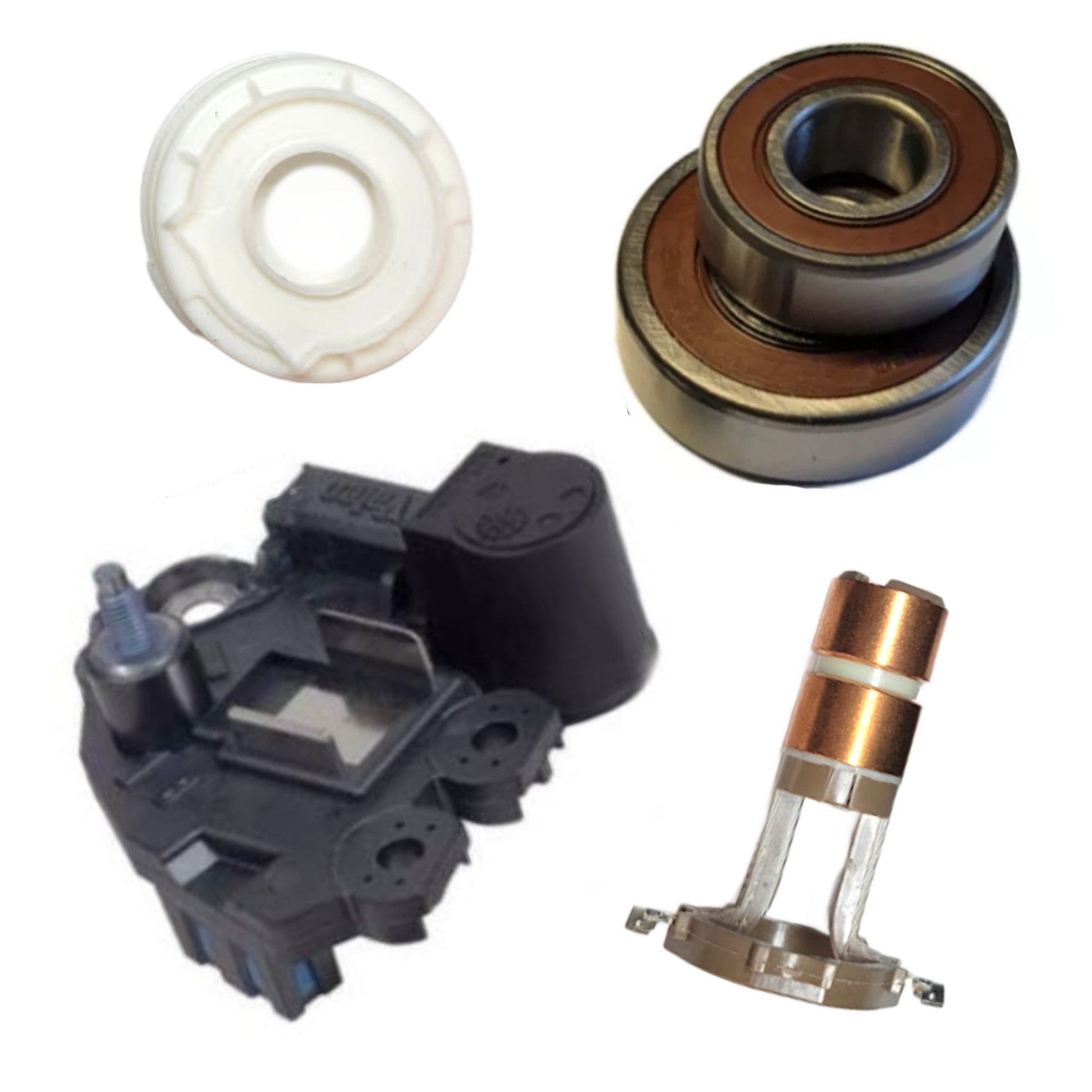

Alternator Rebuild Kit for 2011-2013 BMW X 3.0L w/ 180 Amp TG17C034, TG23C034 - 20879OERK-A

BMW X5 L6 3.0L 2993CC 2011-2013 with 180 Amp TG17C034, TG23C034 - 20879

Alternator Manufacturer and Factory #s
BMW    12-31-7-796-125, 12-31-7-801-173, 12-31-8-510-090, 21-31-7-801-173, 7796125, 7801173
Bosch Aftermarket AL9459X (Reman)
Bosch Service Europe 0-986-UR6-370
Lester 20879
Lucas (Europe)    LRA03269
Valeo 2543222, 2543222B, TG17C034, TG23C034
Valeo 439605, 2586296

• OEM Valeo Voltage Regulator with Brushes - Specifications: 12 Volt System, for Valeo on BMW, B-CIRCUIT, 14.4 voltage set point, Soft Start, BSS, LRC 2.6 SEC // Replaces M543 BMW 7547082-02, Valeo 593984 / M102 Hitachi 130637, 130644, Valeo 593877, 599102, Other 80084051, 80084051A, 80084115, 230-40135, V2604, VR-V2604, 2543204, 2543231, 593877, 593983, 593984, 595271, M102, W082-54N, 09701OE - 599102

• Drive End Bearing 54700 17x47x14mm / Ref#s 6303-2RS 17x47x14mm Ref 593563 - 6-303-4W

• SRE Rear Rotor Bearing 53500 15x35x11mm / Ref#s 6202DWS 15x35x11mm Ref 593684 - 6-202-4W

• Tolerance Ring / Bearing Cap 35mm ID x 37.3mm OD x 19.3mm OA Height Ref    2545308, 2710267, 545308, 591002 - 46-94435

• SlipRings 48.3mm L / 9mm ID / 14.9mm OD Replaces Valeo 2606286 - 28-94867
