Alternator Rebuild Kit for 2014, 2016-19 Explorer 3.5L 230A Mits A3TV0891ZC - 11916RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚙 Vehicle Application Details

• Ford:
  • Explorer V6 3.5L (2014) *230 Amp Mitsubishi Option
  • Explorer V6 3.5L (2016-2019) *230 Amp Mitsubishi Option

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Mitsubishi: A003TV0891, A003TV0891ZC, A3TV0891, A3TV0891ZC
• Ford OE / Motorcraft: GB5T-10300-AB, GB5Z-10346-A, GL-8787
• Lester / PIC References: Lester 11916 | PIC 203-5573 (Old: 250-612)
• Kit / Part #: 11916

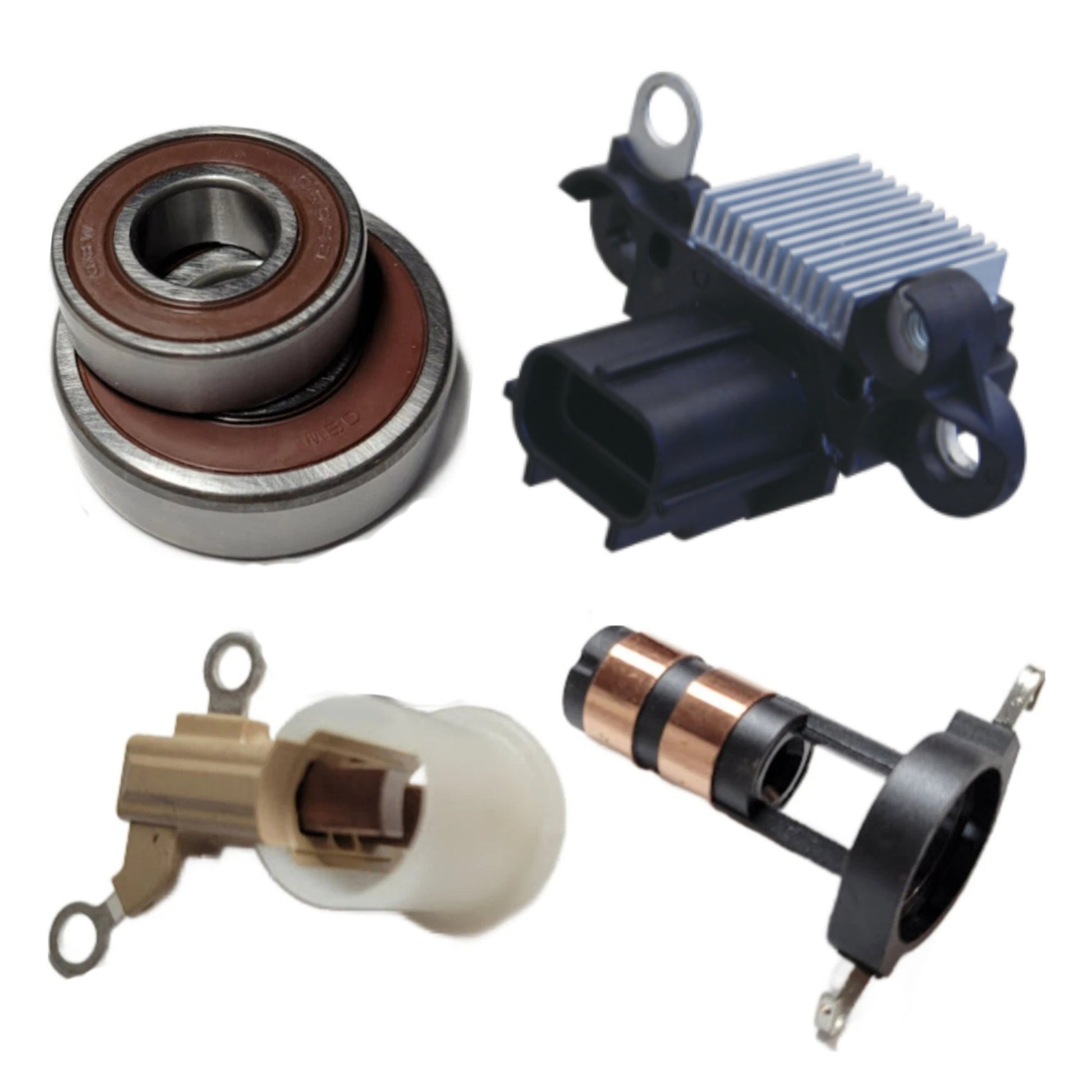

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, Mitsubishi IR/IF, AS-RC-LI Terminals, B-Circuit, Ford PWM
• Replaces OEM: Mitsubishi 730, 706
• Aftermarket Crossovers: IM730, 8003-3212, 8003-3269, 8003-3213, W085-408, 230-48176, VRH2009-218MA, 196-117, MT-1956

⚡ Brush Holder Assembly Specs

• Design: Brush Holder Brushes Assembly for Late Mitsubishi 200A+ Alternators
• Interchange Numbers: 191-306, W155-33

⚡ Slip Ring Specs

• Design: For Late Mitsubishi Alternators
• Interchange Numbers: 193-503, W165-12, MT-1954

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 6-303-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53500 / 6202-2RS
• Dimensions: 15mm ID x 35mm OD x 11mm W
• Interchange Numbers: 6-202-4W
