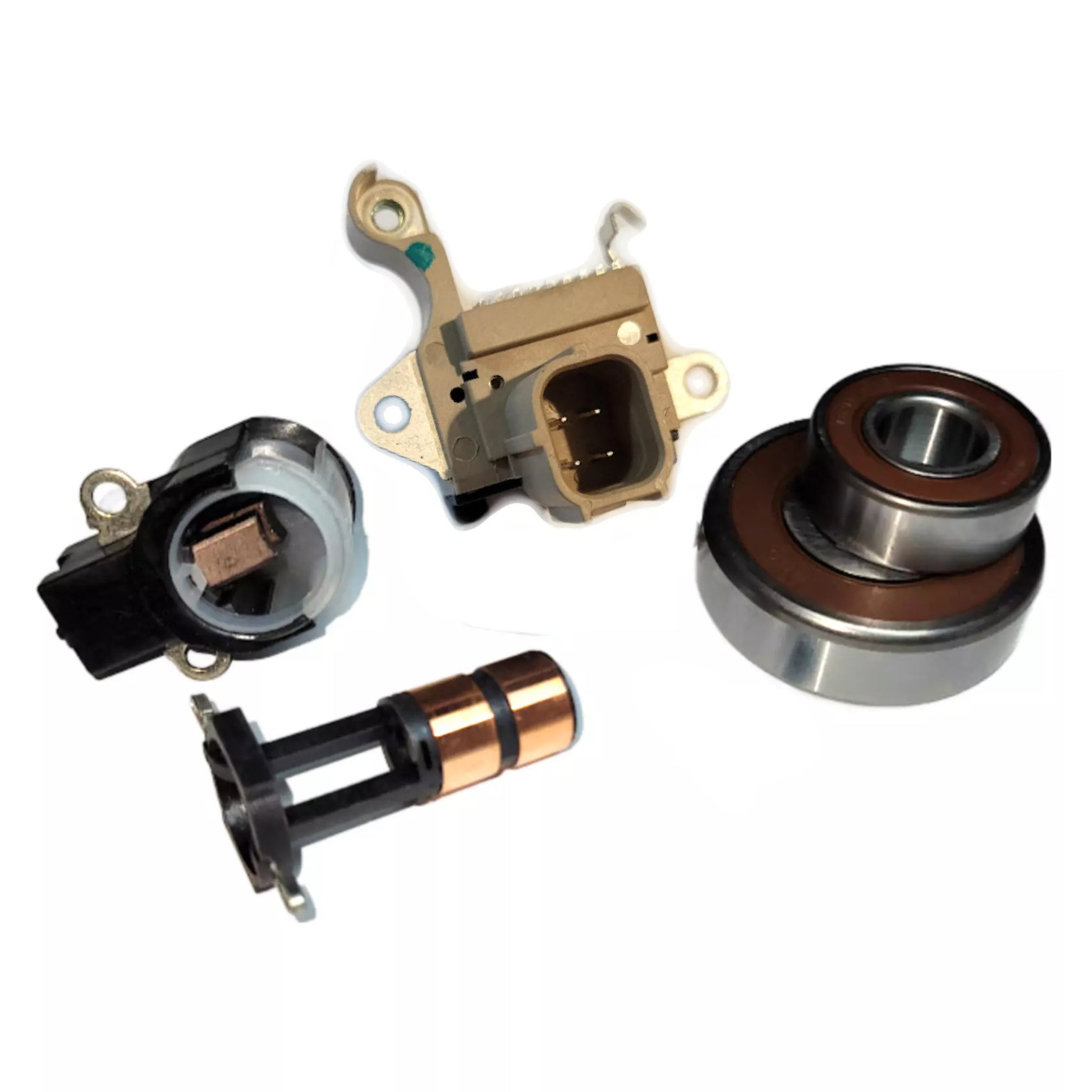

Alternator Rebuild Kit for 2014-2017 Odyssey - 11775RK-A

Need to rebuild your vehicle's alternator? This premium replacement component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Honda Van: Odyssey V6 3.5L (2014-2017)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Acura: 31100-RV0-A11, 31100-RV0-A11RM
• Bosch Remanufactured: AL1319X
• Denso: 104211-8520, TN104211-8520
• Honda: 06311-RV0-516RM, 31100-RV0-A11, 31100-RV0-A11RM, 31100-RV0-A12, 31100-RV0-A12RM, CSK52
• Lester: 11775

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, B-Circuit, IG-C-L-FR Terminals, Running Volt Set 14.35V, Ignition Activated, OE Compliant C-Function, Standard Lamp Function - Without Output, Field and Lamp short circuit protection
• Replaces OEM: Denso 126600-3650, GA1 3650, GA1 5330, IN6365
• Aftermarket Crossovers: VRH2005-149M, 8090-4501, 8090-4698, 1K-60235, T7365, W085-326, 230-52150, 216-081, 26519, ND-963

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 949100-1010, 949100-2820, 6-303-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514 / 279
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 949100-2790, 949100-3980, 949100-4440, 10-2021-4W

⚡ Brush Holder Assembly with Brushes Specs

• Interchange Numbers: 021620-3020, 021620-3030, 021660-0510, 39-8206

⚡ Slip Ring Specs

• Design: For Hairpin Denso Alternators
• Dimensions: 5.8mm ID x 14.3mm OD x 11mm LL
• Interchange Numbers: 28-82854

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
