Alternator Rebuild Kit for 2015-2024 Ford Edge 2.7L 175 Amp 11925RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Ford: Edge (2015-2024 V6 2.7L 164cid VIN P, Exc. Heated and Cooled Seats, Exc. Technology Package)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Ford OE: F2GZ-10346-B, F2GT-10300-BA
• Motorcraft: GL-8783
• Mitsubishi OE: A003TX1981, A3TX1981ZC, A3TX1981 (12 Volt, 175 Amp, SC6 Pulley)
• Bosch Reman / Service Europe: AL7814X, 0986UR6442
• Lester / PIC References: Lester 11925 | PIC 203-5575

📐 Component-Specific Technical Data

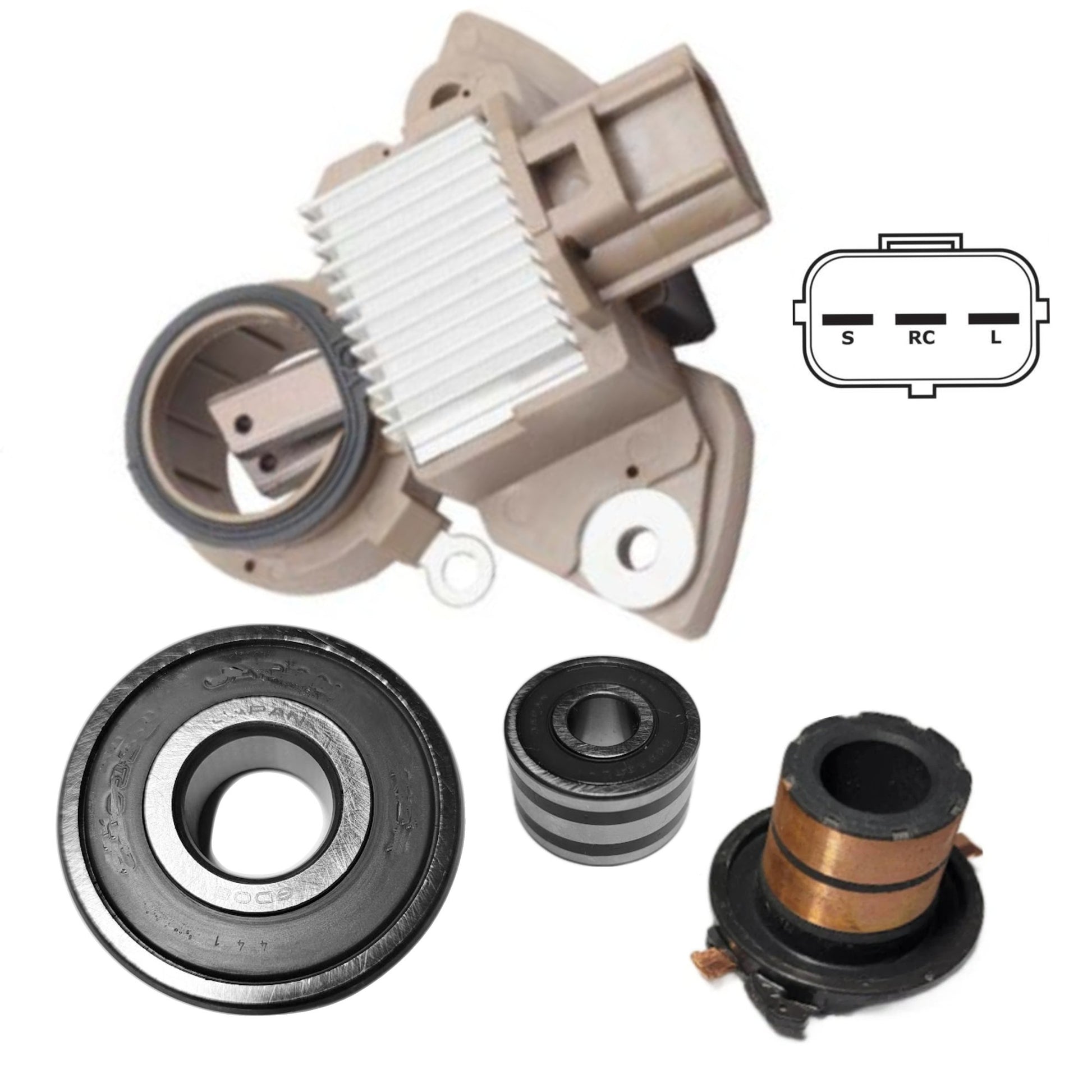

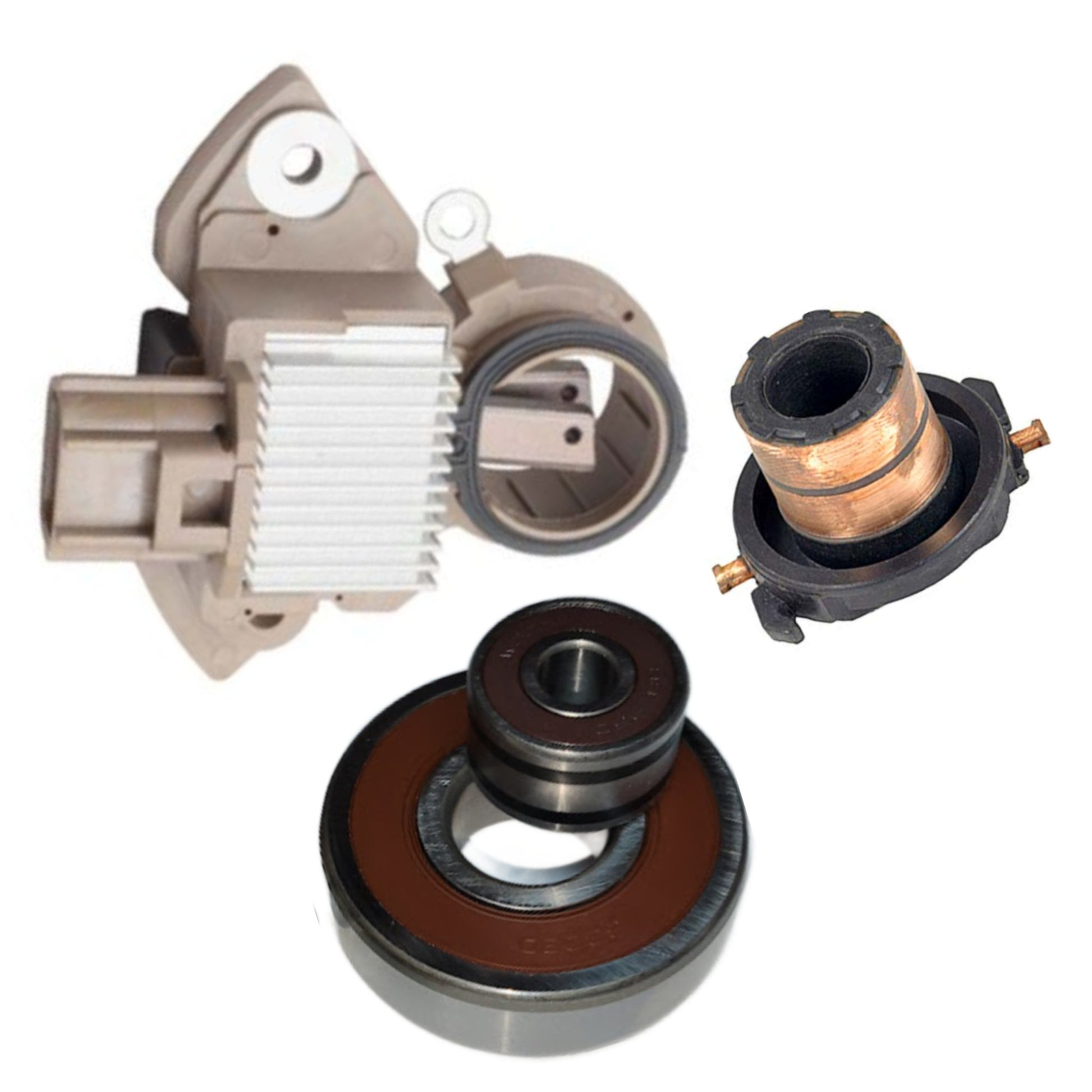

⚡ Voltage Regulator with Brushes Specs

• Technical Specifications: 12 Volt, A-Circuit, 14.0 Vset, AS-RC-LI Terminals, Field Short Circuit Protected, RC or Stator Activated, Thermal Load Protection (Regulation is controlled by vehicle PCM)
• Design: For Mitsubishi IR/IF Alternators
• Replaces OEM: Mitsubishi 622, 6224Y12N, 6224Z04A, 62259204, 6229204C
• Aftermarket Crossovers: IM622, 230-48170, 230-48137, 62259204-01432, 8003-3133, 80033133, VRH2009-140, T52013, W085-328, 196-108, 28668, GNR-M107

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 6-303-4

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 52312 / SC8A05LHI
• Dimensions: 8mm ID x 23mm OD x 14mm W
• Interchange Numbers: 10-800-4

⚡ Slip Ring Specs

• Design: For Mitsubishi Alternators
• Dimensions: 13.5mm ID x 22.7mm OD
• Interchange Numbers: W165-10, 193-501, 28-83852

💕 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
