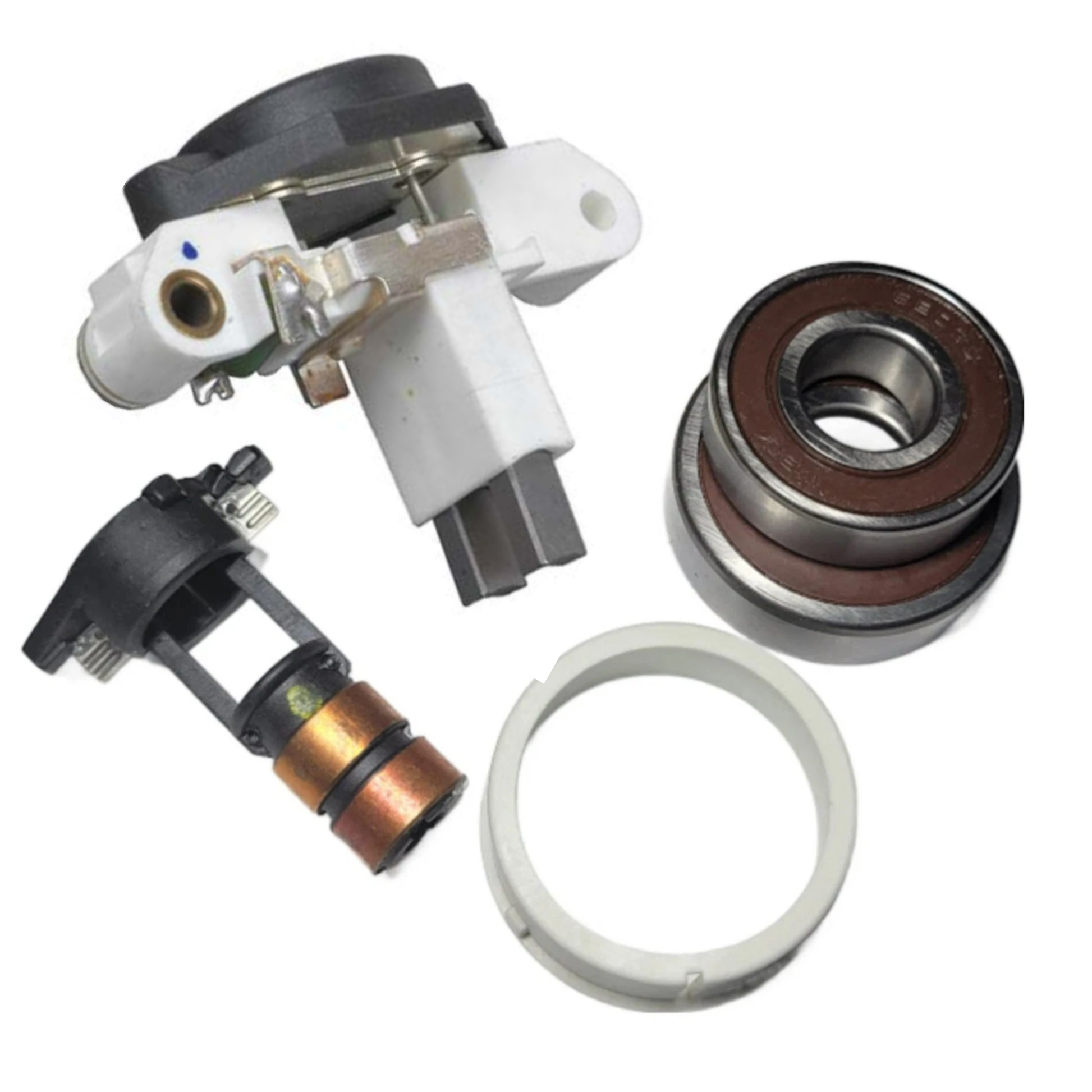

Alternator Rebuild kit for Volvo 960 S90 V90 2.9 w/Bosch 0123510017 - 13541RK-A

Volvo Car
960 L6 2.9L 2922cc 1995-1997
S90 L6 2.9L 2917cc 1997-1998
V90 L6 2.9L 2917cc 1997-1998

Alternator Manufacturer and Factory #s
Bosch 0 123 510 017, 0123510017
Bosch Remanufactured AL0752X
Bosch Remanufactured Old AL0751X
ERA 210139
Excel 10276
Hollander 58476
Lester 13541
Lester Old 13632
Volvo 5003971, 5003971-8, 6849755, 6849755-1, 8111117, 8111117-0
JN 400-24005R
Wilson 90-15-6314

• Voltage Regulator with Brushes - Specifications: 12 Volt, A-Circuit, 14.5 Voltage Set Point, 68 Ohm Resistor, for Bosch on Volvo, 14mm Diameter Slip Ring, Hermetically sealed circuit // Replaces: Bosch 1197311239 / 1197311232, 1197311234, 1197311513, 1197311514, Volvo 88925115, 9130110, 9130518, 9130518-5 Other: 80201162, 80201162, 230-24069, W080-19, W080-20, 176-013, IB389 - IB384

• Drive End Bearing 54700 17x47x14mm 6303-2RS ref# 1120905533 - 6-303-4W

• Rotor SRE Bearing 54000 17x40x12mm 6203-2RS ref# 1120905525 - 6-203-4W

• Slip Ring 52mm L, 7.1mm ID, 16.1mm OD Replacing Bosch 1124303007, F00M143019 Other 7120202, 313-24002 - 28-91852

• Bearing Tolerance Ring 40mm ID x 43mm OD x 16.5mm OAL Bosch Ref# 1120591076, 1120591103, W110-39 - 46-91552
