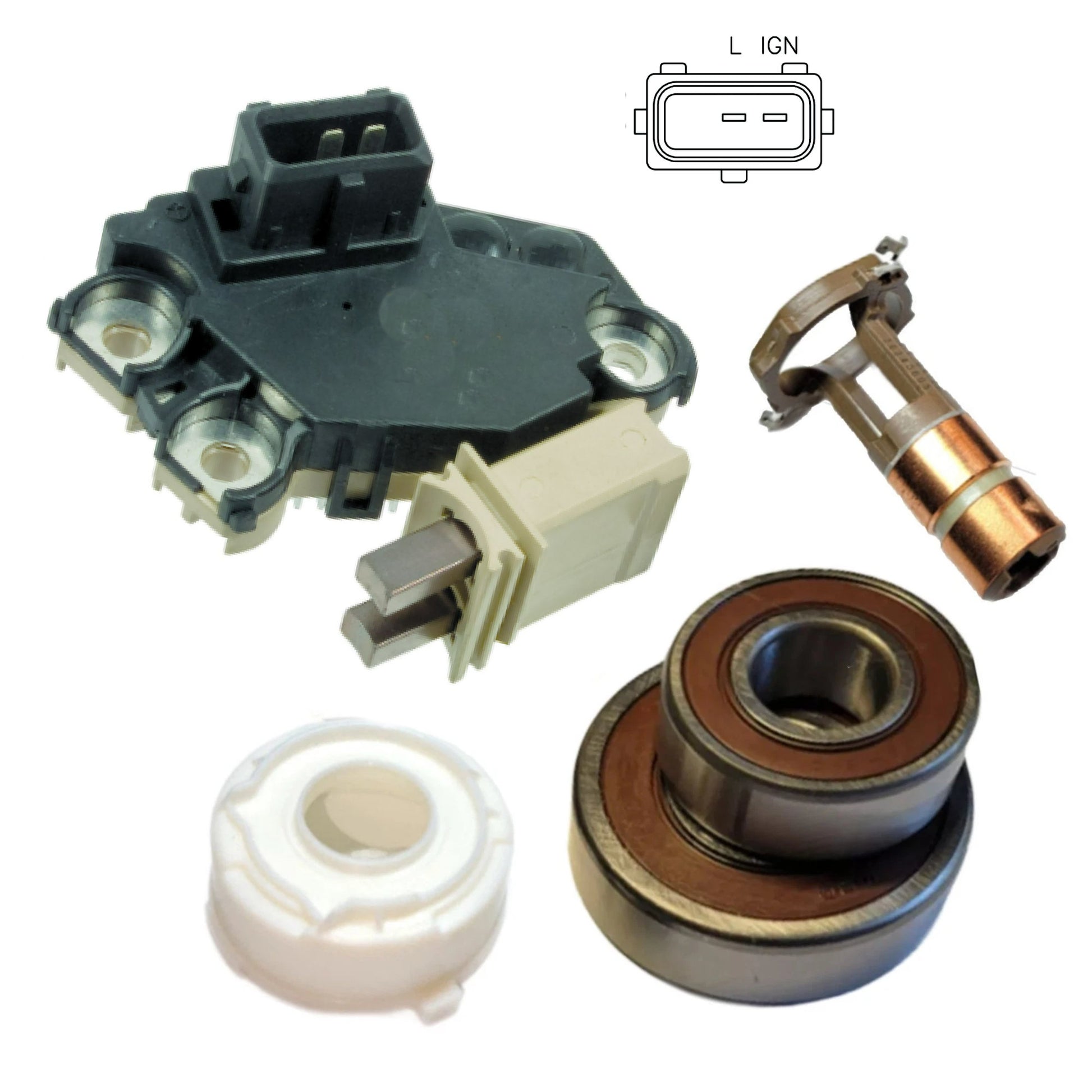

Alternator Rebuild Kit for BMW 325 330 525 530 X5 Z3 w/ 90 Amp Valeo SG9B029 - 13971RK-A

BMW Applications with 90 Amp Valeo SG9B029
325Ci L6 2.5L 2001-2006
325i L6 2.5L 2001-2005
325i L6 3.0L 2006-2006
325xi L6 2.5L 2001-2005
325xi L6 3.0L 2006-2006
330Ci L6 3.0L 2001-2006
330i L6 3.0L 2001-2005
330xi L6 3.0L 2001-2005
330xi L6 3.0L 2006-2006
525i L6 2.5L 2001-2003
530i L6 3.0L 2001-2003
X5 L6 3.0L 2001-2006
Z3 L6 2.5L 2001-2002
Z3 L6 3.0L 2001-2002

Alternator Manufacturer and Factory #s
BMW    12-31-7-501-592, 12-31-7-501-687, 12411432977, 12411740624, 12411740626,  7501592, 7501687
Bosch Remanufactured AL9405X
Bosch Service Europe 0986040390, 0986040397, 0986604039
ERA    210164
Excel 10619
Hollander 60802
IAT A439397
Lester 13971
Valeo SG9B029 439397, VA537, VA538, 437366, 2542379

• Voltage Regulator with Brushes - Specifications: 12 Volt System, B-Circuit, 61E-15 (Lamp-Ignition) Terminals, 14.3 Voltage Set Point, 5 second LRC, Valeo Alternators on BMW, Stator activated, OE compliant soft start, Shorted field, lamp choke protection // Replaces: BMW 12-31-7-501-749, 12-31-7-551-153, Valeo 2542378B, 2543325B, 2543327B, 593423, 593839, YM3699 Other: CL-173, W082-42, VRPR2206, 230-40102, 266-021, 09369, 80084010 - M523

• Drive End Bearing 54700 17x47x14mm / Ref#s 6303-2RS 17x47x14mm Ref 593563 - 6-303-4W

• SRE Rear Rotor Bearing 53500 15x35x11mm / Ref#s 6202DWS 15x35x11mm Ref 593684 - 6-202-4W

• Tolerance Ring / Bearing Cap 35mm ID x 37.3mm OD x 19.3mm OA Height Ref 46-94435

• SlipRing, 48.3mm L / 9mm ID / 14.9mm OD Replaces Valeo 2606286 - 28-94867
