Alternator Rebuild Kit for Iveco, Fiat-Heston, Lamborghini Tractor with Bosch - 12048RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Agco Allis Tractor:
  • 8610 6-366 Same Diesel (1991-1997)
  • 8630 6-366 Same Diesel (1991-1997)
• Agco White Tractor:
  • 6105 Lamb. / Same 1000.6W Diesel (1992-1997)
• Fiat-Hesston Tractor:
  • 100.90 8065 (5.4L) Diesel
  • 110.90 8065 (5.9L) Diesel
  • 115.90 8065 (5.9L) Diesel (1988-1991)
  • 130.90 8065 (5.9L) Diesel (1988-1991)
  • 140.90 8065 (5.9L) Diesel
  • 160.90 8365 (8.1L) Diesel
  • 180.90 8365 (8.1L) Diesel
  • 85.90 8045 (3.9L) Diesel
  • 90.90 8055 (5.0L) Diesel (1988-1991)
  • 95.55 8055 (5.0L) Diesel (1988-1991)
  • F100 8065 (5.9L) Diesel
  • F110 8065 (5.9L) Diesel (1990-1993)
  • F120 8065 (5.9L) Diesel
  • F130 8065 (5.9L) Diesel
  • F140 8065 (5.9L) Diesel
• Hesston Tractor:
  • 100-90 / 100-90DT 8065 Fiat Diesel (1985-1991)
  • 130-90 / 130-90DT 8065 Fiat Diesel (1985-1991)
  • 140-90 / 140-90DT 8065 Fiat Diesel (1985-1991)
  • 1580 / 1580DT 8365 Fiat Diesel (1981-1984)
  • 160-90 / 160-90DT 8365 Fiat Diesel (1985-1991)
  • 180-90 / 180-90DT 8365 Fiat Diesel (1985-1987)
  • 1880 / 1880DT 8365 Fiat Diesel (1981-1984)
  • 60-90 / 60-90DT 8035 Fiat Diesel (1985-1991)
  • 880-5 / 880-5DT 8055 Fiat Diesel (1981-1984)
  • 90-90 / 90-90DT 8055 Fiat Diesel (1985-1991)
  • 980 / 980DT 8065 Fiat Diesel (1981-1984)
• Iveco Medium/Heavy Truck:
  • Euro 110 / 220 L6 5.2L 5183cc 316cid Iveco 8060.05 (1987-1988)
  • EuroTurbo 120TA / 220T L6 5.9L 5868cc 358cid Iveco 8060.25 (1987-1988)
  • EuroTurbo 335T / 340T / 435T / 450T L6 5.9L 5868cc 358cid Iveco 8060.25 (1987-1990)
  • Z340T L6 5.5L 5499cc 335cid Iveco 8060.24 (1980-1986)
  • Z450T L6 5.9L 5868cc 358cid Iveco 8060.25 (1980-1987)
• Lamborghini-Agricultural Agricultural Tractor:
  • 1000.3W Diesel (Same) (1987-1999)
  • 1004.4W / 1004.4WT Diesel (Same) (1987-1999)
  • 1006.6W / 1006.6WT / 1006.6WTI / 1006.6WTIR Diesel (Same)
  • 115 Formula 1000.6W Same Diesel (1989-1999)
  • 135 Formula 1000.6WT Same Diesel (1989-1999)
  • 165 Racing 1000.6WTI Same Diesel (1991-1999)
  • 190 Racing 1000.6WTIR Same Diesel (1992-1999)
  • 660 F Plus 1000.3A Same Diesel (1991-1999)
  • 775 F Plus 1000.3WT Same Diesel (1991-1999)
  • 916/3W Diesel (Same) (1984-1987)
  • 916/6W / 916/6WT Diesel (Same) (1987-1988)
  • 950 DT Premium (1997-2002)
• Same Tractor / Engine Applications:
  • Frutteto II 75 / 85 Same 4-244 Diesel (1991-1997)
  • Frutteto II 60 Same 3-183 Diesel (1991-1997)
  • Antares 110 (1000-6A Engine) / Antares 130 (1000-6AT Engine)
  • Titan 160 / Titan 190 (1000-6ATI Engine)
  • Same Medium Duty & Industrial Engines (1000-3A/AT, 1000-4A/AT/ATI, 1000-6A/AT/ATI, 105-3P, 105-4P, 1054PT, 1055P, 105-2LP)
• VM (Stabilimenti Meccanici) Industrial Engines:
  • HR 392 SHTR 1.8L Diesel

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Bosch OE & Reman: 0120488225, 0120488251, 0120489152, 0120489153, 0120489212, 0120489219, 0120489338, AL925X, 0 986 035 630
• ERA OE: 210248
• Fiat OE: 4772668
• IAT OE: A12048
• Iveco OE: 4798447
• Lester / Other References: 12048, PIC 220-202

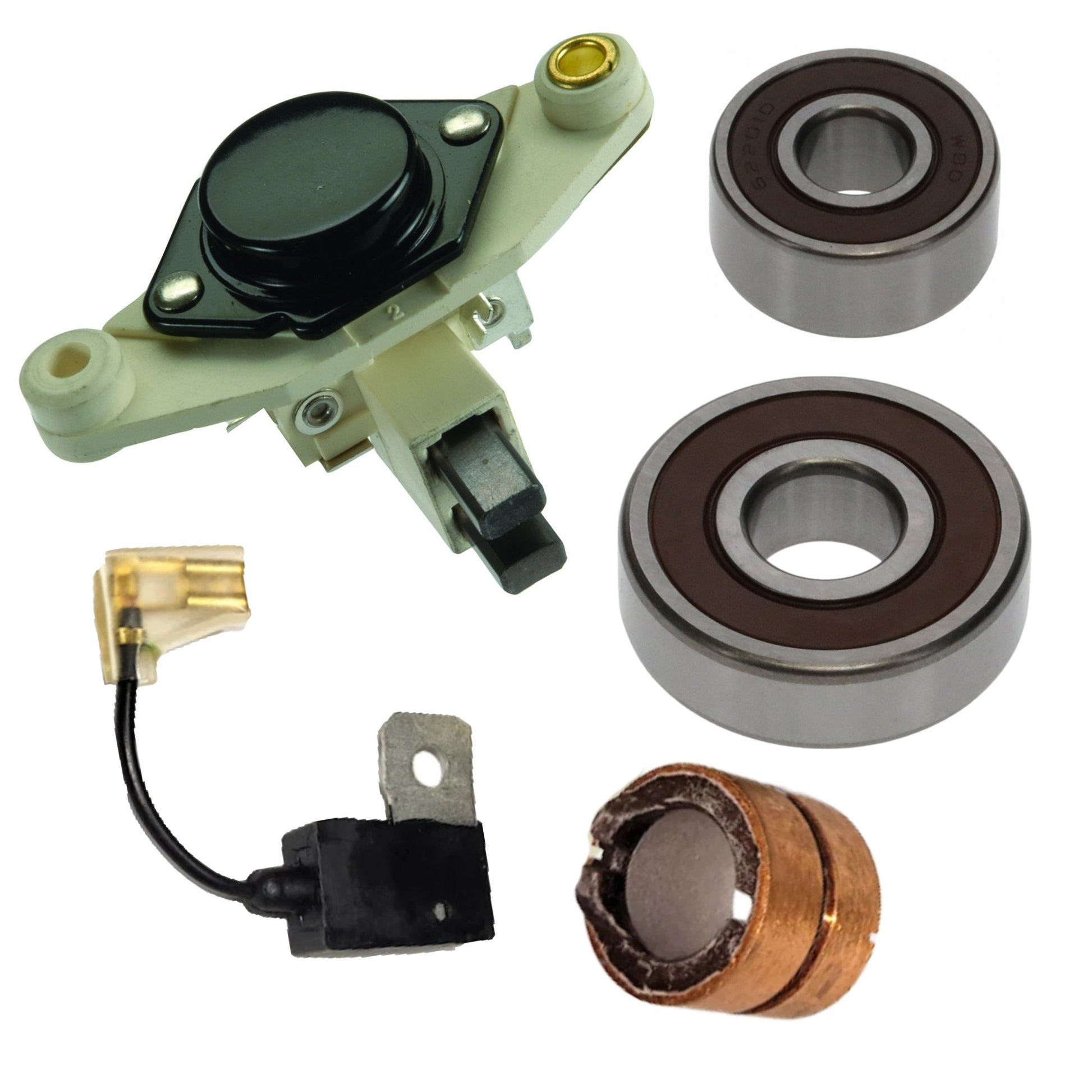

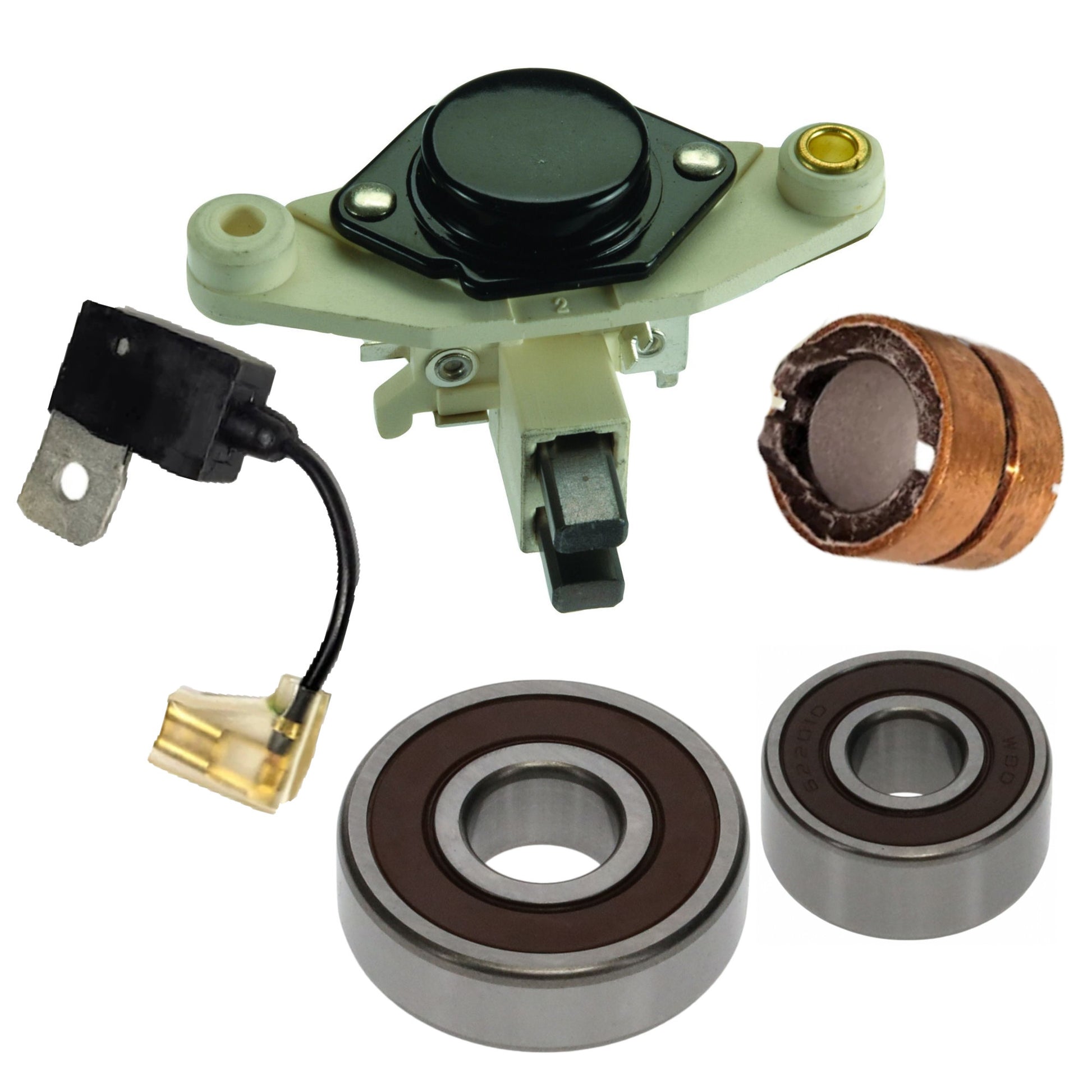

📐 Component-Specific Technical Data

⚡ Voltage Regulator with Brushes Specs

• Technical Specifications: A-Circuit, 14.5 Voltage Set Point
• Replaces OEM: BMW 12-31-1-726-022, 1726022; Bosch 1197311026, 1197311027, 1197311028, 1197311035, 1197311038, 1197311040, 1197311041, 2197311005, 2197311021, 2197311027, 9191337303
• Aftermarket Crossovers: IB353

⚡ Drive End Bearing (Front) Specs

• Industry Number: 6303-2RS / 54700
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Replaces OEM: Bosch 1120905533, 1120905001, 1120905004, 1120905021, 1120905037, 1120905039, 1120905074, 1900905304, 1900905326, 1900905331, 1900905376, 1900905378, 1900905379
• Interchange Numbers: 6-303-4N

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 62201-2RS / 53208
• Dimensions: 12mm ID x 32mm OD x 14mm W
• Replaces OEM: Bosch 1120905024, 1120905031, 1120905105, 1120905107, 1120905108, 1900905274, 1900905282; Fiat 24941650, 9935795, 9960113, 9986035
• Interchange Numbers: 62201, 6-2201-4W

⚡ Slip Ring Specs

• Dimensions: 17mm ID x 28.1mm OD (Compatible with OEM Shafts only)
• Replaces OEM: BMW 12-31-1-276-217; Bosch 1124303001, 1124303003, 1124303005, 1124303015, 9124303001
• Interchange Numbers: 28-91850-1

⚡ Capacitor Specs

• Capacitance & Terminal: 2.2 µF (2.2MF), Blade Terminal End
• Replaces OEM / References: BMW 12-31-1-353-829; Bosch 0290800036, 029085
• Interchange Numbers: 170-24000, 46-91100

💖 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
