Alternator Rebuild Kit for Kubota Tractors & Excavators, Toro, Case | 100211-1670 16241-64010 - 12179RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Ausa Dumper/Tender:
  • D150AHG L3 1.1L (Kubota D1105) (2006-2022)
• Ausa Telescopic Boom Forklift:
  • T133H / T133H-x4 L3 1.1L (Kubota D1105) (2010-2019)
• Bomag Roller:
  • BW100 AC-4 / AC-4 BW / AC-5 L3 1.6L (Kubota D1703-M) (2008-2020)
  • BW100 AD-4 / AD-4 BW / AD-5 L3 1.6L (Kubota D1703-M) (2004-2021)
  • BW120 AC-4 / AC-4 BW / AC-5 L3 1.6L (Kubota D1703-M) (2004-2024)
  • BW120 AD-4 L3 1.6L (Kubota D1703-M) (2004-2018)
  • BW125 AC-4 BW / AD-4 / AD-5 L3 1.6L (Kubota D1703-M) (2006-2012)
  • BW135AD-5 L4 2.2L (Kubota V2203-M) (2012-2016)
  • BW138AC-5 L4 2.2L (Kubota V2203-M) (2012-2020)
• Boss Light Tower:
  • BGP64MH / BTK64MH L3 0.9L (Kubota D905 / D905-E) (1992-2007)
• Case Mini Excavator:
  • CX17C / CX19C L3 0.9L (Kubota D902) (2017-2024)
  • CX26C / CX30C L4 1.3L (Kubota D1305) (2017-2024)
• Case Skid Steer Loader & Trencher:
  • 1838 Skid Steer L4 2.2L (Kubota V2203) (1995-2005)
  • 6010 Trencher L4 2.2L (Kubota V2203) (1997-2007)
• Compac Equipment Mfg. / Corniver:
  • Compac TA48 Compactor & Roller L3 1.6L (Kubota D1703) (1997-2007)
  • Corniver CT48S Roller
• Dynapac Roller:
  • CC1100 / CC1100C / CC1200 / CC1200C / CC1250 L3 1.6L (Kubota D1703-M) (2008-2015)
  • CC1300 / CC1300C L4 2.2L (Kubota V2203-M) (2008-2015)
• Hitachi Mini Excavator & Roller:
  • EX40UR-3 Mini Excavator L4 1.5L (Kubota V1505) (1993-1994)
  • ZC35C / ZC35C-5 / ZC35T / ZC35T-5 Roller L3 1.6L (Kubota D1703-M) (2006-2012)
  • ZC50C / ZC50C-5 / ZC50T / ZC50T-5 Roller L3 1.6L (Kubota D1703-M) (2006-2012)
• Hyundai Mini Excavator & Skid Steer:
  • R17Z-9A Mini Excavator L3 0.9L (Kubota D902) (2010-2018)
  • HSL650-7 Skid Steer Loader L4 2.2L (Kubota V2203-M) (2010-2016)
• Ingersoll Rand Soil Compactor:
  • TC-13 L3 0.7L (Kubota D722) (2001-2006)
• Kubota Tractors & Mowers:
  • 2WD Tractors: B1550E, B2400HSE, F2560-R, L2850F (1985-2007)
  • 4WD Tractors: B7500HSD, F2260-R, L2650DT, L2850DT, L2850GST, L2950DT (1985-2005)
  • Compact Utility Tractors: B1550 Series, B1750 Series, B2150 Series, B21TL/TLB, B2400 Series, B26, B7510 Series, B7610 Series, L3450DT/DTW, L35, L48, M4700 Series, M5400 (1988-2009)
  • Mini Excavators: KX41, KX41-2, KX41-2S, KX41-2SV, KX41-3, KX61-2, KX61-2S, KX71H, KX91-2, KX91-2S (1988-2010)
  • Turf/Zero-Turn Mowers: F2400, F2400B, F2560, F2560-E, F2880, F2880-E, F3060, F3060-E, F3060-R, F3680, FZ2100, FZ2400 (1989-2013)
  • Wheel Loaders: R310, R310B (1985-1999)
• Thomas Skid Steer Loader:
  • Protough 1700 / T173HL S / T175 / T185 / T205 L4 2.0L (Kubota V2003/V2003T/V2003E) (2001-2011)
  • T83 / T83S / T85 L3 (Kubota D722 / D850) (1987-2011)
  • T95 / T95S L4 1.3L (Kubota V1305) (1987-2003)
• Toro Reel & Turf Mowers:
  • Reelmaster 3100D, 3500D, 5200D, 5400D, 5500D L3 1.1L (Kubota D1105) (1997-2010)
  • Grounds Pro 3100 / Groundsmaster 228D, 328D, 3500-D L3 1.1L (Kubota D1105) (1995-2010)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Denso OE: 100211-167, 100211-1670, 100211-1671, 100211-1672, 100211-1673
• Kubota OE: 16231-24011, 16241-64010, 16241-64011, 16241-64012, 16241-64013, 16241-64014, 16241-64015, 16427-64010
• Case / New Holland OE: 133745A1
• Toro OE: 98-9474
• Lester References: Lester 12179
• Other Crossovers: Excel 8324, IAT 210-003, J&N 400-52014

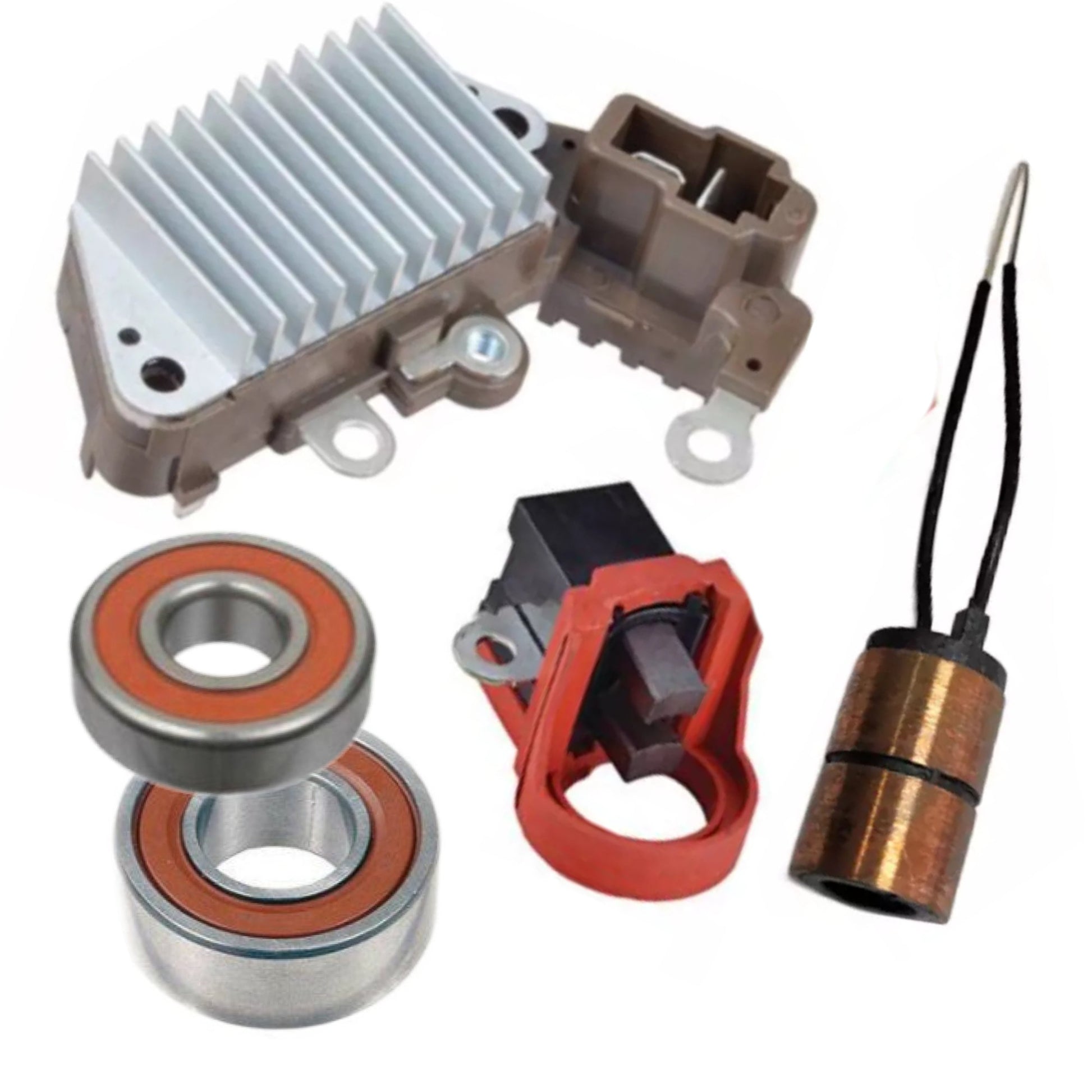

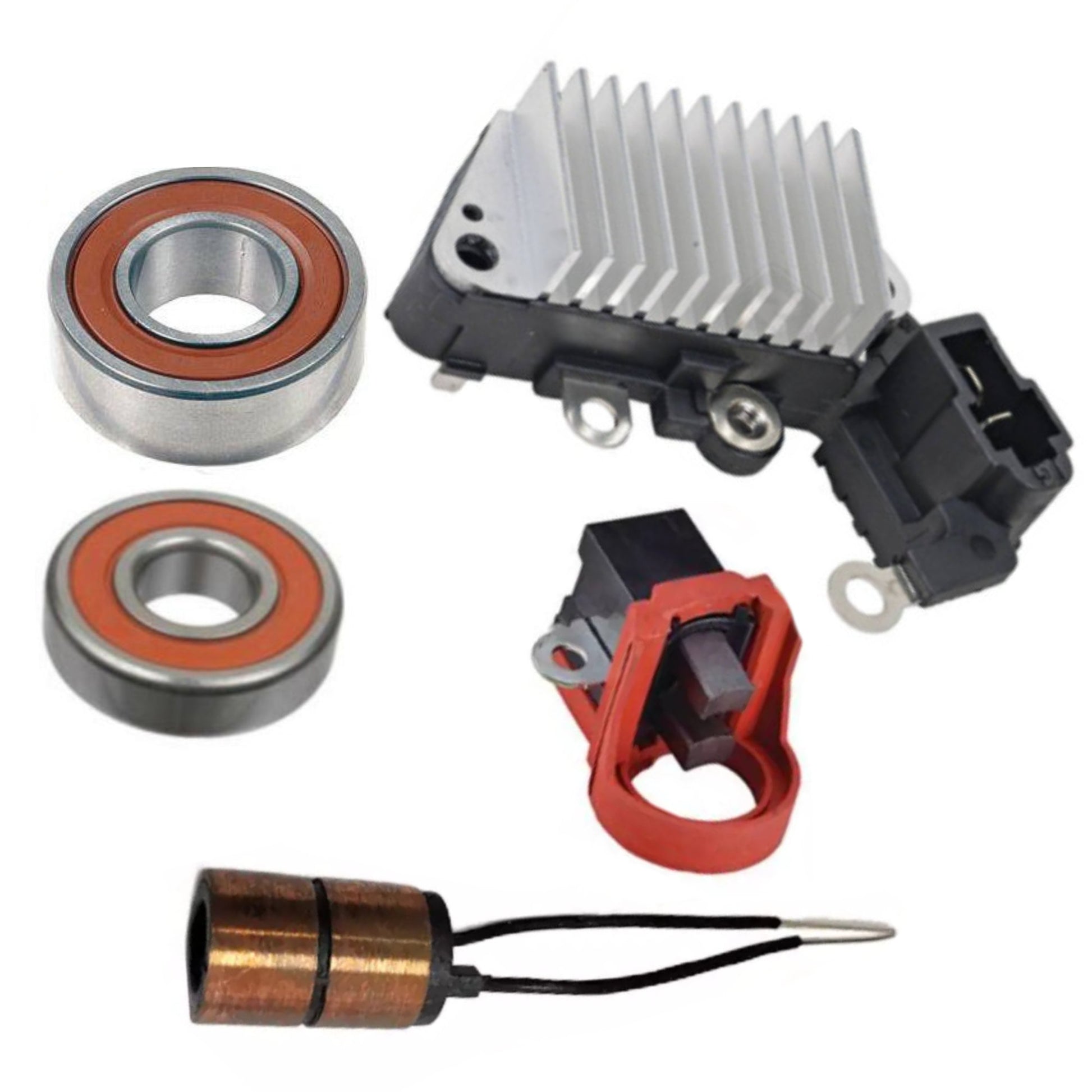

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, A-Circuit, Low Side Drive Regulator, IG-L Terminals, 14.5 Voltage Set Point
• Replaces OEM: Denso 126000-0600, 126000-0760, 126000-1160
• Aftermarket Crossovers: 216-010, KO-162, 230-52027, VRH2005-39, AND6034, IN254

⚡ Brush Holder Assembly with Brushes Specs

• Replaces OEM: Denso 021620-2010, 021620-2180, 021620-2200, 021620-2201, 021620-2630, 021620-2750
• Interchange Numbers: 39-8200

⚡ Drive End Bearing (Front) Specs

• Industry Number: 6202-2RS
• Dimensions: 15mm ID x 35mm OD x 11mm W
• Replaces OEM: Denso 949100-0070, 949100-0160, 949100-0330, 949100-0340, 949100-2951, 949100-3161, 949100-3731
• Interchange Numbers: 207-004, 6-202-4N

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53207
• Dimensions: 15mm ID x 32mm OD x 11mm W
• Replaces OEM: Denso 949100-3170, 949100-3230, 949100-3650, 949100-3660, 949100-3670
• Interchange Numbers: 217-020, 6-3102-4W

⚡ Slip Ring Specs

• Dimensions: 8.9mm ID x 14.6mm OD x 23.9mm Length
• Interchange Numbers: 7190904A, 313-52001, 14520W, 213-500, ND-492, 28-82853

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
