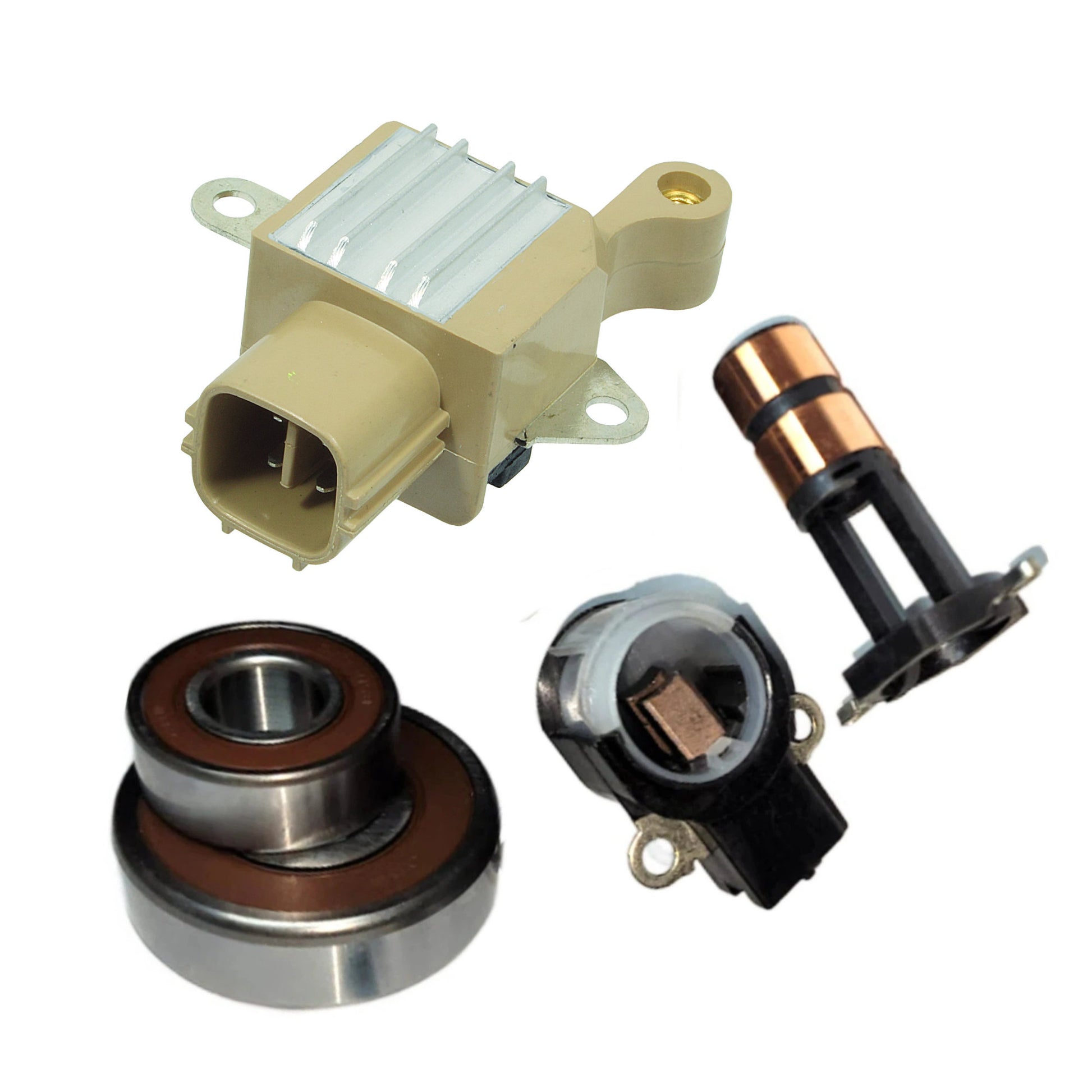

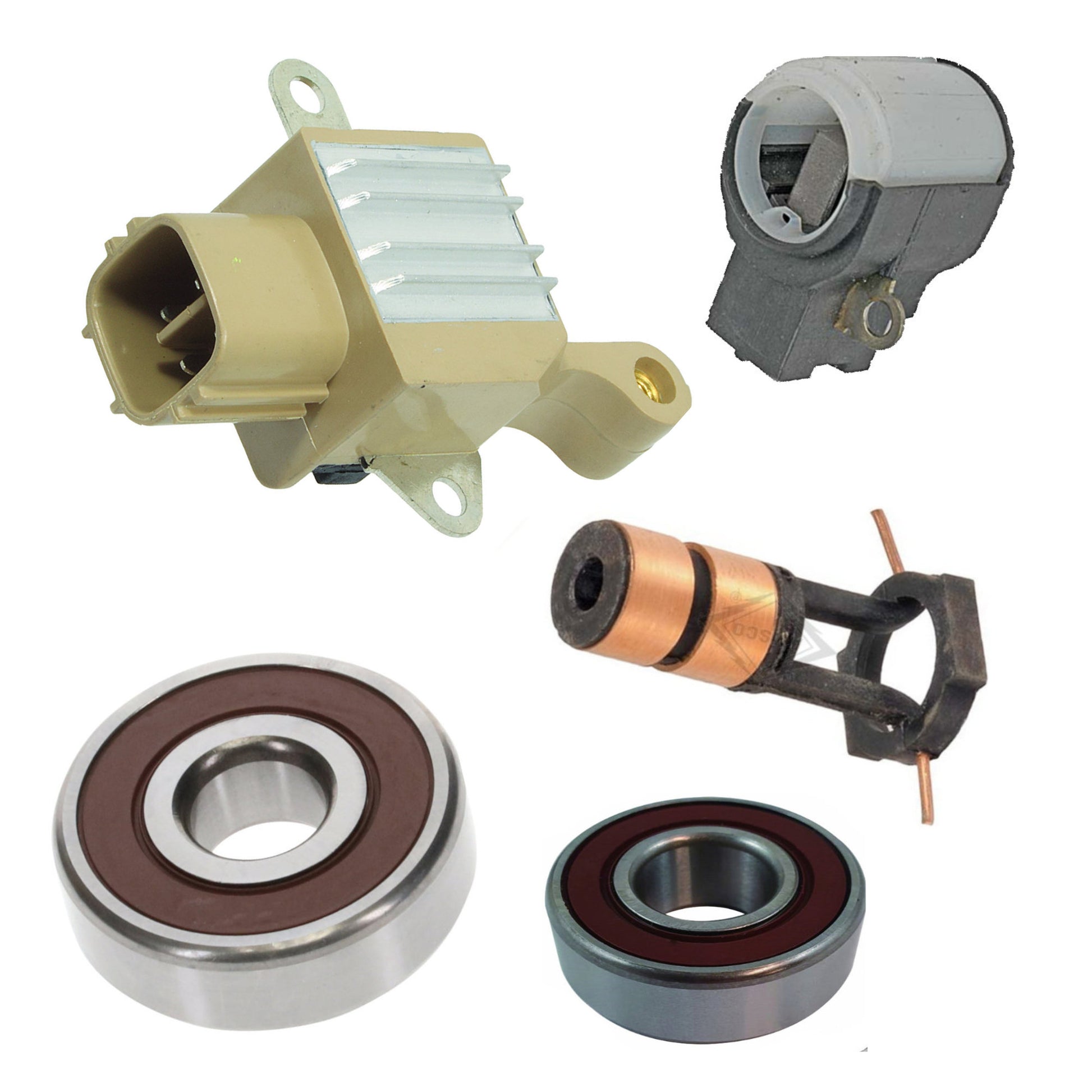

Alternator Rebuild Kit for Lexus ES350, RX350 & Toyota Avalon, Highlander, Venza 3.5L V6 w/130A - 11137RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Lexus: ES350 (2007-2018 V6 3.5L), RX350 (2007-2009 V6 3.5L)
• Toyota: Avalon (2005-2018 V6 3.5L), Highlander (2008-2013 V6 3.5L), Venza (2009-2016 V6 3.5L)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Lexus / Toyota OE: 27060-31110, 27060-31111, 27060-31111-84, 27060-3111184, 27060-31112, 27060-0P150, 27060-0P151, 27060-0P151-84
• Denso OE: 104210-4890, 104210-2100, 104210-2101, 104210-2104, 104210-2850, 104210-4570, 104210-4571, 104210-4573 (12 Volt, 130 Amp, Denso, 7 Groove Decoupler)
• Bosch Reman / Service Europe: AL3397X, AL3365X, 0986UR6449
• Lester / PIC References: Lester 11137 | PIC 290-5193AB, 290-5193E, 290-5193A
• Other Crossovers: Excel 10812, Hollander 50154, 50154B

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, B-Circuit, 4-Terminal (S-IG-L-M, L is not an output), No LRC, 14.1 Vset (Requires 1K resistor between FR and IG terminals)
• Replaces OEM: Denso 126600-3000, 126600-3230, 126600-3231, GS1M 3000, GS1M 3230, GS1M3000, GS1M3230
• Aftermarket Crossovers: IN6323, IN6300, 216-097, 26512, GNR-N062, 26514, GNR-N064, 80904465, 80904592, 80904486

⚡ Brush Holder Assembly Specs

• Replaces OEM: Denso 021620-3020, 021620-3030, 021660-0510
• Interchange Numbers: 39-8206

⚡ Drive End Bearing (Front) Specs

• Industry Number: 54700 / 6303-2RS
• Dimensions: 17mm ID x 47mm OD x 14mm W
• Interchange Numbers: 6-303-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53514 / 6202-D2RS (279)
• Dimensions: 15mm ID x 35mm OD x 13mm W
• Interchange Numbers: 10-2021-4W

⚡ Slip Ring Specs

• Dimensions (Option 1): 8.9mm ID x 14.6mm OD (Ref# 7190904A) | Interchange: 28-82853
• Dimensions (Option 2): 5.8mm ID x 14.3mm OD (Ref# 7190904B) | Interchange: 28-82854

💕 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
