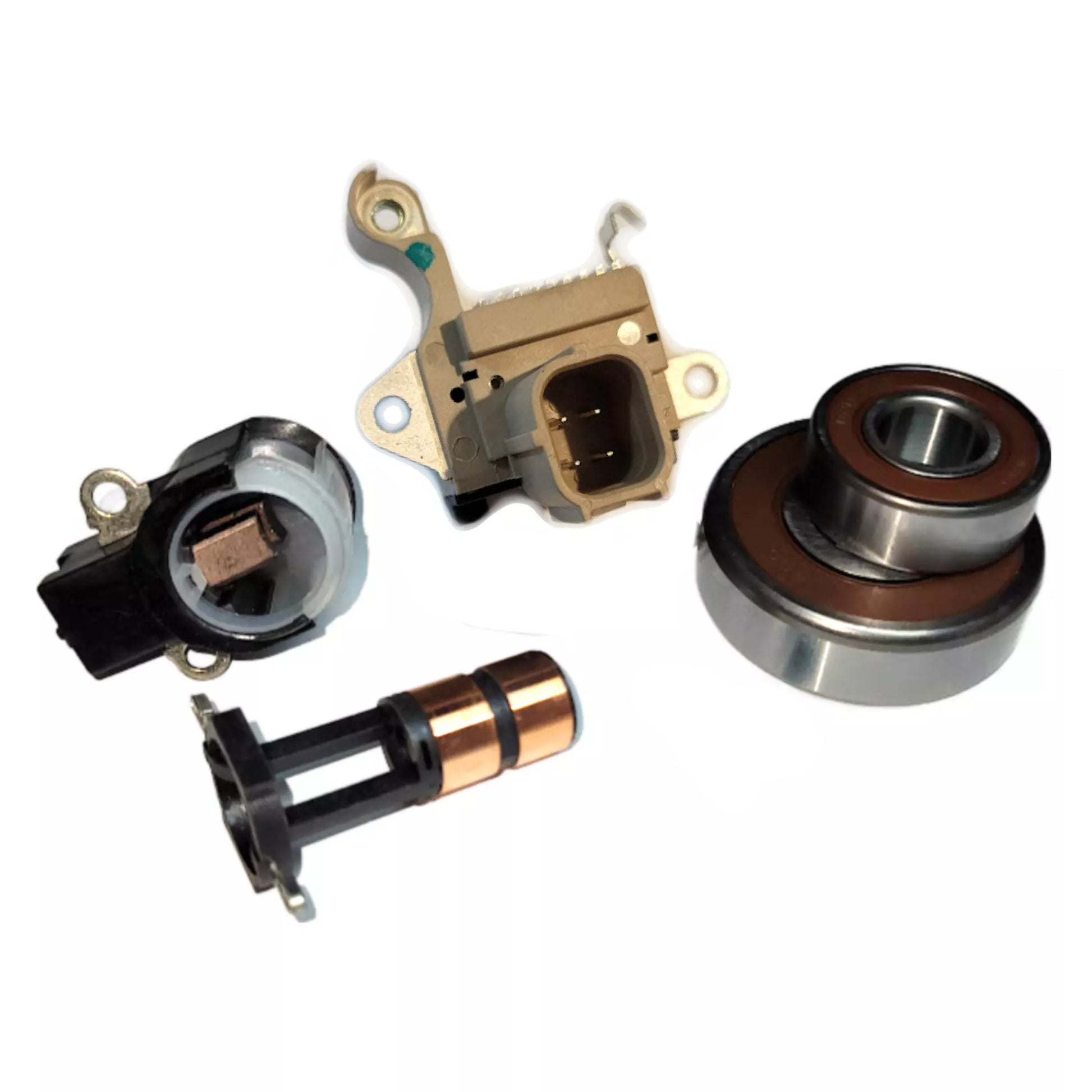

Alternator Rebuild Kit for MDX ZDX TSX TL RL Pilot Ridgeline Odyssey - 11391RK-A

Acura Car
RL V6 3.7L 3664cc 2009-2012
TL V6 3.5L 3471cc 2009-2014
TL V6 3.7L 3664cc 2009-2014
TSX V6 3.5L 3471cc 2010-2014
Acura Truck
MDX V6 3.7L 3664cc 2010-2013
ZDX V6 3.7L 3664cc 2010-2013
Honda Truck
Pilot V6 3.5L 3471cc 2009-2011
Ridgeline V6 3.5L 3471cc 2009-2011
Honda Van
Odyssey V6 3.5L 3471cc 2008-2010

• Voltage Regulator 12 Volt, B-Circuit, IG-C-L-FR Terminals. SPECS FOR: Denso Alternators, Running Volt Set 14.35V, Ignition Activated, OE Compliant C-Function, Standard Lamp Function - Without Output, Field and Lamp short circuit protection // Replaces: IN6365 / Denso: 126600-3650, GA1 3650, GA1 5330 / Other: VRH2005-149M, 8090-4501, 8090-4698, 1K-60235, T7365, W085-326, 230-52150, 216-081, 26519, ND-963 - IN6365
• Rotor SRE Bearing 53514 15mmX35mmX13mm 279, 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W
• Drive End Bearing 54700 17mmX47mmX14mm 6303-2RS, 949100-1010, 949100-2820 - 6-303-4W
• Brush Holder Assembly with Brushes replacing 021620-3020, 021620-3030, 021660-0510 - 39-8206
• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854

Alternator Manufacturer and Factory #s
Acura 31100-RGW-A01, 31100-RGW-A01RM, CSF92
Bosch Remanufactured AL1311X
Denso 104210-592, 104210-5920, TN104210-5920, 210-0750
Excel 10878
Honda 06311-RGW-505RM, 31100-RGW-A01, 31100-RGW-A01RM, CSF92
Lester 11391
JANNCO 400-52269R
Denso 210-0750
Remy Light Duty 12872
Wilson 90-29-5723
PIC Picture ID 290-5222B
Wilson 90-29-5723
