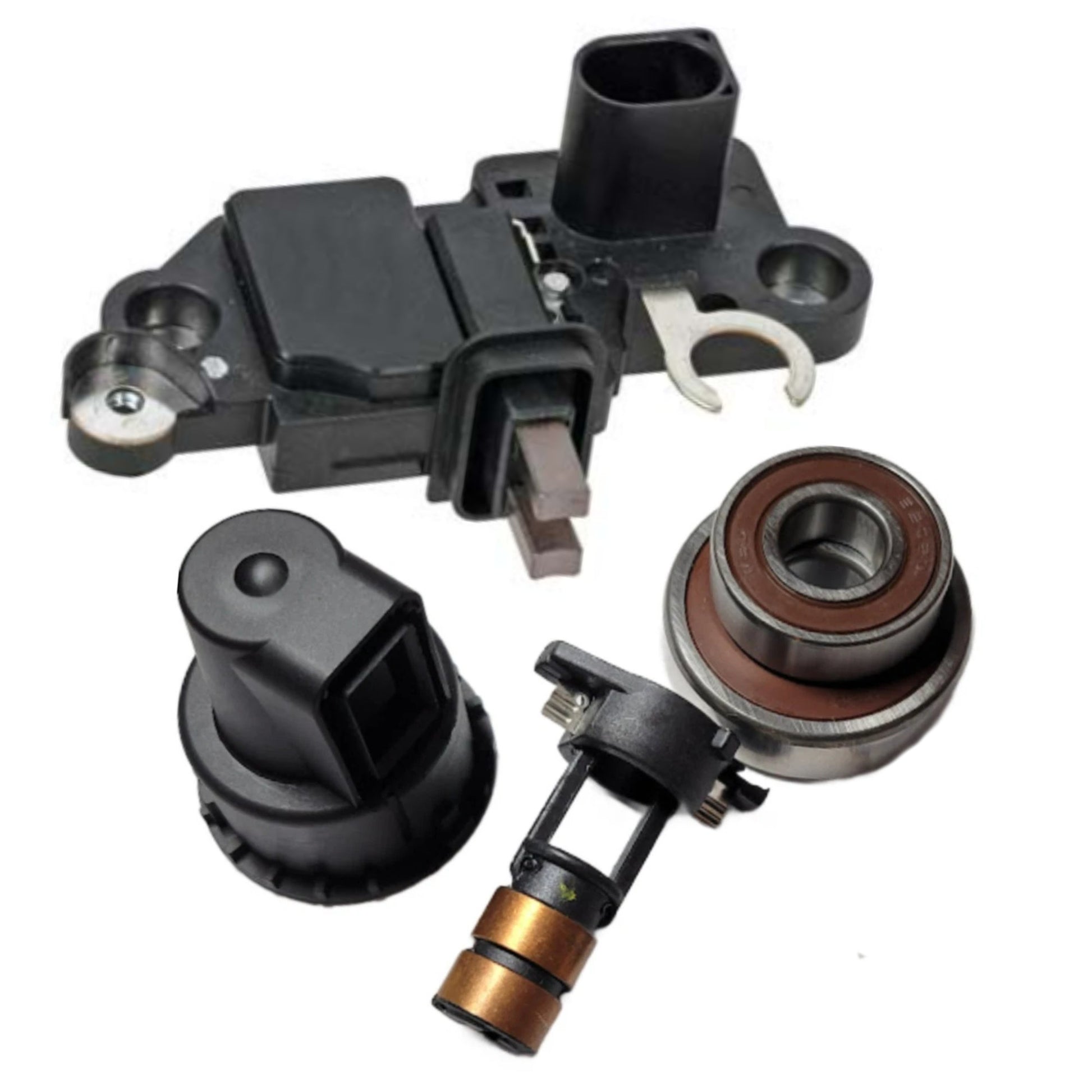

Alternator Rebuild Kit for Mercedes E320 CLK320 w/Bosch 0124515055 0124515131 - 11124RK-A

Mercedes-Benz CLK320 V6 3.2L 3199cc 2001-2002
Mercedes-Benz E320 3.2L 3199cc 2001 with plug-in Voltage Regulator (Contact us for stud type terminal regulator)
Mercedes-Benz E320 V6 3.2L 3199cc 2002-2003

• Voltage Regulator with Brushes / Specifications: 12 Volt System, A-Circuit, L-DFM Terminals, 14.3 Voltage Set Point, w/ LRC, for Bosch IR/IF Alternators, Active lamp function - with output., Without temperature compensation., Battery disconnect, shorted lamp, shorted field circuit protection, Replaces: Audi, Volkswagen 077-903-803A, BMW 12-31-7-531-386, Bosch F 00M 144 138, F 00M 144 146, F 00M 145 247, F 00M 145 331, F 00M 145 357, F 00M 145 382, Mercedes-Benz 003-154-25-06 // VRB247, 80201182, 230-24081, 230-24118, BO-930, 176-031, W080-37, 09128, 09149 - IB247

• Drive End Bearing 6303 17x47x14mm -54700 ref# F00M990410, F00M990411 - 6-303-4W

• SRE Rear Rotor Bearing 53507 17x35x10mm 6003-2RS Replacing F00M990405, F00M990405370, F00M990432 - 6-103-4N

• SlipRing 52mm L, 7.1mm ID, 16.1mm OD Replacing Bosch 1124303007, F00M143019 Other 7120202, 313-24002 - 28-91852

• Plastic Bearing Tolerance Ring, 35mm ID, 44mm OD x 50mm, Replacing Bosch F00M146900 Other, 130-07023, 92202019, w110-61 - 46-91553

Alternator Manufacturer and Factory #s
Bosch 0 124 515 055, 0 124 515 131, 0124515055, 0124515131
Bosch Remanufactured AL0788X (Bosch Style)
Excel 10770
Hollander 60800
IAT A439307
Lester 11124
Mercedes-Benz 011-154-27-02, 013-154-80-02, A011-154-27-02, A0131548002
