Alternator Rebuild Kit for Mercedes w/ 90 Amp Bosch 300 C220 C230 C280 E300 E320

**These models WITH 90 Amp Bosch 0123335002, 0123320044, 0123320045 option
If you have a Valeo or different option than listed please contact us for correct kit. Thank you!
Mercedes-Benz Car
300CE L6 3.2L 3199cc Gas 1993
300D L6 3.0L 2998cc 1987
300E L6 2.8L 2799cc Gas 1993
300E L6 3.2L 3199cc Gas 1993
300TE L6 3.2L 3199cc Gas 1993
C220 L4 2.2L 2199cc 1994-1996
C230 L4 2.3L 2295cc 1997-2000
C280 L6 2.8L 2799cc 1994-1997
C36 AMG L6 3.6L 3606cc 1995-1997
E300 L6 3.0L 2996cc Diesel 1995-1997
E320 L6 3.2L 3199cc 1994-1996

Alternator Manufacturer and Factory #s
Beck Arnley Remanufactured 186-0816
Bosch 0 123 335 002, 0 123 320 044, 0 123 320 045, 0123335002, 0123320044, 0123320045, 0123335003
Bosch Remanufactured AL0161X
Delphi RM3239, RM3303
ERA 210042, 210052
Excel 10260
Hollander 58502, 58597B, 58822, 58725
Mercedes-Benz 009-154-02-02, A0091540202, 009 154 30 02 80, 009-154-30-02, 009154300280, 010-154-47-02, 009-154-01-02, 010-154-46-02, A0091540102, A0101544602, A0101544702, 009 154 30 02, 009 154 30 02 80, 009154300280, A 009 154 30 02, A 009 154 30 02 80
J&N 400-24001
Remy Light Duty 14627
Wilson 90-15-6265
Lester 13613

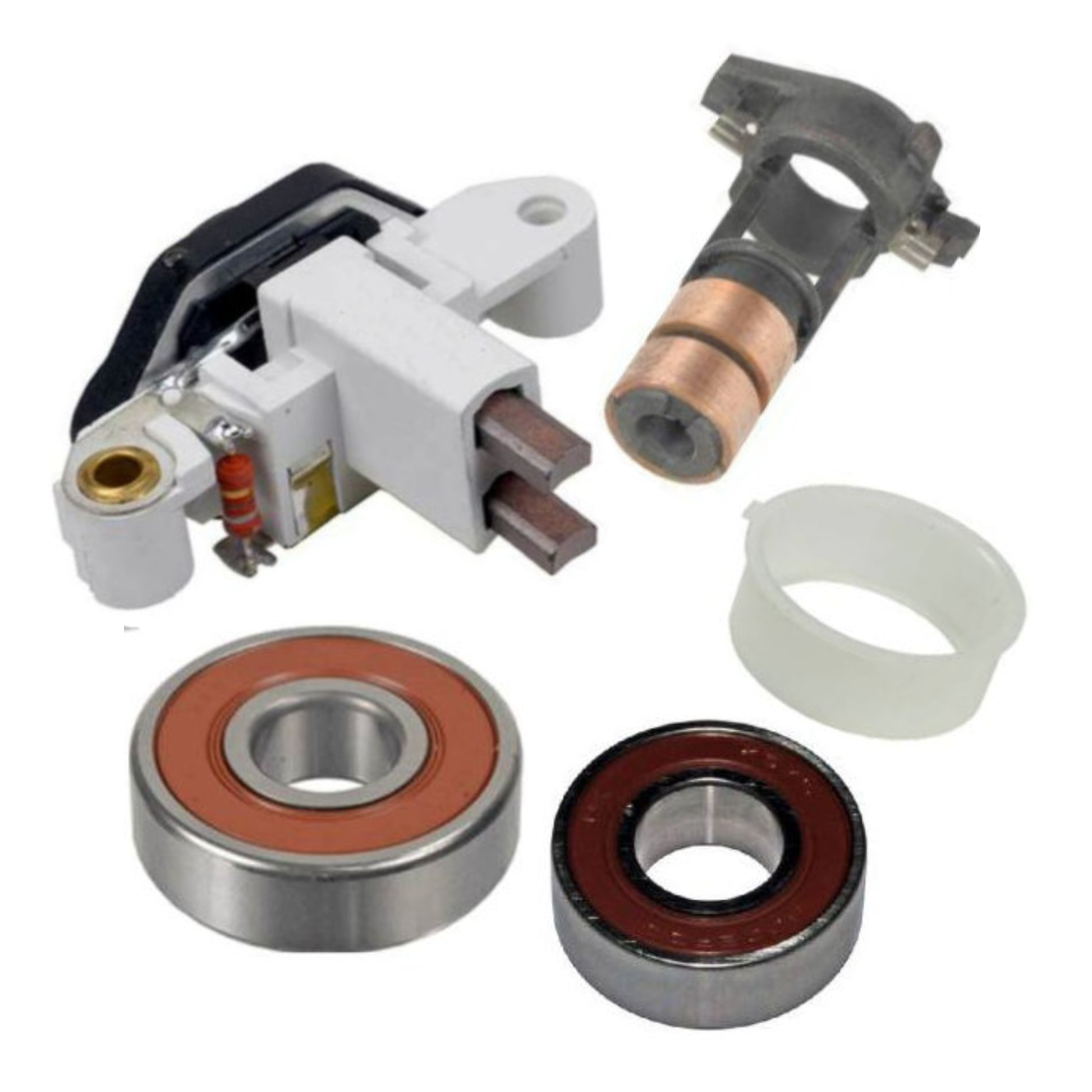

• Voltage Regulator with Brushes 14.5 Voltage Set Point, A-Circuit, 180 ohm Resistor, Replacing Bosch 1197311211, 1197311213, 1197311217, 1197311219, 1197311242, 1197311533, 1197311541, 1197311556, Other 09107, 176-0111, W080-09, BO-324, 230-24032, VRB201H, VRB261, ABO6031 - IB387

• Rotor SRE Bearing 54000 17x40x12mm 6-203-4N ref# 6203-2RS, 1120905525 - 6-203-4W

• Drive End DE Bearing 55224 17x52x17mm 10-3043-4W ref# F00M990434 - 10-3043-4W

• Slip Ring 52mm L, 7.1mm ID, 16.1mm OD Replacing Bosch 1124303007, F00M143019 Other 7120202, 313-24002 - 28-91852

• Bearing Tolerance Ring 40mm ID x 43mm OD x 16.5mm OAL Bosch Ref# 1120591076, 1120591103, W110-39 - 46-91552
