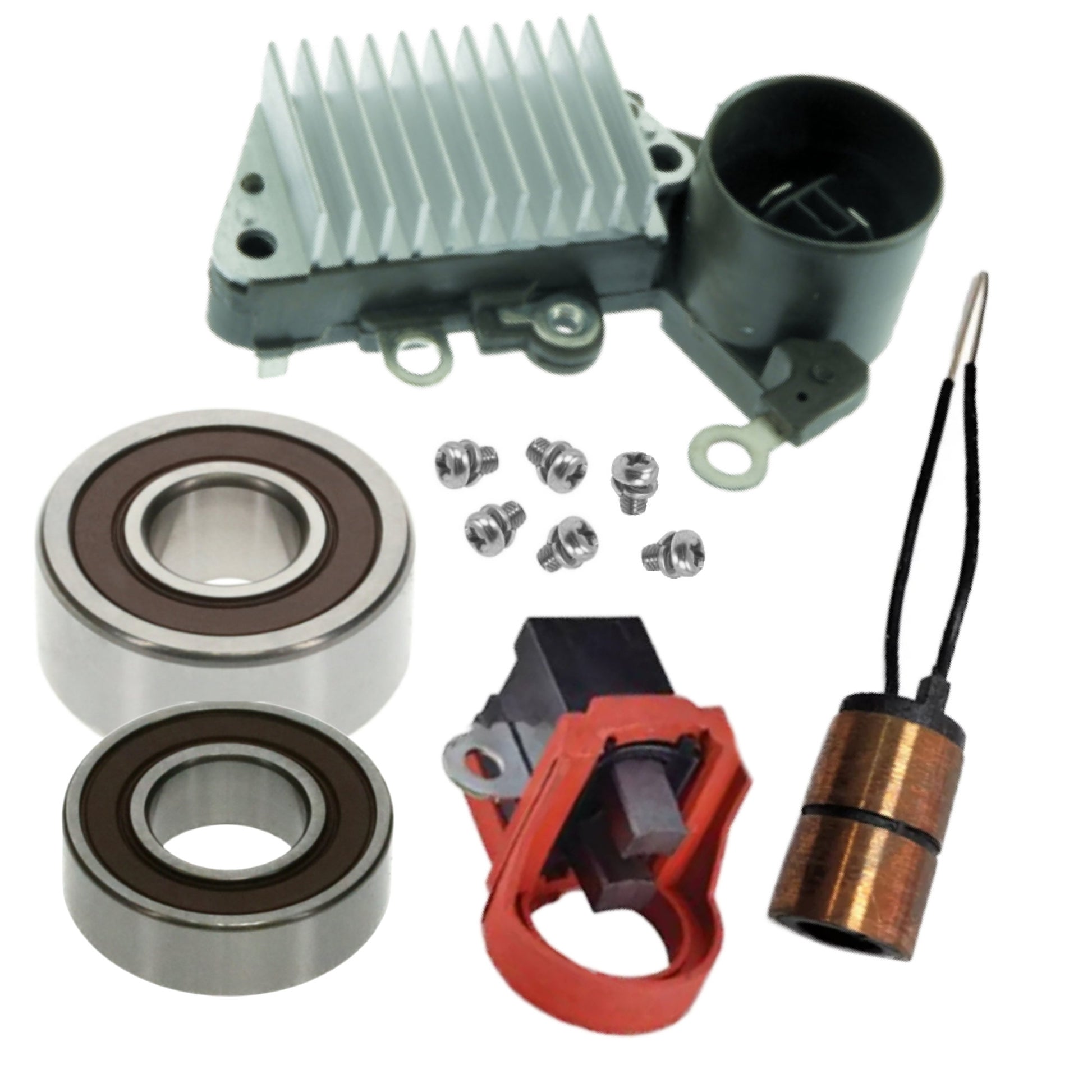

Alternator Rebuild Kit JOHN DEERE TRACTOR 5410 5420 5510 5520 5615 101211-1131 - 12353RK-A

For these applications with 40 Amp Denso #s 101211-1130, 101211-1131 Option
John Deere 2-Wheel Drive Tractor
5415 4045 , 4.5L John Deere Diesel 1997-2007
5415H 4045 , 4.5L John Deere Diesel 1997-2007
5420N 4045 , 4.5L John Deere Diesel 1994-2007
5510N 4045 , 4.5L John Deere Diesel 1994-2007
5520N 4045 , 4.5L John Deere Diesel 1997-2007
5615 4045 , 4.5L John Deere Diesel 2003-2009
5715 4045 , 4.5L John Deere Diesel 2001-2009
5715HC 4045 , 4.5L John Deere Diesel 2001-2009
John Deere 4-Wheel Drive Tractor
5515 4045 , 4.5L John Deere Diesel 1997-2007
John Deere Agricultural Tractor
5410 4 Cyl. 4.52L 4483cc 273cid 1998-2000
5415 Narrow 4045 , 4.5L John Deere Diesel 1997-2007
5420 4 Cyl. 4.52L 4483cc 273cid 2001-2004
5510 4 Cyl. 4.52L 4483cc 273cid 1998-2000
5515F&V 4045 , 4.5L John Deere Diesel 1997-2007
5520 4 Cyl. 4.52L 4483cc 273cid 2001-2004
5615F&V 4045 , 4.5L John Deere Diesel 2003-2009
John Deere Cotton Picker
CS690 4045 , 4.5L John Deere Diesel 1997-2007

Alternator's Manufacturer and Factory #s
Denso 101211-1130, 101211-1131
John Deere RE70268, RE72916, RE729161, TY25240
Lester 12353
PIC Picture ID 290-401
Wilson 90-29-5423
J&N 400-52174

• Voltage Regulator A-Circuit, D-IG-L Terminals, 14.5 Voltage Set ref# Denso 126000-0850, 126000-0880, 126000-1370, GM 94455160, Isuzu 8-94455-160-0 Other 230-52024, VRH2005-24, W085-23, 216-022 - IN251

• SRE Rotor Bearing 15x32x11mm Ref# W6002-2RS, 53207, 949100-2940, 949100-3170, 949100-3660, 949100-3670 6-3102-4W

• Drive End DE Bearing 15x38x19mm Ref# 348, 53814, 949100-3480, 949100-3481 - 10-2022-4W

• Brush Holder Assembly with seal Ref# 021620-2010, 021620-2180, 021620-2200, 021620-2201, 021620-2630, 021620-2750 - 39-8200

• Slip Ring 8.9 ID 14.6 OD 23.9 Length 7190904A, 28-82853

• Attaching Screw x3, Rectifier Brush Holder Screw M4 x 0.7 x 5.7mm L for Denso 949006-5460, 949007-3370, 949007-3930, 949007-6280 - 96909016, 85-1205 x3
