Alternator Rebuild Kit Kubota Mower Utility Tractor V1505 w/101211-8770, -8771, -8772, -8773 - 12534RK-A

Kubota 4-Wheel Drive Tractor
B2650HSD L4 1.5L 91cid Kubota V1505 2010-2013
B2650HSD L4 1.5L 91cid V1505 2010-2013
B2650HSDC L4 1.3L 81cid Kubota D1305 2013-2024
B2650HSDC L4 1.5L 91cid Kubota V1505 2010-2013
B2650HSDC L4 1.5L 91cid V1505 2010-2024
B3000HSDC L4 1.5L 91cid Kubota V1505 2010-2013
B3000HSDC L4 1.5L 91cid V1505 2010-2013
B3030HSDC L4 1.5L 91cid Kubota V1505 2010-2013
B3030HSDC L4 1.5L 91cid V1505 2010-2013
B3350HSD L4 1.5L 91cid Kubota V1505 2013-2024
B3350HSD L4 1.5L 91cid V1505 2013-2024
B3350HSDC L4 1.5L 91cid Kubota V1505 2013-2019
B3350HSDC L4 1.5L 91cid V1505 2013-2019
B3350SUHSD L4 1.5L 91cid Kubota V1505 2013-2024
B3350SUHSD L4 1.5L 91cid V1505 2013-2024
LX2610HSDCC L4 1.3L 81cid D1305 2019-2025
LX2610HSDCC L4 1.3L 81cid Kubota D1305 2019-2025
LX3310HSD L4 1.5L 91cid Kubota V1505 2019-2025
LX3310HSD L4 1.5L 91cid V1505 2019-2025
LX3310HSDCC L4 1.5L 91cid Kubota V1505 2019-2025
LX3310HSDCC L4 1.5L 91cid V1505 2019-2025
Kubota Commercial Zero-Turn Mower
ZD1511LF L4 1.5L 91cid Kubota V1505 2017-2025
ZD1511LF L4 1.5L 91cid V1505 2017-2025
ZD1511RL L4 1.5L 91cid Kubota V1505 2017-2025
ZD1511RL L4 1.5L 91cid V1505 2017-2025
ZD1511RLF L4 1.5L 91cid Kubota V1505 2017-2025
ZD1511RLF L4 1.5L 91cid V1505 2017-2025
Kubota Compact Utility Tractor
B3000HSDCC L4 1.5L 91cid Kubota V1505 2010-2013
B3000HSDCC L4 1.5L 91cid V1505 2010-2013
B3030HSDCC L4 1.5L 91cid Kubota V1505 2010-2013
B3030HSDCC L4 1.5L 91cid V1505 2010-2013
Kubota Riding Rotary Turf Mower
F3990 L4 1.5L 91cid Kubota V1505 2014-2020
F3990 L4 1.5L 91cid V1505 2014-2020
Kubota Utility Vehicle
RTV-X1120 Deluxe 1123cc 2018-2023
RTV-X1120D 1123cc 2014-2017
RTV-X1140 1123cc 2016-2018
RTV-X1140 Worksite 1123cc 2019-2024
RTV-X900 General Purpose 898cc 2014-2023
RTV-X900 Worksite 898cc 2014-2023
RTV1140CPX 1123cc 2011-2016
RTV900 898cc Kubota D902E-UV 21.6 HP Dsl. 2004-2011
Kubota Zero-Turn Mower
ZD1511LF-3 L4 1.5L 91cid Kubota V1505 2017-2025
ZD1511LF-3 L4 1.5L 91cid V1505 2017-2025
ZD1511RL-3 L4 1.5L 91cid Kubota V1505 2017-2025
ZD1511RL-3 L4 1.5L 91cid V1505 2017-2025
ZD1511RLF-3 L4 1.5L 91cid Kubota V1505 2017-2025
ZD1511RLF-3 L4 1.5L 91cid V1505 2017-2025

Alternator Manufacturer and Factory #s
Denso 101211-8770, 101211-8771, 101211-8772, 101211-8773
Kubota K7561-61910, K7561-61911, K7561-61912, K7561-61913, K7561-61914, K7561-61920
Lester 12534
PIC# 290-5169
J&N 400-52121R
Wilson 70-29-12534, 90-29-5529

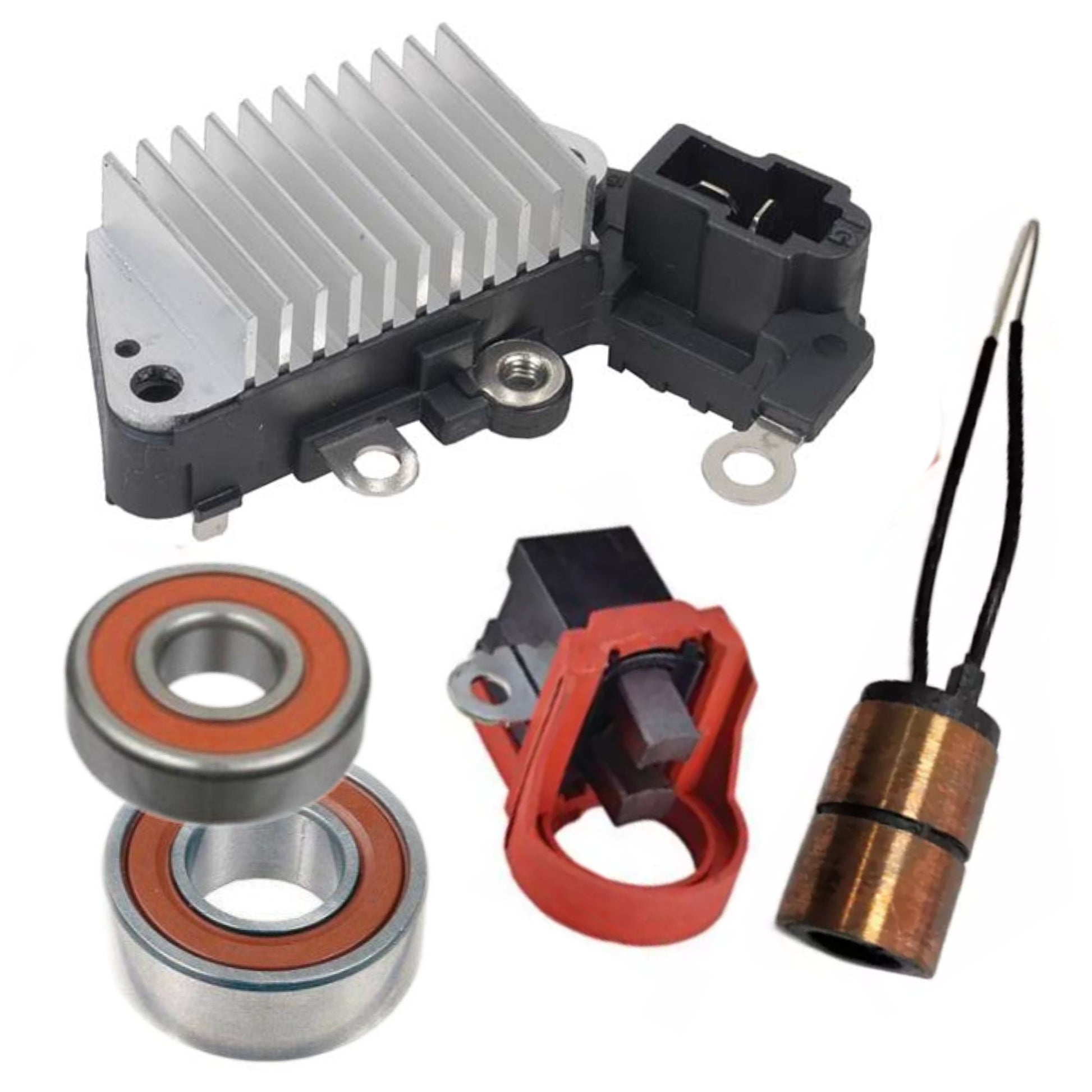

• Voltage Regulator - Specifications: A-Circuit, IG-L, L TERMINAL, 14.6 Volt Set Point, 57.5mm Center to Center Mounting Holes L Terminal Drives Choke // Replaces: Daihatsu Motor Co 27700-87209-000, Denso 126000-0970, 126000-0971, 126000-0990, 126000-1380, 126000-278, 126000-2780, 126000-2781, Iseki 6281-271-002-0, Mitsubishi Motors MD604751, Other 230-52025, VRH2005-15, MFVR01890, W085-121, 216-008, GNR-N002, VR0570, 80904444, 80904405 - IN255

• Slip Ring 8.9 ID 14.6 OD 23.9 Length 7190904A, 313-52001, 14520W, 213-500, ND-492 - 28-82853

• EMQ Bearing SRE 53207 15x32x11mm W6002-2RS, 949100-2940, 949100-3170, 949100-3660, 949100-3670 - 6-3102-4W

• EMQ Bearing Drive End 53500 15x35x11mm 6202-2RS, Replacing 949100-0070, 949100-0160, 949100-0330, 949100-0340, 949100-2950, 949100-2951, 949100-3160, 949100-3161, 949100-3630, 949100-3730, 949100-3731 - 6-202-4N

• Brush Holder Assembly Ref# 021620-2010, 021620-2180, 021620-2200, 021620-2201, 021620-2630, 021620-2750, 39-8200
