• Alternator Rebuild Kit Massey Ferguson 1220 Iseki 3-69 Diesel Denso 100211-4450, Iseki 6281-200-005-0, 6281-200-005-4, Ishikawajima 18504-64301993-1999
1 1

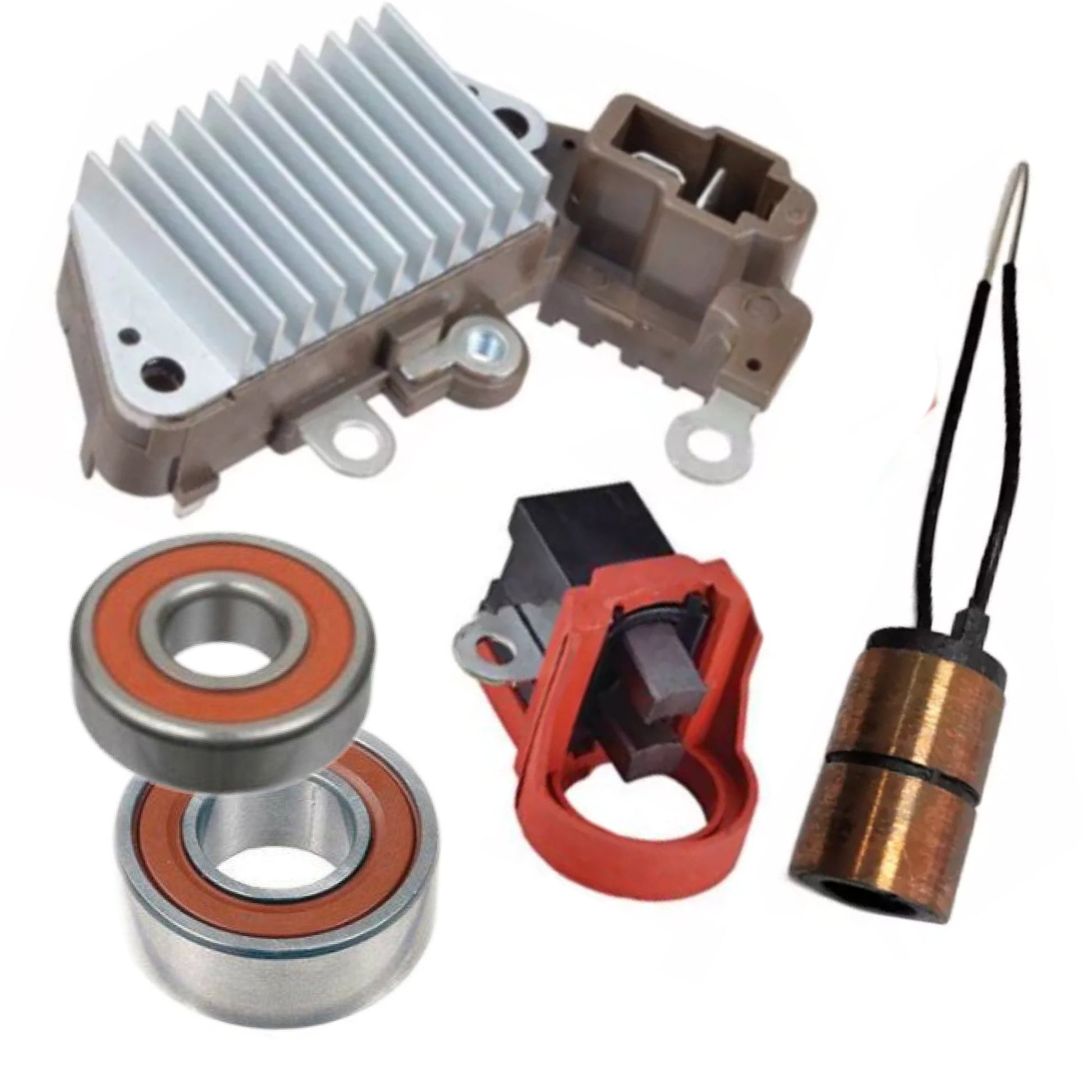

Alternator Rebuild Kit Massey Ferguson 1220 Iseki 3-69 Dsl 1993-99 - 12271RK-A

Alternator Rebuild Kit Massey Ferguson 1220 Iseki 3-69 Dsl 1993-99 - 12271RK-A

12271RK-A

$44.98 USD
$44.98 USD
$44.98 each
Sale Sold out
Shipping calculated at checkout.
  • Fast Shipping
  • 30 Day Money Back Guarantee
  • 1 Year Warranty
View full details

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

  • Massey Ferguson Agricultural Tractor:
    • MF-1220 Iseki Isekinouki 3-69 Diesel (1993-1999)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

  • Denso OE: 100211-4450
  • ERA OE: 210657
  • Iseki OE: 6281-200-005-0, 6281-200-005-4
  • Ishikawajima OE: 18504-6430
  • Lester / Other References: 12271, Wilson 90-29-5440

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

  • Technical Specifications: 12 Volt, A-Circuit, Low Side Drive Regulator, IG-L Terminals, 14.5 Voltage Set Point
  • Replaces OEM: Denso 126000-0600, 126000-0760, 126000-1160
  • Aftermarket Crossovers: 216-010, KO-162, 230-52027, VRH2005-39, AND6034, IN254

⚡ Slip Ring Specs

  • Dimensions: 8.9mm ID x 14.6mm OD x 23.9mm Length
  • Interchange Numbers: 7190904A, 313-52001, 14520W, 213-500, ND-492, 28-82853

⚡ Brush Holder Assembly with Brushes Specs

  • Replaces OEM / References: 021620-2010, 021620-2180, 021620-2200, 021620-2201, 021620-2630, 021620-2750
  • Interchange Numbers: 39-8200

⚡ Drive End Bearing (Front) Specs

  • Industry Number: 6202-2RS
  • Dimensions: 15mm ID x 35mm OD x 11mm W
  • Replaces OEM: Denso 949100-0070, 949100-0160, 949100-0330, 949100-0340, 949100-2951, 949100-3161, 949100-3731
  • Interchange Numbers: 207-004, 6-202-4N

⚡ Rotor SRE Bearing (Rear) Specs

  • Industry Number: 53207
  • Dimensions: 15mm ID x 32mm OD x 11mm W
  • Replaces OEM: Denso 949100-3170, 949100-3230, 949100-3650, 949100-3660, 949100-3670
  • Interchange Numbers: 217-020, 6-3102-4W

💖 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
