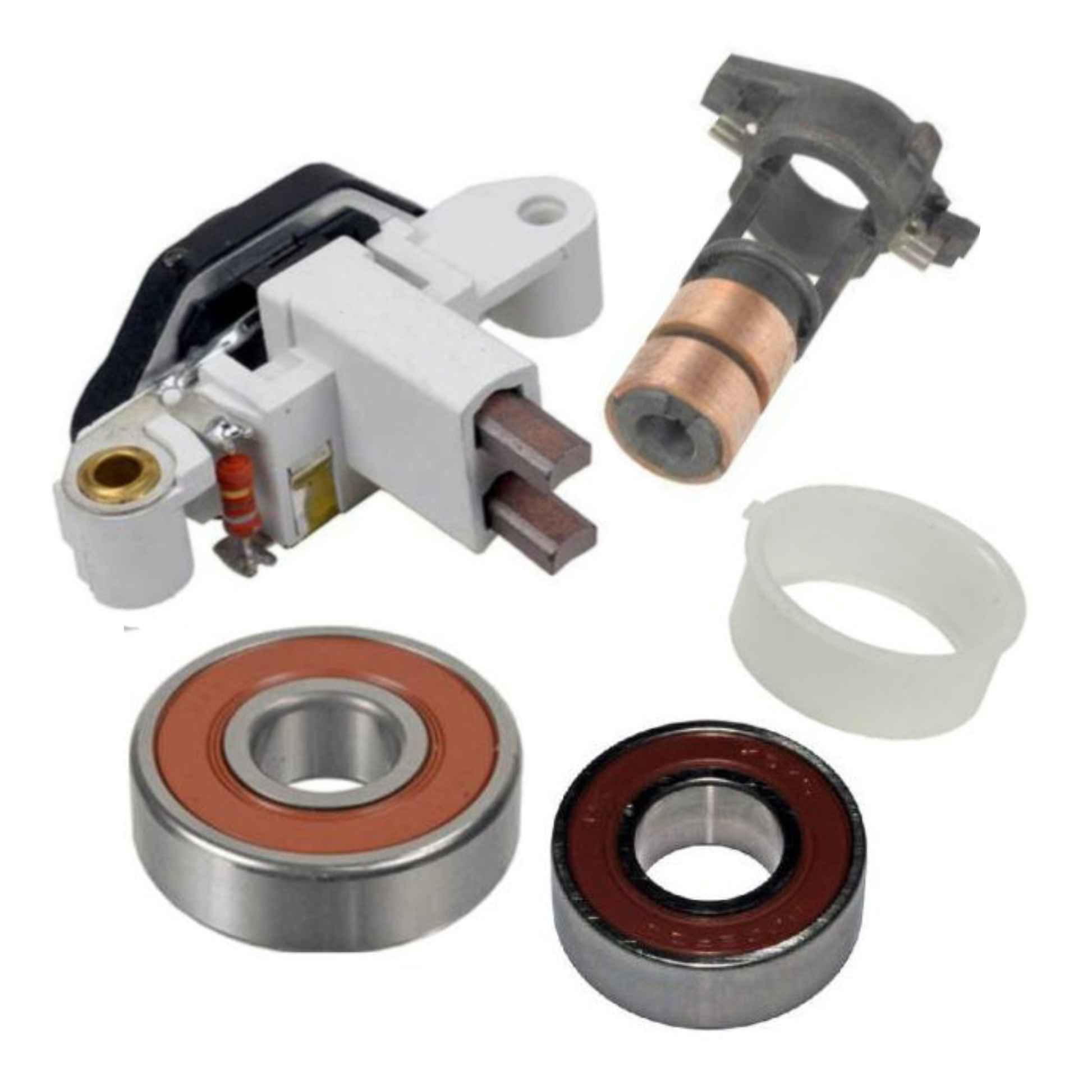

Alternator Rebuild Kit Mercedes E430 S420 S500... 150A Bosch 0123520006 -007 -008 - 13779RK-A

This is for the 150 Amp Bosch Option with Terminal connection (not plug) from the harness. The other options on these models may have different parts for repairing. Please contact us if your option is not a match to this 150 Amp Bosch 0123520006, 0123520007, or 0123520008. Thank you!
Mercedes-Benz Car
C43 AMG V8 4.3L 4266cc 1998-2000
CL500 V8 5.0L 4973cc 1997-1998
CL55 AMG V8 5.5L 5439cc 2001-2002
CL600 V12 6.0L 5987cc 1998-1999
CLK430 V8 4.3L 4266cc 1999-2001
CLK55 AMG V8 5.5L 5439cc 2001-2003
E430 V8 4.3L 4266cc 1998-2001
E55 AMG V8 5.5L 5439cc 1999-2001
S420 V8 4.2L 4196cc 1994-1999
S500 V8 5.0L 4973cc 1994-1999
S55 AMG V8 5.5L 5439cc 2001-2002
SL500 V8 5.0L 4973cc 1994-2002
SL600 V12 6.0L 5987cc 1996-2002

• Voltage Regulator with Brushes 14.5 Voltage Set Point, A-Circuit, 180 ohm Resistor, Replacing Bosch 1197311211, 1197311213, 1197311217, 1197311219, 1197311242, 1197311533, 1197311541, 1197311556, Other 09107, 176-0111, W080-09, BO-324, 230-24032, VRB201H, VRB261, ABO6031 - IB387

• Rotor SRE Bearing 54000 17x40x12mm 6-203-4N ref# 6203-2RS, 1120905525 - 6-203-4W

• Drive End DE Bearing 55224 17x52x17mm 10-3043-4W ref# F00M990434 - 10-3043-4W

• Slip Ring 52mm L, 7.1mm ID, 16.1mm OD Replacing Bosch 1124303007, F00M143019 Other 7120202, 313-24002 - 28-91852

• Bearing Tolerance Ring 40mm ID x 43mm OD x 16.5mm OAL Bosch Ref# 1120591076, 1120591103, W110-39 - 46-91552

Alternator Manufacturer and Factory #s
Beck Arnley Remanufactured 186-0933
Bosch 0 123 520 006, 0 123 520 007, 0 123 520 008, 0123520006, 0123520007, 0123520008, 0123510021,
Bosch Remanufactured AL0766X
Delphi RM3309, RM3236
Excel 10525
Hollander 58821,58552
Mercedes-Benz 010-154-29-02, A0101542902, 010-154-68-02, A0101546802, 010-154-71-02, A0101547102
Lester 13779
