Alternator Rebuild Kit Sienna Highlander Venza ES350 RX350 3.5L - 11326RK-A

Lexus ES350 V6 3.5L 3456cc 2013
Lexus ES350 V6 3.5L 3456cc 2016-2018
Lexus RX350 V6 3.5L 3456cc 2010-2013
Toyota Highlander V6 3.5L 3456cc 2011-2016
Toyota Venza V6 3.5L 3456cc 2009-2015
Toyota Sienna V6 3.5L 3456cc 2007-2016

This 150 Amp Alternator's Manufacturer and Factory #s
Bosch Remanufactured AL3364X
Denso 104210-5510, 104210-5511, 104210-5512, 104211-8030
Excel 10995
Lester 11326
Lexus 27060-0P210, 27060-0P240, 27060-0P241, 27060-0P241-84, 27060-31330
Toyota 27060-0P210, 27060-0P240, 27060-0P241, 27060-0P241-84
J&N 400-52491
Remy Light Duty 12865
Wilson 90-29-5705

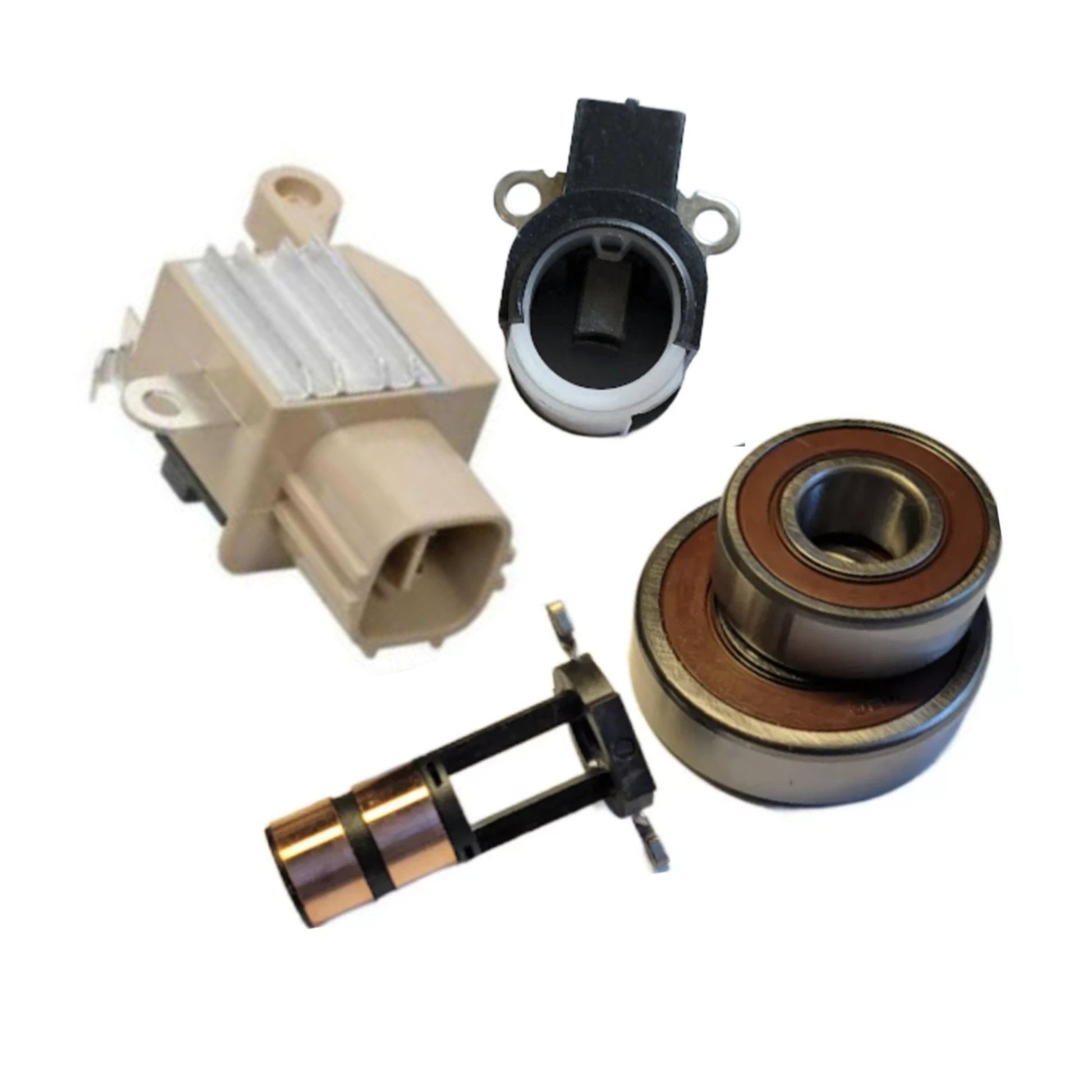

• Voltage Regulator B-Circuit, IG-S-L-M(FR) Terminals, 14.1 Voltage set point, Replacing Denso 126600-3010, 126600-3040, 126600-3360, 126600-3361, 126600-3390, 126600-3391, 126600-4340, 3040, GS2M3361, Original Reference Number GS2M3010, GS2M3040, GS3M3390, Toyota 27700-20090, 27700-20100 Other: 80904446, 80904476, 80904452, 80904593, 230-52164, 230-52113, T7301 - 216-065, 26511, IN6301

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854

• Drive End Bearing 54700 17x47x14mm Ref# 6303-2RS, 949100-1010, 949100-2820 - 6-303-4W

• SRE Rotor Bearing 53514 15x35x13mm Ref# 279, 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Brush Holder Assembly with Brushes Ref# 021620-3020, 021620-3030, 021620-3040 - 39-8206
